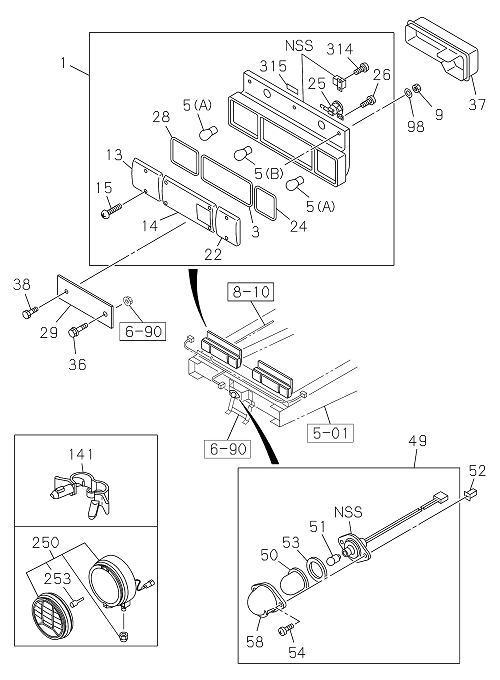

8-03 | LAMP; REAR AND REAR SIDE
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 029 | I8-97696 386-A | BRACKET; LICENSE PLATE | 2 | 2302- | FVZ-N | |||
| 005 | I8-98352 095-0 | BULB; RR COMB LAMP | 1 | 2302- | FVZ-N | (B) 24V 21/5W | ||
| 036 | I0-28650 825-0 | BOLT; DUCT | 2 | 2302- | FVZ-N | M8X25 FLANGE | ||
| 005 | I8-98352 094-0 | BULB; RR COMB LAMP | 2 | 2302- | FVZ-N | (A) 24V 21W | ||
| 022 | I8-98352 178-0 | LENS; BACKUP,RR COMB LAMP | 1 | 2302- | FVZ-N | |||
| 001 | I6-41210 322-0 | LAMP ASM; RR COMB | 1 | 2302- | R | FVZ-N | (IADG) | |
| 026 | I8-98352 176-0 | SCREW; BACK HORN | 1 | 2302- | R | FVZ-N | ||
| 049 | I7-41410 325-A | LAMP; LICENSE PLATE | 1 | 2302- | FVZ-N | |||
| 024 | I8-94257 506-0 | GASKET; BACK,LAMP | 1 | 2302- | FVZ-N | |||
| 003 | I8-94257 505-0 | GASKET; RR COMB LAMP | 1 | 2302- | FVZ-N | |||
| 037 | I8-97520 137-A | COVER; RR COMB LAMP | 1 | 2302- | R | FVZ-N | ||
| 009 | I0-91110 506-0 | NUT; BATTERY CABLE | 2 | 2302- | FVZ-N | M6 | ||
| 314 | I8-98352 177-0 | SCREW; CONNECTOR | 1 | 2302- | FVZ-N | |||
| 037 | I8-97520 138-A | COVER; RR COMB LAMP | 1 | 2302- | L | FVZ-N | ||
| 051 | I8-98381 989-0 | BULB; LICENSE PLATE LAMP | 1 | 2302- | FVZ-N | 24V 12W | ||
| 028 | I8-94257 507-0 | GASKET; TURN,LAMP | 1 | 2302- | FVZ-N | |||
| 052 | I8-94275 946-0 | GROMMET; SCREW,LICENSE PLATE LAMP | 2 | 2302- | FVZ-N | D=7.8X7.8 L=18 M5 BLACK | ||
| 315 | I8-98352 174-0 | LABEL; RR COMB LAMP | 1 | 2302- | FVZ-N | |||
| 001 | I7-41210 323-A | LAMP ASM; RR COMB | 1 | 2302- | L | FVZ-N | ||
| 058 | I8-98381 993-0 | COVER; LICENSE PLATE LAMP | 1 | 2302- | FVZ-N | |||
| 014 | I8-98352 180-0 | LENS; TAIL & STOP,RR COMB LAMP | 1 | 2302- | FVZ-N | |||
| 013 | I8-98352 179-0 | LENS; TURN SIGNAL | 1 | 2302- | FVZ-N | |||
| 025 | I8-98352 098-0 | HORN ASM; BACK | 1 | 2302- | R | FVZ-N | ||
| 098 | I0-91610 706-0 | WASHER | 2 | 2302- | FVZ-N | ID=6.4 OD=18 | ||
| 054 | I8-98381 988-0 | SCREW; LICENSE PLATE LAMP | 2 | 2302- | FVZ-N | |||
| 141 | I1-09709 290-0 | CLIP; LICENSE & BODY HARNESS | 3 | 2302- | FVZ-N | ID=13-18 L=14.5 | ||
| 001 | I6-41210 323-0 | LAMP ASM; RR COMB | 1 | 2302- | L | FVZ-N | (IADG) | |
| 050 | I8-98381 992-0 | LENS; LICENSE PLATE LAMP | 1 | 2302- | FVZ-N | |||
| 015 | I0-71190 420-0 | SCREW; RR COMB LAMP | 8 | 2302- | FVZ-N | M4X20 TAPPING STAINLESS | ||
| 038 | I7-04506 016-A | BOLT; LAMP,RR COMB | 2 | 2302- | FVZ-N | M6X30 W/LK&PL WASHER | ||
| 001 | I7-41210 322-A | LAMP ASM; RR COMB | 1 | 2302- | R | FVZ-N | ||
| 053 | I8-98381 990-0 | GASKET; LICENSE LAMP | 1 | 2302- | FVZ-N |
