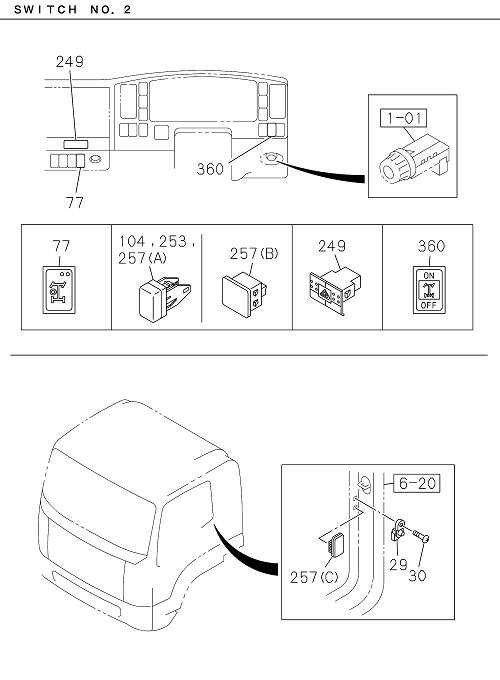

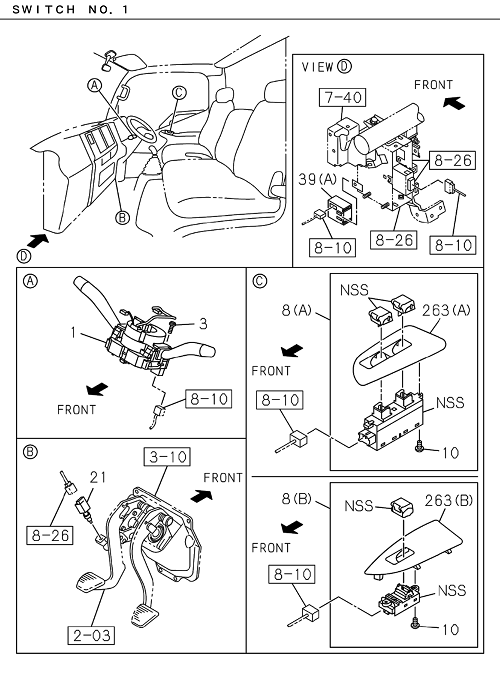

8-25 | SWITCH AND RELAY; INSTRUMENT PANEL
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 263 | I8-98153 841-0 | COVER; SW | 1 | 2302- | FVZ-N | (B) PASSENGER SIDE | ||

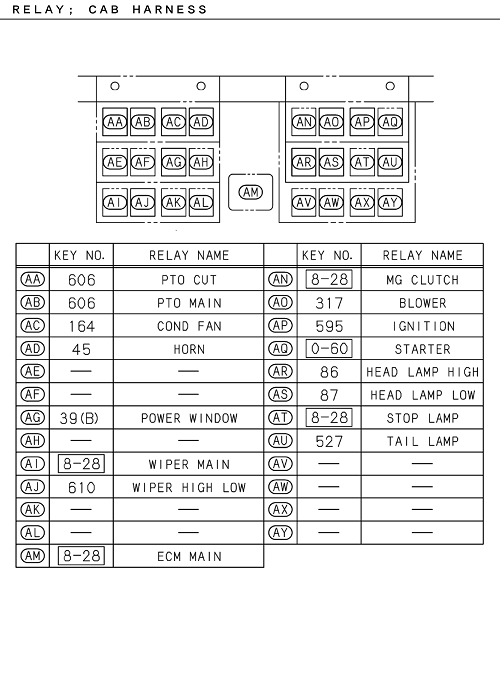

| 039 | I8-97173 035-1 | RELAY; HORN | 1 | 2302- | FVZ-N | |||
| 104 | I8-98025 954-1 | COVER; SW | 1 | 2302- | FVZ-N | |||
| 021 | I8-94337 761-0 | SWITCH; CLU | 1 | 2302- | FVZ-N | TRANSMISSION SIDE PTO | ||
| 610 | I6-97173 035-0 | RELAY; HORN | 1 | 2302- | FVZ-N | (IADG) 24V 10A PANASONIC | ||
| 008 | I8-98316 415-0 | SWITCH; POWER WINDOW | 1 | 2302- | FVZ-N | (B) PASSENGER SIDE | ||
| 527 | I8-97173 035-1 | RELAY; HORN | 1 | 2302- | FVZ-N | 24V 10A PANASONIC | ||
| 087 | I8-97173 035-1 | RELAY; HORN | 1 | 2302- | FVZ-N | 24V 10A PANASONIC | ||
| 595 | I8-97173 035-1 | RELAY; HORN | 1 | 2302- | FVZ-N | 24V 10A PANASONIC | ||
| 164 | I8-97173 035-1 | RELAY; HORN | 1 | 2302- | FVZ-N | |||
| 263 | I8-98153 836-0 | COVER; SW | 1 | 2302- | FVZ-N | (A) DRIVER SIDE | ||
| 086 | I6-97173 035-0 | RELAY; HORN | 1 | 2302- | FVZ-N | (IADG) 24V 10A PANASONIC | ||
| 045 | I8-97173 035-1 | RELAY; HORN | 1 | 2302- | FVZ-N | 24V 10A PANASONIC | ||
| 087 | I6-97173 035-0 | RELAY; HORN | 1 | 2302- | FVZ-N | (IADG) 24V 10A PANASONIC | ||
| 029 | I8-98022 211-0 | SWITCH; DOOR | 1 | 2302- | FVZ-N | BLACK | ||
| 039 | I6-97173 035-0 | RELAY; HORN | 1 | 2302- | FVZ-N | (IADG) | ||
| 317 | I8-97173 035-1 | RELAY; HORN | 1 | 2302- | FVZ-N | 24V 10A PANASONIC | ||
| 527 | I6-97173 035-0 | RELAY; HORN | 1 | 2302- | FVZ-N | (IADG) 24V 10A PANASONIC | ||
| 164 | I6-97173 035-0 | RELAY; HORN | 1 | 2302- | FVZ-N | (IADG) | ||
| 001 | I8-98243 704-0 | SWITCH; COMB | 1 | 2302- | FVZ-N | |||
| 253 | I8-98025 954-1 | COVER; SW | 2 | 2302- | FVZ-N | |||
| 257 | I8-98029 917-0 | COVER; HOLE,SW | 1 | 2302- | FVZ-N | (C) | ||
| 010 | I8-98153 865-0 | SCREW; POWER WINDOW SW | 3 | 2302- | FVZ-N | |||
| 317 | I6-97173 035-0 | RELAY; HORN | 1 | 2302- | FVZ-N | (IADG) 24V 10A PANASONIC | ||
| 045 | I6-97173 035-0 | RELAY; HORN | 1 | 2302- | FVZ-N | (IADG) 24V 10A PANASONIC | ||
| 606 | I6-97173 035-0 | RELAY; HORN | 2 | 2302- | FVZ-N | (IADG) 24V 10A PANASONIC | ||
| 249 | I8-97948 258-0 | SWITCH; HAZARD | 1 | 2302- | FVZ-N | |||
| 008 | I8-98298 750-0 | SWITCH; POWER WINDOW | 1 | 2302- | FVZ-N | (A) DRIVER SIDE | ||
| 360 | I8-97948 269-1 | SWITCH ASM; DIFF LK | 1 | 2302- | FVZ-N | |||
| 606 | I8-97173 035-1 | RELAY; HORN | 2 | 2302- | FVZ-N | 24V 10A PANASONIC | ||
| 257 | I8-98029 914-1 | COVER; HOLE,SW | 1 | 2302- | FVZ-N | (B) | ||
| 257 | I8-98025 954-1 | COVER; SW | 2 | 2302- | FVZ-N | (A) | ||
| 030 | I8-98047 201-0 | SCREW; DOOR SW | 1 | 2302- | FVZ-N | M5X18 | ||
| 086 | I8-97173 035-1 | RELAY; HORN | 1 | 2302- | FVZ-N | 24V 10A PANASONIC | ||
| 257 | I8-98025 954-1 | COVER; SW | 7 | 2302- | FVZ-N | (A) | ||
| 077 | I8-97615 488-2 | SWITCH; PTO | 1 | 2302- | FVZ-N | |||
| 610 | I8-97173 035-1 | RELAY; HORN | 1 | 2302- | FVZ-N | 24V 10A PANASONIC | ||
| 595 | I6-97173 035-0 | RELAY; HORN | 1 | 2302- | FVZ-N | (IADG) 24V 10A PANASONIC | ||
| 039 | I8-98060 789-1 | RELAY; DOOR LK | 1 | 2302- | FVZ-N | (A) 24V 9A | ||
| 003 | I8-98061 743-0 | SCREW; COMB SW | 2 | 2302- | FVZ-N | M5X20 W/PL WASHER&HEXALOBULAR |
