8-28 | CHASSIS ELECTRICAL
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

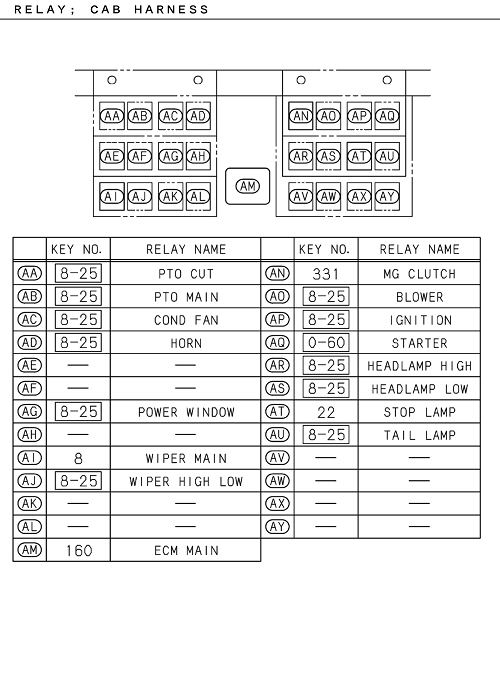

| 160 | I8-97833 987-0 | RELAY; ECM | 1 | 2302- | FVZ-N | 24V 30A MITSUBA | ||
| 050 | I8-97613 300-2 | BRACKET; HORN | 1 | 2302- | FVZ-N | |||
| 001 | I8-98025 533-A | UNIT; FLASHER | 1 | 2302- | FVZ-N | |||
| 034 | I8-98179 708-0 | CONNECTOR; UNION | 1 | 2302- | FVZ-N | (A) DIN8X2 & PT1/4 DOUBLE ELBOW | ||
| 573 | I8-98246 458-0 | BRACKET; FLASHER UNIT | 1 | 2302- | FVZ-N | |||

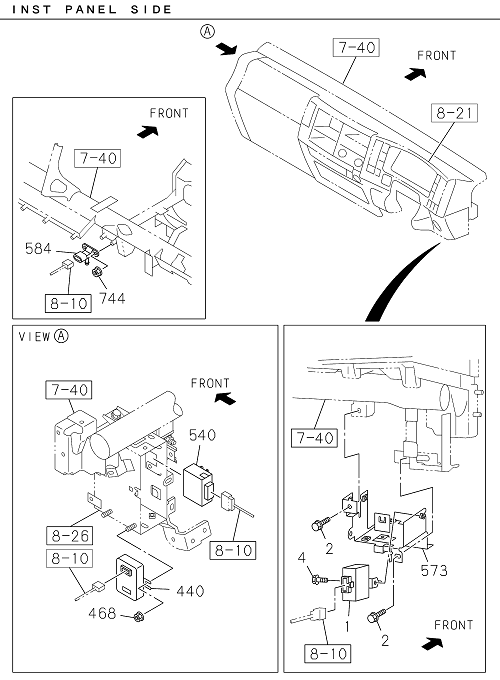

| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 2302- | FVZ-N | |||
| 331 | I6-97173 035-0 | RELAY; HORN | 1 | 2302- | FVZ-N | (IADG) | ||
| 090 | I0-28650 835-0 | BOLT; INL PIPE | 2 | 2302- | FVZ-N | M8X35 FLANGE | ||
| 089 | I8-97948 256-0 | VALVE; MAG,DIFF LOCK | 1 | 2302- | FVZ-N | |||
| 079 | I0-28650 820-0 | BOLT; GEAR CASE COVER | 2 | 2302- | FVZ-N | M8X20 FLANGE | ||
| 480 | I8-98010 858-0 | SWITCH; TRAILER COCK | 1 | 2302- | FVZ-N | STAMP 2.2 | ||
| 261 | I9-99204 513-0 | PLUG; AIR TANK | 1 | 2302- | FVZ-N | PT1/4 | ||
| 004 | I0-28050 616-0 | BOLT; SENSOR | 1 | 2302- | FVZ-N | M6X16 FLANGE | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2302- | FVZ-N | |||
| 744 | I0-91180 106-0 | NUT; CLIP | 2 | 2302- | FVZ-N | M6 FLANGE | ||
| 008 | I6-97173 035-0 | RELAY; HORN | 1 | 2302- | FVZ-N | (IADG) 24V 10A PANASONIC | ||
| 022 | I6-97173 035-0 | RELAY; HORN | 1 | 2302- | FVZ-N | (IADG) 24V 10A PANASONIC | ||

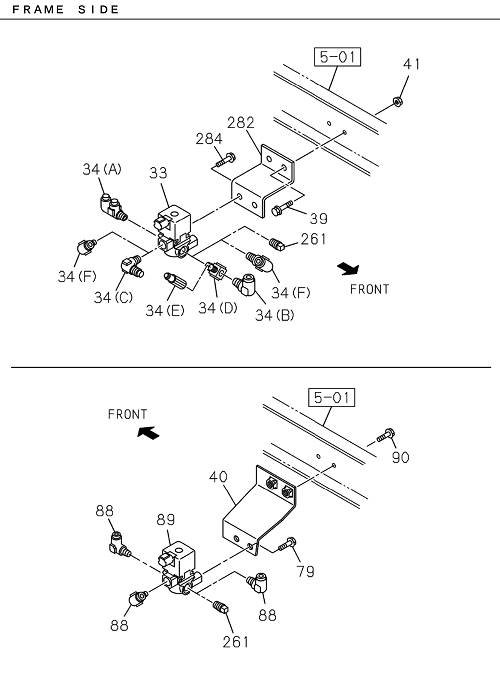

| 040 | I8-98326 065-0 | BRACKET; MAG VLV | 1 | 2302- | FVZ-N | |||
| 282 | I8-98311 998-0 | BRACKET; MAG VLV | 1 | 2302- | FVZ-N | |||
| 331 | I8-97173 035-1 | RELAY; HORN | 1 | 2302- | FVZ-N | |||
| 034 | I1-09660 956-0 | CONNECTOR | 1 | 2302- | FVZ-N | |||
| 041 | I0-91180 108-0 | NUT; OIL PAN | 2 | 2302- | FVZ-N | M8 FLANGE | ||
| 022 | I8-97173 035-1 | RELAY; HORN | 1 | 2302- | FVZ-N | 24V 10A PANASONIC | ||
| 284 | I0-28650 820-0 | BOLT; GEAR CASE COVER | 2 | 2302- | FVZ-N | M8X20 FLANGE | ||
| 008 | I8-97173 035-1 | RELAY; HORN | 1 | 2302- | FVZ-N | 24V 10A PANASONIC | ||
| 033 | I8-97948 152-0 | VALVE; AIR DRYER | 1 | 2302- | FVZ-N | |||
| 088 | I1-09660 956-0 | CONNECTOR | 2 | 2302- | FVZ-N | DIN8 & R1/4 ELBOW | ||
| 034 | I1-09661 067-0 | CONNECTOR; UNION | 1 | 2302- | FVZ-N | (B) DIN6 & R1/4 ELBOW | ||
| 039 | I0-28650 830-0 | BOLT; GEAR CASE | 2 | 2302- | FVZ-N | M8X30 FLANGE | ||

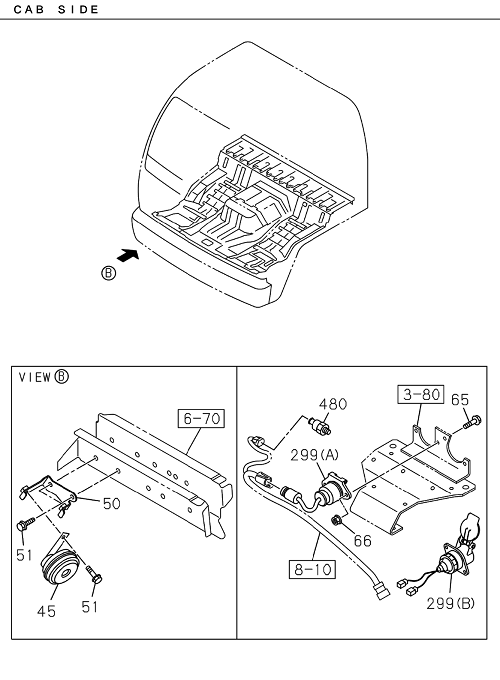

| 045 | I7-43600 341-A | HORN; LOW NOTE | 1 | 2302- | FVZ-N | |||
| 002 | I0-28650 616-0 | BOLT; CONT UNIT | 2 | 2302- | FVZ-N | M6X16 FLANGE | ||
| 051 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 2302- | FVZ-N | M8X20 W/LK&PL WASHER |
