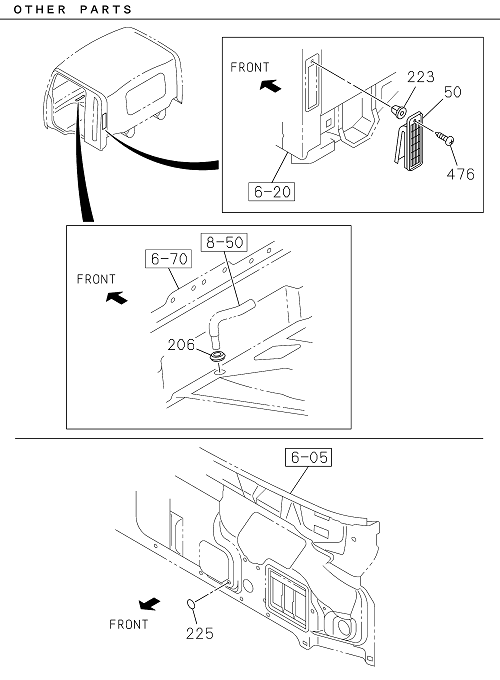

| 206 |
I8-98019 649-0 |
|
GROMMET; A/C PIPE TO BLOWER UNIT |
1 |
2302- |
|
FVZ-N |
|
| 317 |
I0-72180 516-0 |
|
SCREW; COVER FIX |
6 |
2302- |
|
FVZ-N |
|
| 476 |
I8-98062 675-0 |
|
SCREW; VALVE |
1 |
2302- |
|
FVZ-N |
M5X16 TAPPING HEXALOBULAR |
| 407 |
I8-98041 758-0 |
|
JOINT; HOSE |
1 |
2302- |
|
FVZ-N |
|

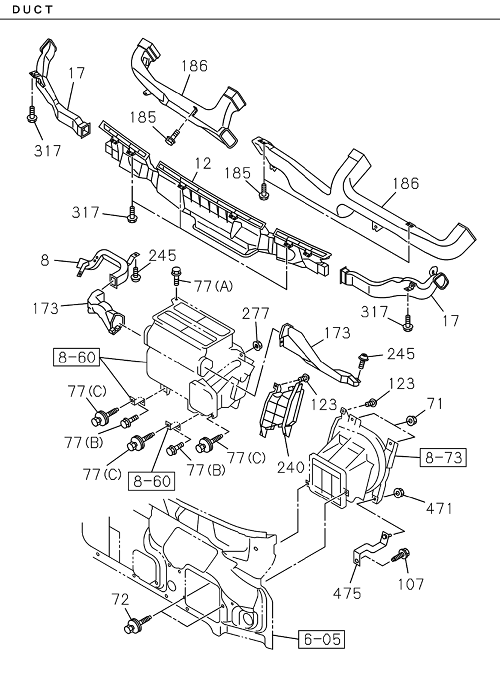

| 017 |
I8-98040 013-1 |
|
NOZZLE; DEFROSTER,SIDE |
1 |
2302- |
R |
FVZ-N |
|
| 173 |
I8-97585 506-2 |
|
DUCT; FOOT,HTR |
1 |
2302- |
L |
FVZ-N |
|
| 173 |
I8-98290 097-0 |
|
DUCT; FOOT,HTR |
1 |
2302- |
R |
FVZ-N |
|
| 077 |
I0-28650 620-0 |
|
BOLT; HAND BRK VALVE |
2 |
2302- |
|
FVZ-N |
(B) M6X20 FLANGE |
| 186 |
I8-98285 571-0 |
|
DUCT; VENTILATOR |
1 |
2302- |
R |
FVZ-N |
|
| 008 |
I8-98290 098-1 |
|
DUCT; HTR AIR,DRIVER FOOT |
1 |
2302- |
|
FVZ-N |
|
| 471 |
I0-91180 106-0 |
|
NUT; CLIP |
1 |
2302- |
|
FVZ-N |
M6 FLANGE |
| 072 |
I8-98081 175-0 |
|
BOLT; BLOWER UNIT |
2 |
2302- |
|
FVZ-N |
M6X20 W/LK&PL WASHER |
| 185 |
I0-72180 516-0 |
|
SCREW; COVER FIX |
4 |
2302- |
|
FVZ-N |
M5X16 TAPPING HEXALOBULAR |
| 475 |
I8-98043 500-1 |
|
BRACKET; BLOWER |
1 |
2302- |
|
FVZ-N |
|
| 317 |
I0-72180 516-0 |
|
SCREW; COVER FIX |
2 |
2302- |
|
FVZ-N |
|
| 277 |
I0-91180 106-0 |
|
NUT; CLIP |
1 |
2302- |
|
FVZ-N |
M6 FLANGE |
| 017 |
I8-98040 018-1 |
|
NOZZLE; DEFROSTER,SIDE |
1 |
2302- |
L |
FVZ-N |
|
| 223 |
I8-94441 539-0 |
|
GROMMET; SCREW |
1 |
2302- |
|
FVZ-N |
D=7.9X7.9 L=20 M5 |
| 077 |
I8-98081 175-0 |
|
BOLT; BLOWER UNIT |
3 |
2302- |
|
FVZ-N |
(C) M6X20 W/LK&PL WASHER |
| 107 |
I8-98018 439-0 |
|
BOLT; STRG COLUMN |
1 |
2302- |
|
FVZ-N |
M8X25 W/LK&PL WASHER |
| 077 |
I0-28650 616-0 |
|
BOLT; CONT UNIT |
1 |
2302- |
|
FVZ-N |
(A) M6X16 FLANGE |
| 240 |
I8-98041 402-1 |
|
DUCT; AIR,HTR |
1 |
2302- |
|
FVZ-N |
|
| 050 |
I7-15901 216-A |
|
VALVE ASM; HTR |
1 |
2302- |
|
FVZ-N |
|
| 245 |
I8-98056 059-0 |
|
CLIP; FOOT DUCT |
3 |
2302- |
|
FVZ-N |
|
| 186 |
I8-98285 574-0 |
|
DUCT; VENTILATOR |
1 |
2302- |
L |
FVZ-N |
|
| 071 |
I0-91180 106-0 |
|
NUT; CLIP |
2 |
2302- |
|
FVZ-N |
M6 FLANGE |
| 012 |
I8-98040 009-3 |
|
NOZZLE; DEFROSTER |
1 |
2302- |
|
FVZ-N |
|
| 123 |
I0-72180 516-0 |
|
SCREW; COVER FIX |
4 |
2302- |
|
FVZ-N |
M5X16 TAPPING HEXALOBULAR |
