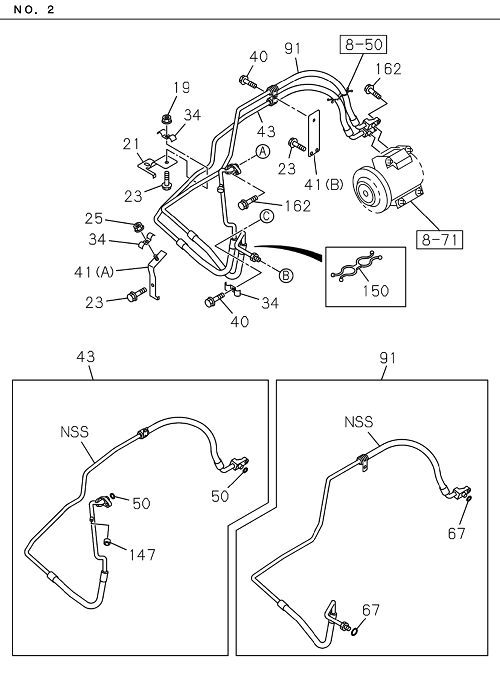

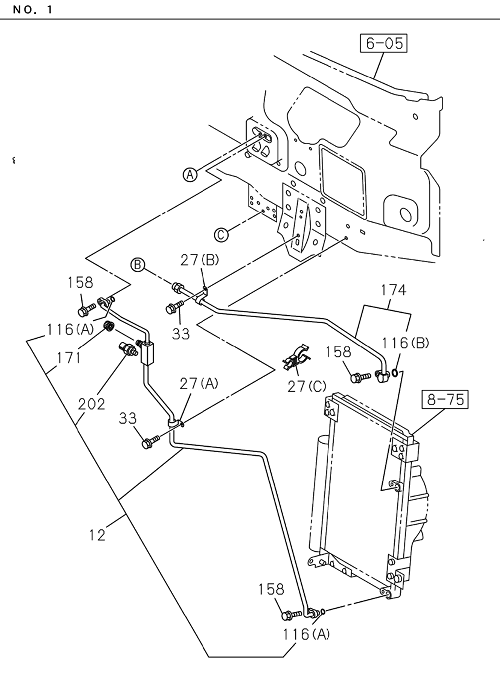

8-52 | PIPING; AIR CONDITIONING
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 050 | I8-98382 417-0 | GASKET; FLEX HOSE,A/C | 2 | 2302- | FVZ-N | |||
| 091 | I8-98314 003-1 | HOSE; FLEX,CMPR | 1 | 2302- | FVZ-N | |||
| 041 | I7-38900 326-A | BRACKET; PIPE CLIP | 1 | 2302- | FVZ-N | (A) | ||
| 019 | I0-91180 108-0 | NUT; OIL PAN | 1 | 2302- | FVZ-N | |||
| 116 | I8-98382 418-0 | GASKET; PIPE | 1 | 2302- | FVZ-N | |||
| 171 | I8-98382 420-0 | CAP; PIPE | 1 | 2302- | FVZ-N | |||
| 147 | I8-98382 421-0 | CAP; FLEX HOSE | 1 | 2302- | FVZ-N | |||
| 158 | I0-28050 625-0 | BOLT; PIPE FIX | 3 | 2302- | FVZ-N | M6X25 | ||
| 040 | I0-28650 825-0 | BOLT; DUCT | 2 | 2302- | FVZ-N | |||
| 027 | I0-95207 308-0 | CLIP; COOLER PIPE | 1 | 2302- | FVZ-N | (A) ID=9 H=20 L=20 | ||
| 034 | I1-83574 190-0 | CLIP; COOLER PIPE | 3 | 2302- | FVZ-N | ID=12.2 & 16.2 | ||
| 025 | I0-91180 108-0 | NUT; OIL PAN | 6 | 2302- | FVZ-N | |||
| 150 | I8-94423 042-0 | CLIP; HOSE | 1 | 2302- | FVZ-N | |||
| 174 | I7-38400 320-A | PIPE; COOLER,CONDENSER TO FLEX HOSE | 1 | 2302- | FVZ-N | |||
| 012 | I7-38400 321-A | PIPE; COOLER,EVAP TO TANK | 1 | 2302- | FVZ-N | |||
| 027 | I0-95207 315-0 | CLIP; COOLER PIPE | 1 | 2302- | FVZ-N | (B) ID=16 H=24 L=20 | ||
| 023 | I0-28650 825-0 | BOLT; DUCT | 5 | 2302- | FVZ-N | |||
| 162 | I0-28050 625-0 | BOLT; FLEX HOSE | 3 | 2302- | FVZ-N | M6X25 | ||
| 202 | I8-98382 419-0 | SWITCH; PRESSURE | 1 | 2302- | FVZ-N | |||
| 043 | I8-97492 296-0 | HOSE; FLEX,A/C,EVAP TO CMPR | 1 | 2302- | FVZ-N | |||
| 116 | I8-98382 416-0 | GASKET; PIPE | 2 | 2302- | FVZ-N | (A) | ||
| 033 | I0-28650 616-0 | BOLT; CONT UNIT | 2 | 2302- | FVZ-N | |||
| 027 | I1-09709 182-0 | CLIP; COOLER PIPE | 1 | 2302- | FVZ-N | (C) ID=11.8 & 7.5 | ||
| 021 | I7-38900 325-A | BRACKET; COOLER HOSE | 1 | 2302- | FVZ-N | |||
| 041 | I8-98326 476-A | BRACKET; PIPE CLIP | 1 | 2302- | FVZ-N | (B) | ||
| 067 | I8-98382 418-0 | GASKET; FLEX HOSE | 2 | 2302- | FVZ-N |
