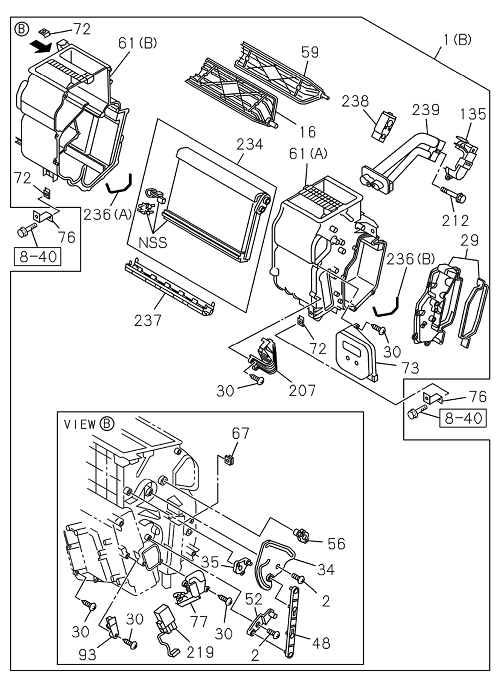

8-60 | HEATER UNIT; FRONT
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 067 | I8-98047 417-0 | CLIP; HTR UNIT | 1 | 2302- | FVZ-N | |||
| 093 | I8-98047 427-0 | PLATE; HTR UNIT | 1 | 2302- | FVZ-N | |||
| 135 | I8-98047 384-0 | COVER; HTR | 1 | 2302- | FVZ-N | |||
| 234 | I8-98074 116-1 | EVAPORATOR ASM; HEATER | 1 | 2302- | FVZ-N | |||
| 016 | I8-98047 387-0 | SHUTTER; HTR UNIT,CENTER UPR | 1 | 2302- | FVZ-N | FOOT AND DEFROSTER | ||
| 207 | I8-98047 379-0 | CLAMP; HTR UNIT | 1 | 2302- | FVZ-N | |||
| 236 | I8-98047 420-0 | GASKET; HEATER | 1 | 2302- | FVZ-N | (A) | ||
| 072 | I8-98047 428-0 | NUT; CASE,HTR UNIT | 3 | 2302- | FVZ-N | M6 | ||
| 001 | I8-98057 980-2 | HEATER UNIT | 1 | 2302- | FVZ-N | (B) | ||
| 239 | I8-98074 115-0 | TUBE ASM; HEATER | 1 | 2302- | FVZ-N | |||
| 048 | I8-98047 391-0 | LEVER; HTR UNIT | 1 | 2302- | FVZ-N | |||
| 219 | I8-98064 733-0 | AMPLIFIER; HEATER UNIT | 1 | 2302- | FVZ-N | |||
| 056 | I8-98047 393-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2302- | FVZ-N | |||
| 029 | I8-98074 119-0 | COVER; HTR UNIT | 1 | 2302- | FVZ-N | |||
| 035 | I8-98047 392-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2302- | FVZ-N | |||
| 237 | I8-98047 382-0 | INSULATOR; EVAPORATOR | 1 | 2302- | FVZ-N | |||
| 236 | I8-98047 421-0 | GASKET; HEATER | 1 | 2302- | FVZ-N | (B) | ||
| 052 | I8-98047 390-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2302- | FVZ-N | |||
| 061 | I8-98077 422-0 | CASE; HTR UNIT | 1 | 2302- | FVZ-N | (A) | ||
| 076 | I8-98009 742-1 | BRACKET; HTR UNIT | 2 | 2302- | FVZ-N | |||
| 238 | I8-98047 383-0 | VALVE; EXPANSION | 1 | 2302- | FVZ-N | |||
| 059 | I8-98047 386-0 | SHUTTER; HTR UNIT,SIDE | 1 | 2302- | FVZ-N | FACE | ||
| 073 | I8-98077 420-0 | PLATE; HTR UNIT | 1 | 2302- | FVZ-N | |||
| 077 | I8-98047 414-0 | COVER; HTR CASE | 1 | 2302- | FVZ-N | |||
| 002 | I8-98047 416-0 | SCREW; HTR UNIT | 2 | 2302- | FVZ-N | |||
| 061 | I8-98077 423-0 | CASE; HTR UNIT | 1 | 2302- | FVZ-N | (B) | ||
| 030 | I8-97957 708-0 | SCREW; HTR UNIT | 27 | 2302- | FVZ-N | M4X16 TAPPING | ||
| 212 | I8-98047 415-0 | BOLT; HTR UNIT | 2 | 2302- | FVZ-N | M5X61 | ||
| 034 | I8-98047 389-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2302- | FVZ-N |
