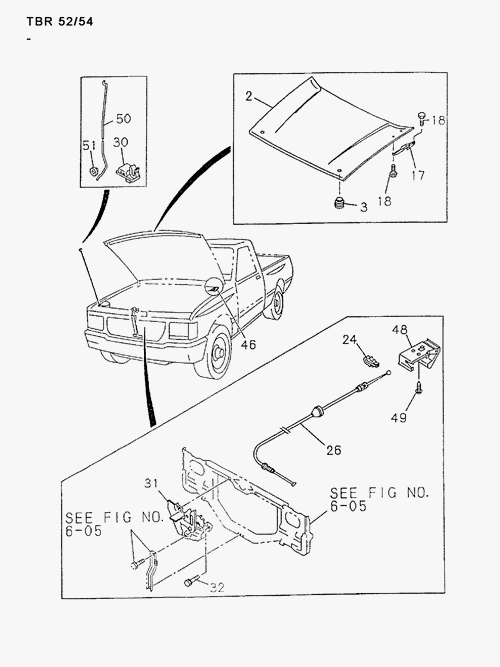

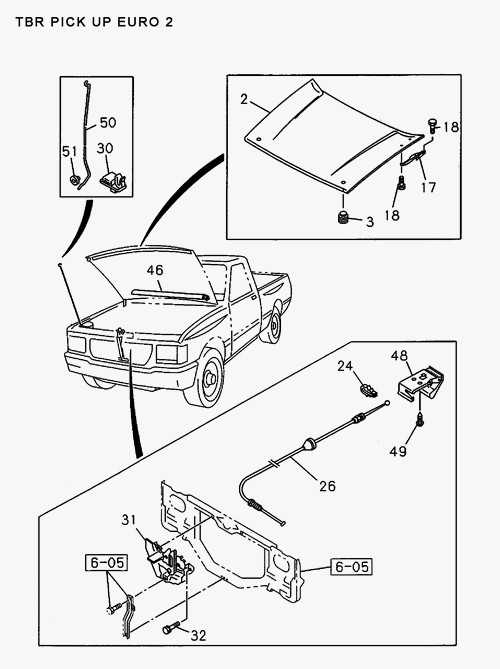

6-10 | ENGINE HOOD AND LOCK
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-97136 489-0 | PANEL; ENG HOOD | 1 | 9602- | ABCDE | |||
| 17 | I8-94367 251-0 | HINGE; ENG HOOD | 1 | 9009- | ABCDE | |||
| 50 | I8-94366 978-0 | ROD; SUPPORT, ENG HOOD | 1 | 9009-9507 | ABCD | |||
| 50 | I8-97126 915-0 | ROD; SUPPORT, ENG HOOD | 1 | 9508- | ABCDE | |||
| 48 | I8-97098 100-0 | LEVER; ENG HOOD | 1 | 9009-9308 | ABCD | GRAY | ||
| 49 | I8-94120 095-0 | SCREW; LEVER. ENG HOOD OPENER | 2 | 9009- | ABCDE | M5X10 | ||
| 32 | I8-98056 280-0 | BOLT; HOOD LK | 2 | 9009- | ABCDE | M6XI8 | ||
| 32 | I8-98056 280-0 | BOLT; HOOD LK | 2 | 9009- | ABCDE | M6XI8 | ||
| 32 | I8-94408 386-1 | BOLT; HOOD LK | 2 | 9009- | ABCDE | M6XI8 | ||
| 32 | I8-97071 681-0 | BOLT; HOOD LK | 2 | 9009- | ABCDE | M6XI8 | ||
| 18 | I8-94139 492-0 | BOLT; HINGE | 8 | 9009- | ABCDE | M8X16 | ||
| 31 | I8-94366 977-0 | LOCK; ENG HOOD | 1 | 9009- | ABCDE | |||
| 17 | I8-94367 252-0 | HINGE; ENG HOOD | 1 | 9009- | ABCDE | |||
| 51 | I8-94220 508-2 | GROMMET; SUPPORT ROD | 1 | 9009- | ABCDE | DELETION | ||
| 18 | I8-98056 122-0 | BOLT; HINGE | 8 | 9009- | ABCDE | M8X16 | ||
| 3 | I6-94237 385-0 | BUFFER; ENG HOOD, FRT | 2 | 9009- | ABCDE | (IADG) | ||
| 51 | I8-94220 508-A | GROMMET; SUPPORT ROD | 1 | 9009- | ABCDE | |||
| 26 | I8-94366 979-0 | CABLE; ENG HOOD CONT | 1 | 9009- | ABCDE | |||
| 24 | I8-94225 098-0 | CLIP; CONT CABLE | 3 | 9009- | ABCDE | |||
| 49 | I9-09829 185-0 | SCREW; LEVER. ENG HOOD OPENER | 2 | 9009- | ABCDE | M5X10 | ||
| 30 | I8-94441 538-0 | CLIP; SUPPORT ROD, HOOD | 2 | 9009- | ABCDE | |||
| 46 | I8-94366 925-0 | SEAL; ENG HOOD | 1 | 9009- | ABCDE | |||
| 3 | I8-94237 385-0 | BUFFER; ENG HOOD, FRT | 2 | 9009- | ABCDE | |||
| 48 | I8-97150 583-0 | LEVER; ENG HOOD | 1 | 9602- | ABCDE | INTERIOR COLOR BLACK(101) BLACK |
