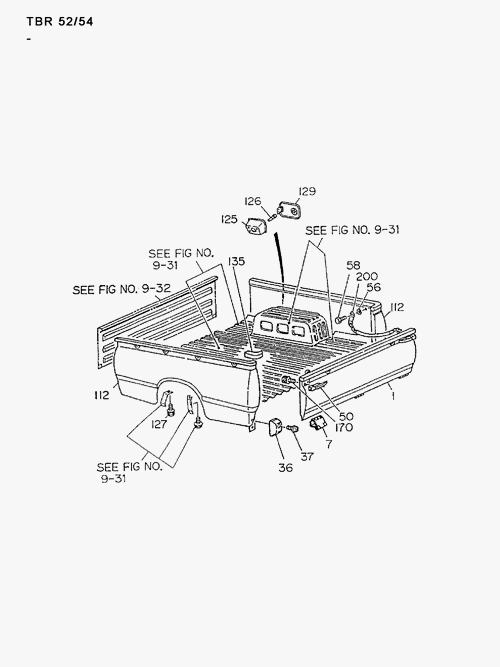

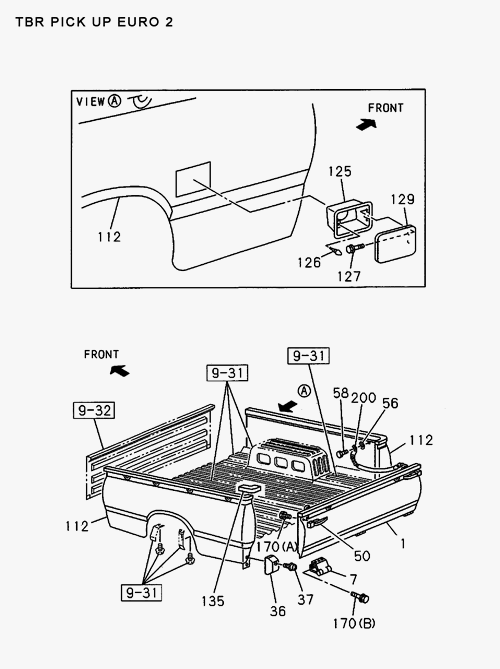

9-33 | REAR BODY; GATE AND SIDE GUARD
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 200 | I8-94367 702-0 | CHAIN; REAR GATE | 2 | 9009- | AB E | |||
| 36 | I8-94367 697-A | RUBBER; STOPPER, RR GATE | 2 | 9009- | AB E | |||
| 126 | I9-09956 829-A | RUBBER; STOPPER, FUEL FILLER LID | 1 | 9009- | AB E | |||
| 170 | I0-28280 618-0 | BOLT; TAIL GATE LOCK | 4 | 9009- | AB E | M6X18 | ||
| 170 | I8-94419 345-0 | BOLT; TAIL GATE LOCK | 6 | 0612- | E | M8X18 | ||
| 135 | I8-94367 216-1 | STRIKER; TAIL GATE, RR BODY | 2 | 9009- | AB E | |||
| 1 | I8-94367 226-0 | GATE ASM; RR | 1 | 9009- | AB E | |||
| 50 | I8-94385 443-A | LOCK ASM; TAIL GATE, RR BODY | 2 | 9009- | AB E | |||
| 125 | I8-94380 515-0 | RECESS; FUEL FILLER NECK, RR BODY | 1 | 9009- | AB E | |||
| 127 | I8-94279 201-0 | BOLT; FUEL FILLER LID | 2 | 9205- | AB E | M6X12 W/LK8PL WASHER | ||
| 50 | I8-94385 443-0 | LOCK ASM; TAIL GATE, RR BODY | 2 | 9009- | AB E | |||
| 7 | I8-94367 231-0 | HINGE ASM; RR GATE | 3 | 9009- | AB E | |||
| 112 | I8-94367 184-0 | PANEL; SIDE GATE | 1 | 9009- | B E | |||
| 112 | I8-94367 185-0 | PANEL; SIDE GATE | 1 | 9009- | B E | |||
| 56 | I9-09160 708-0 | WASHER; PL, CHAIN TO RR BODY | 2 | 9009- | AB E | ID=8 OD=22 | ||
| 37 | I9-03900 620-0 | SCREW; STOPPER RUBBER | 2 | 9009- | AB E | M6X20 | ||
| 129 | I8-94380 518-0 | LID ASM; FUEL FILLER, RR BODY | 1 | 9009- | AB E | |||
| 58 | I5-09000 065-2 | BOLT; CHAIN TO RR BODY | 2 | 9009- | AB E | |||
| 56 | I0-91610 708-0 | WASHER; PL, CHAIN TO RR BODY | 2 | 9009- | AB E | ID=8 OD=22 | ||
| 37 | I0-36210 620-0 | SCREW; STOPPER RUBBER | 2 | 9009- | AB E | M6X20 | ||
| 112 | I8-94367 183-0 | PANEL; SIDE GATE | 1 | 9009- | A | DELETION | ||
| 112 | I8-94367 182-0 | PANEL; SIDE GATE | 1 | 9009- | A | DELETION |
