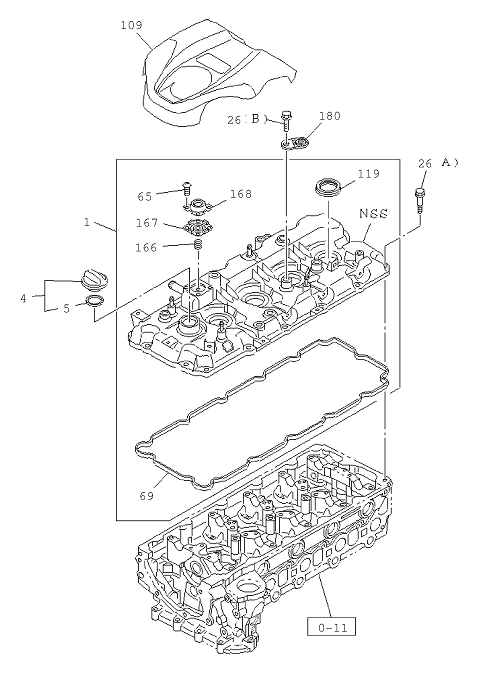

0-10 | CYLINDER HEAD COVER
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 124 | I8-98269 869-0 | RUBBER; MTG,COVER | 4 | 1704- | A | |||
| 1 | I8-98344 846-0 | COVER; CYL HD | 1 | 1704- | A | |||
| 4 | I8-98026 084-0 | CAP; OIL FILLER | 1 | 1704- | A | |||
| 166 | I8-97088 445-0 | SPRING; VENTILATOR | 1 | 1704- | A | .29375 | ||
| 69 | I8-98228 369-0 | GASKET; HD TO COVER | 1 | 1704- | A | |||
| 119 | I8-98228 371-0 | COVER; SEAL,NOZZLE | 4 | 1704- | A | |||
| 5 | I8-97918 298-0 | GASKET; OIL FILLER | 1 | 1704- | A | ID=32 OD=4 0 | ||
| 180 | I8-98244 154-0 | DAMPENER; CYL HEAD | 1 | 1704- | A | |||
| 109 | I8-98147 402-0 | COVER; ENG | 1 | 1704- | A | |||
| 26 | I0-28050 820-0 | BOLT; CYL HD COVER | 1 | 1704- | A | 04 .338 (A) M8X20 FLANGE | ||
| 167 | I8-98226 101-1 | DIAPHRAGM; VENTILATOR | 1 | 1704- | A | |||
| 26 | I8-98228 370-0 | BOLT; CYL HD COVER | 15 | 1704- | A | (B) M6X25.7 FLANGE | ||
| 65 | I8-98209 387-0 | SCREW; ADAPTER | 4 | 1704- | A | M4X10 | ||
| 168 | I8-98234 092-0 | COVER; VENTILATOR | 1 | 1704- | A |
