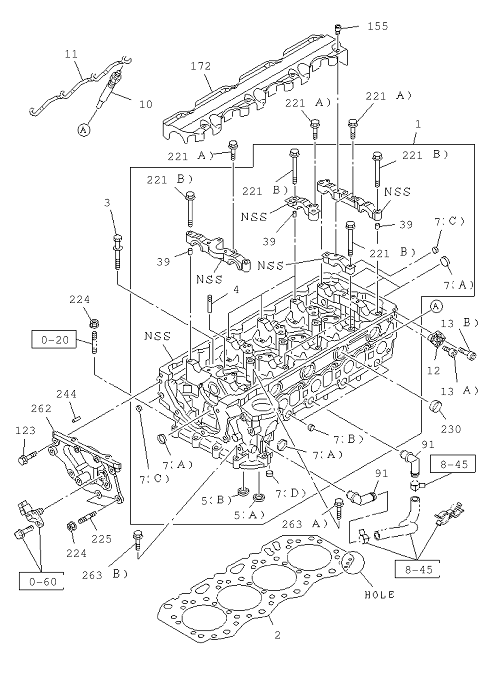

0-11 | CYLINDER HEAD
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 4 | I8-94239 423-0 | GUIDE; VLV | 16 | 1704- | A | L=42 | ||
| 3 | I8-98201 019-0 | BOLT; CYL HD TO BLOCK | 18 | 1704- | A | M11X114 W/WASHER | ||
| 7 | I5-11219 011-0 | CUP; SEALING,CYL HEAD | 2 | 1704- | A | 00 . 034 (C) OD=14 | ||
| 11 | I8-98209 370-0 | CONNECTOR; GLOW PLUG | 1 | 1704- | A | |||
| 172 | I8-98250 484-0 | PLATE; BAFFLE,CYL HD | 1 | 1704- | A | |||
| 2 | I8-98261 320-0 | GASKET; CYL HD | 1 | 1704- | A | T= 1.24 3-HOLE | ||
| 262 | I8-98243 226-0 | COVER; CYL HEAD | 1 | 1704- | A | |||
| 244 | I9-08150 510-0 | PIN; HEAD GASKET | 1 | 1704- | A | 08.939 OD=5 L=10 | ||
| 224 | I0-91180 208-0 | NUT; COVER | 4 | 1704- | A | 01.540 M8 FLANGE | ||
| 5 | I8-97311 378-0 | SEAT; VLV INSERT | 8 | 1704- | A | (A) INLET ID=2 9 OD=3 5 | ||
| 123 | I0-28050 820-0 | BOLT; COVER | 3 | 1704- | A | 04 .338 M8X2 0 FLANGE | ||
| 155 | I0-58330 610-0 | BOLT; BAFFLE PLATE | 8 | 1704- | A | M6X10 HEX SOCKET | ||
| 221 | I0-28050 630-0 | BOLT; BRKT | 8 | 1704- | A | 01.531 (A) M6X3 0 FLANGE | ||
| 5 | I8-97311 379-0 | SEAT; VLV INSERT | 8 | 1704- | A | (B) EXHAUST ID=2 6 OD=32 | ||
| 263 | I0-28650 835-0 | BOLT; CYL HD | 3 | 1704- | A | 01.060 (B) M8X3 5 FLANGE | ||
| 91 | I8-98228 414-0 | PIPE; HTR | 2 | 1704- | A | |||
| 7 | I5-11219 008-0 | CUP; SEALING,CYL HEAD | 6 | 1704- | A | (B) OD=18 | ||
| 1 | I8-98270 378-2 | HEAD ASM; CYL | 1 | 1704- | A | |||
| 2 | I8-98261 319-0 | GASKET; CYL HD | 1 | 1704- | A | T= 1.19 2-HOLE | ||
| 39 | I8-97329 129-1 | DOWEL; CAP,CM/SHF | 26 | 1704- | A | |||
| 13 | I0-58330 830-0 | BOLT; HANGER | 1 | 1704- | A | 00.206 (B) M8X3 0 HEX SOCKET | ||
| 263 | I0-28050 860-0 | BOLT; CYL HD | 1 | 1704- | A | 04.686 (A) M8X6 0 FLANGE | ||
| 7 | I8-97333 120-0 | CUP; SEALING,CYL HEAD | 5 | 1704- | A | (A) OD=24 | ||
| 10 | I8-98117 567-1 | PLUG; GLOW | 4 | 1704- | A | NGK | ||
| 2 | I8-98261 318-0 | GASKET; CYL HD | 1 | 1704- | A | T=1. 14 1-HOLE | ||
| 13 | I0-58330 820-0 | BOLT; HANGER | 1 | 1704- | A | 01 . 758 (A) M8X2 0 HEX SOCKET | ||
| 225 | I8-97945 022-0 | STUD; COVER | 2 | 1704- | A | M8X20 L=31 | ||
| 230 | I1-09639 034-0 | GASKET; SLEEVE,INJECTOR | 4 | 1704- | A | |||
| 221 | I1-09044 074-0 | BOLT; BRKT | 21 | 1704- | A | 01.531 (B) M8X85 | ||
| 12 | I8-98239 364-0 | HANGER; ENG,RR | 1 | 1704- | A | |||
| 7 | I8-97233 429-0 | CUP; SEALING,CYL HEAD | 1 | 1704- | A | (D) OD=8 |
