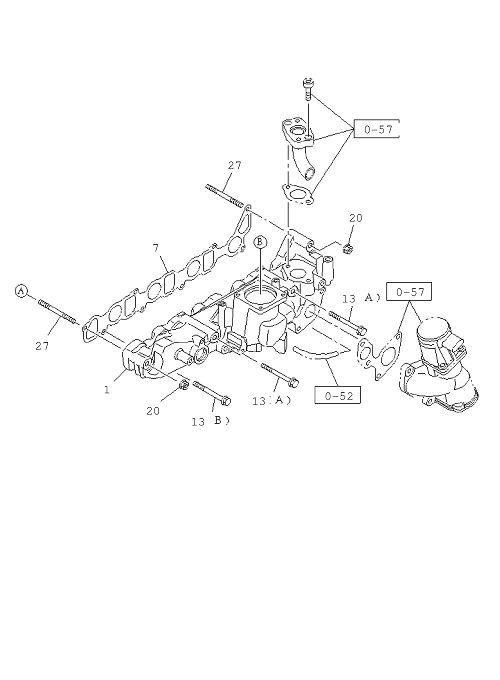

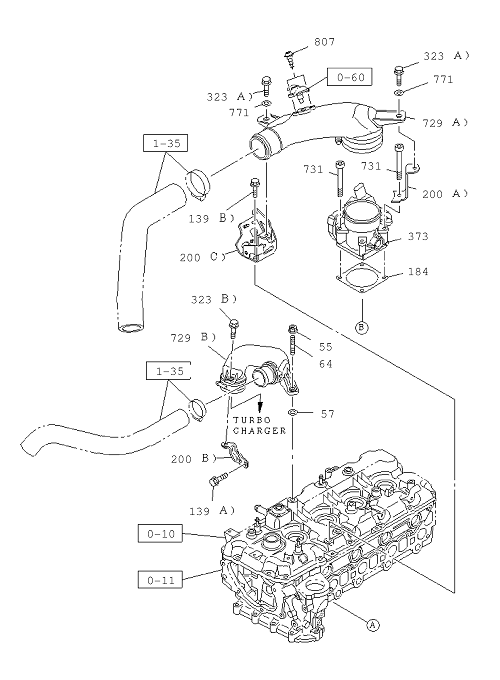

0-25 | INLET MANIFOLD
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 323 | I0-28050 825-0 | BOLT; DUCT | 1 | 1704- | A | (B) M8X2 5 FLANGE | ||
| 200 | I8-98228 262-0 | BRACKET; AIR DUCT | 1 | 1704- | A | (B) | ||
| 13 | I8-97101 065-0 | BOLT; INL MANIF | 4 | 1704- | A | (B) M8X70 12-POINT HEAD | ||
| 1 | I8-98228 252-0 | MANIFOLD; INL | 1 | 1704- | A | |||
| 729 | I8-98117 651-1 | DUCT; INLET | 1 | 1704- | A | (A) | ||
| 13 | I0-28055 811-0 | BOLT; INL MANIF | 2 | 1704- | A | (A) M8X110 FLANGE | ||
| 64 | I0-41010 830-0 | STUD; INL PIPE | 1 | 1704- | A | 02.042 M8X30 L=41 | ||
| 57 | I0-91614 708-0 | WASHER; PL | 1 | 1704- | A | 02.277 ID= 8.4 OD=22 | ||
| 731 | I0-58330 650-0 | BOLT; THROTTLE ASM | 4 | 1704- | A | M6X50 HEX SOCKET | ||
| 200 | I8-98154 158-2 | BRACKET; AIR DUCT | 1 | 1704- | A | (A) | ||
| 184 | I8-98096 968-0 | GASKET; T/V | 1 | 1704- | A | |||
| 139 | I0-28050 816-0 | BOLT; BRKT FIX | 1 | 1704- | A | 02 . 343 (A) M8X16 FLANGE | ||
| 807 | I0-36230 412-0 | SCREW; SENSOR | 2 | 1704- | A | 02.510 M4X12 W/LK&PL WASHER | ||
| 373 | I8-98131 738-3 | THROTTLE ASM; INT | 1 | 1704- | A | |||
| 20 | I0-91180 208-0 | NUT; INL MANIF | 2 | 1704- | A | 01.540 M8 FLANGE | ||
| 7 | I8-98212 999-0 | GASKET; INL MANIF TO HD | 1 | 1704- | A | |||
| 771 | I0-91610 706-0 | WASHER; DUCT | 2 | 1704- | A | 00.413 ID= 6.4 OD=18 | ||
| 27 | I8-97367 083-0 | STUD; INL MANIF | 2 | 1704- | A | M8X71 L=83 | ||
| 323 | I0-28050 616-0 | BOLT; DUCT | 2 | 1704- | A | 09. 242 (A) M6X16 FLANGE | ||
| 200 | I8-98228 445-2 | BRACKET; AIR DUCT | 1 | 1704- | A | (C) | ||
| 729 | I8-98228 260-1 | DUCT; INLET | 1 | 1704- | A | (B) | ||
| 55 | I0-91180 208-0 | NUT; INL PIPE | 1 | 1704- | A | 01.540 M8 FLANGE | ||
| 139 | I0-28650 820-0 | BOLT; BRKT FIX | 3 | 1704- | A | 01.531 (B) M8X20 FLANGE |
