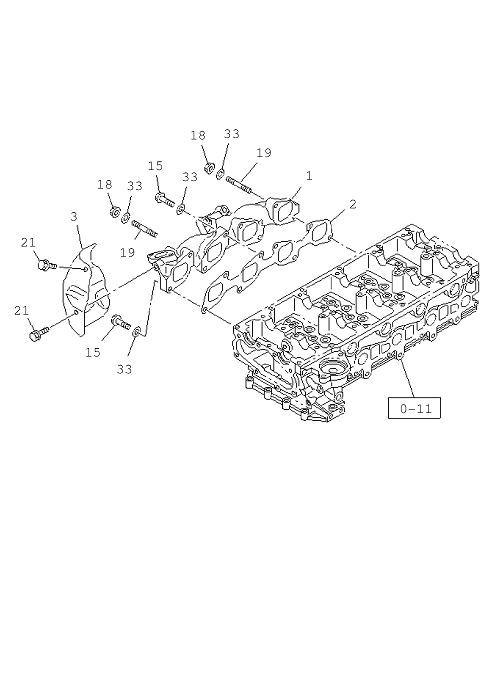

0-27 | EXHAUST MANIFOLD
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-98156 384-0 | PROTECTOR; HEAT,EXH MANIF | 1 | 1704- | A | |||
| 33 | I5-09500 013-0 | WASHER; EXH MANIF | 8 | 1704- | A | 03.613 ID=10.5 | ||
| 18 | I8-97381 617-0 | NUT; EXH MANIF | 2 | 1704- | A | M10 FLANGE | ||
| 15 | I8-98032 158-0 | BOLT; EXH MANIF | 6 | 1704- | A | M10X30 FLANGE | ||
| 21 | I0-28050 812-0 | BOLT; HEAT PROTECTOR | 3 | 1704- | A | 02.343 M8X12 FLANGE | ||
| 19 | I8-97379 383-0 | STUD; MANIF TO CYL HD | 2 | 1704- | A | M10X33 L=48 | ||
| 1 | I8-98132 040-2 | MANIFOLD; EXHAUST | 1 | 1704- | A | |||
| 2 | I8-98229 782-0 | GASKET; EXH MANIF TO HD | 1 | 1704- | A |
