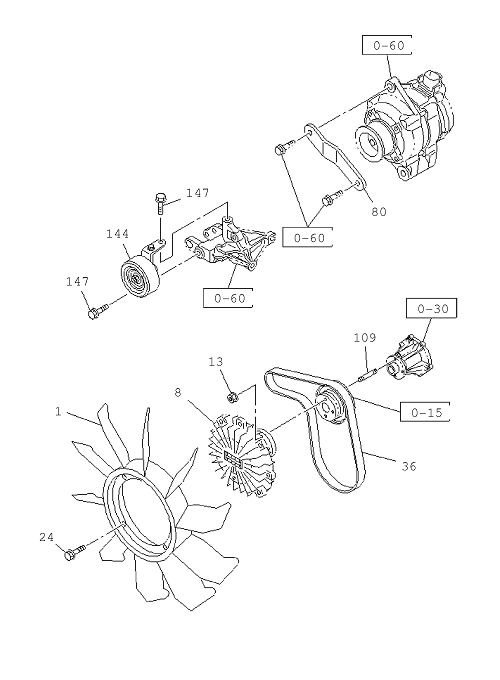

0-33 | FAN AND FAN BELT
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 147 | I0-28651 020-0 | BOLT; BELT TENSIONER | 3 | 1704- | A | 02 .343 M10X20 FLANGE | ||
| 144 | I8-98276 119-1 | TENSIONER; DRIVE BELT | 1 | 1704- | A | |||
| 80 | I8-98228 448-0 | PLATE; ADJ | 1 | 1704- | A | |||
| 36 | I8-98020 247-A | BELT; COOLING FAN | 1 | 1704- | A | (IADG) L=108 6 MITSUBOSHI | ||
| 109 | I8-98256 636-0 | STUD; FAN CLU | 4 | 1704- | A | M6X20 L=31 | ||
| 8 | I8-98119 213-1 | CLUTCH; COOLING FAN | 1 | 1704- | A | |||
| 36 | I8-98020 247-A | BELT; COOLING FAN | 1 | 1704- | A | (IADG) L=108 6 MITSUBOSHI | ||
| 1 | I8-98162 703-0 | FAN; COOLING | 1 | 1704- | A | |||
| 24 | I0-28650 625-0 | BOLT; FAN | 4 | 1704- | A | 00.685 M6X2 5 FLANGE | ||
| 13 | I8-98049 362-0 | NUT; COOLING FAN | 4 | 1704- | A | 16 .320 M6 FLANGE |
