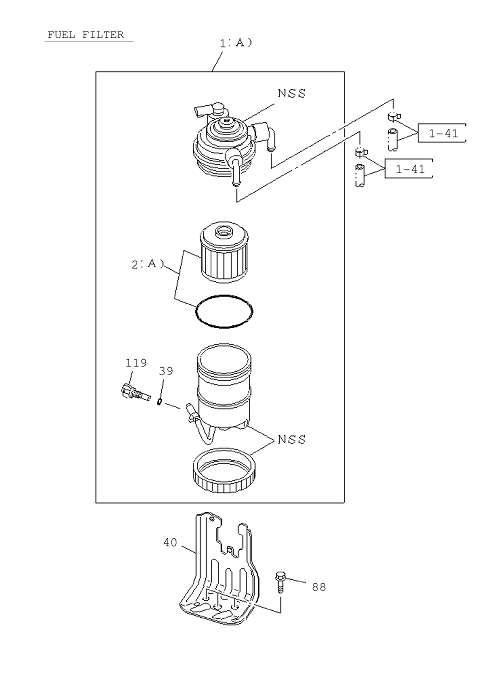

0-41 | FUEL FILTER AND BRACKET
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 40 | I8-98104 468-4 | BRACKET; FUEL FILTER | 1 | 1704- | A | |||
| 88 | I8-97948 261-0 | BOLT; BRKT,FUEL FILTER | 3 | 1704- | A | M8X16 FLANGE | ||
| 41 | I8-97947 677-0 | BRACKET; FUEL FILTER | 1 | 1704- | A | M/T MUA 5 SPEED 5H(MWQ) (A) | ||
| 2 | I8-98159 693-A | ELEMENT; FUEL FILTER | 1 | 1704- | A | (IADG) (A) | ||
| 41 | I8-98197 461-0 | BRACKET; FUEL FILTER | 1 | 1704- | A | A/T 5 SPEED-AISIN(MA1) (B) | ||
| 1 | I8-98067 761-3 | FILTER ASM; FUEL | 1 | 1704- | A | (A) | ||
| 2 | I8-98159 693-0 | ELEMENT KIT; FUEL FILTER | 1 | 1704- | A | (A) | ||
| 47 | I8-98276 856-0 | BOLT; BRKT,FUEL FILTER | 2 | 1704- | A | M10X3 0 FLANGE | ||
| 2 | I8-98194 119-0 | ELEMENT KIT; FUEL FILTER | 1 | 1704- | A | (B) | ||
| 119 | I8-98188 941-0 | PLUG; DRAIN,FUEL FILTER | 1 | 1704- | A | |||
| 1 | I8-98182 445-0 | FILTER ASM; FUEL | 1 | 1704- | A | (B) | ||
| 2 | I6-98194 119-0 | ELEMENT; FUEL FILTER | 1 | 1704- | A | (IADG) (B) | ||
| 39 | I8-98188 943-0 | GASKET; DRAIN PLUG | 1 | 1704- | A |
