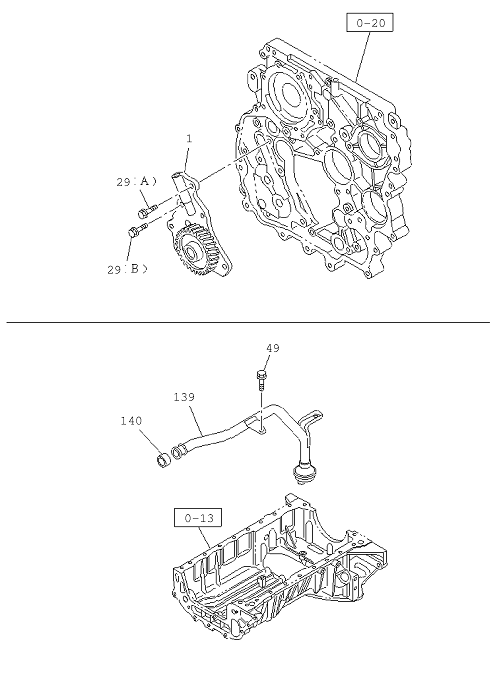

0-51 | OIL PUMP AND OIL STRAINER
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 139 | I8-98127 247-0 | PIPE; OIL STRAINER | 1 | 1704- | A | A/T 5 SPEED-AISIN(MA1) | ||
| 29 | I0-28050 845-0 | BOLT; OIL PUMP | 2 | 1704- | A | 09 . 173 (A) M8X45 FLANGE | ||
| 29 | I0-28050 830-0 | BOLT; OIL PUMP | 4 | 1704- | A | 00.206 (B) M8X3 0 FLANGE | ||
| 1 | I8-98232 624-1 | PUMP ASM; OIL | 1 | 1704- | A | |||
| 49 | I0-28050 816-0 | BOLT; STRAINER,OIL PUMP | 2 | 1704- | A | 02 .343 M8X16 FLANGE | ||
| 139 | I8-98132 012-0 | PIPE; OIL STRAINER | 1 | 1704- | A | M/T MUA 5 SPEED 5H(MWQ) | ||
| 140 | I8-97356 150-0 | GASKET; OIL STRAINER | 1 | 1704- | A |
