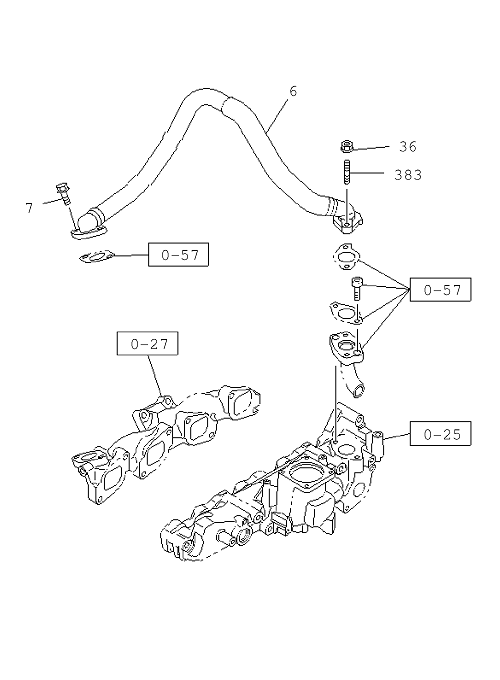

0-56 | EMISSION SYSTEM
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 36 | I0-91180 208-0 | NUT; EGR PIPE | 2 | 1704- | A | 01.540 M8 FLANGE | ||
| 6 | I8-98132 050-1 | PIPE; EGR | 1 | 1704- | A | |||
| 7 | I8-98048 437-0 | BOLT; BRKT,EGR PIPE | 2 | 1704- | A | M8X23 FLANGE | ||
| 383 | I8-94476 282-0 | STUD; EGR PIPE | 2 | 1704- | A | 03 .342 M8X25 L=36 |
