0-57 | EMISSION PIPING
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

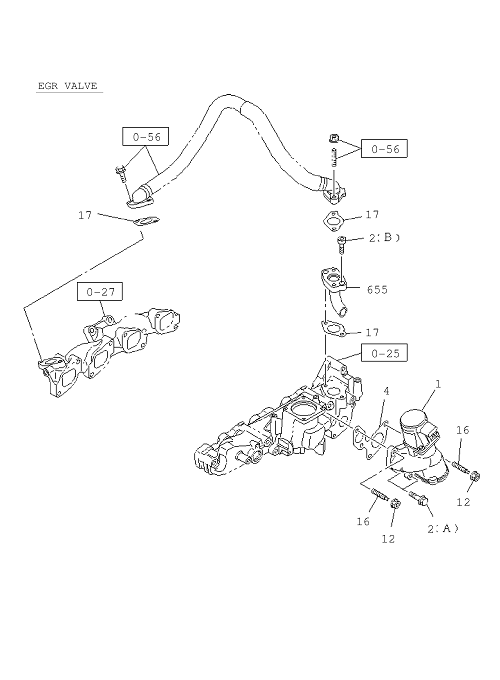

| 4 | I8-97356 711-3 | GASKET; EGR VLV | 1 | 1704- | A | |||
| 678 | I0-28050 816-0 | BOLT; PLATE | 2 | 1704- | A | 02 .343 M8X16 FLANGE | ||
| 2 | I0-28650 825-0 | BOLT; EGR VLV | 2 | 1704- | A | 06 .216 (A) M8X2 5 FLANGE | ||
| 1 | I8-98133 202-3 | VALVE; EGR | 1 | 1704- | A | |||
| 73 | I8-94257 639-0 | CLIP; VAC HOSE | 2 | 1704- | A | 02 . 559 (B) ID=6.5 | ||
| 17 | I8-97357 684-3 | GASKET; EGR PIPE | 3 | 1704- | A | |||
| 73 | I8-97309 945-0 | CLIP; VAC HOSE | 1 | 1704- | A | 04.027 (D) ID=21 & 9.8 | ||

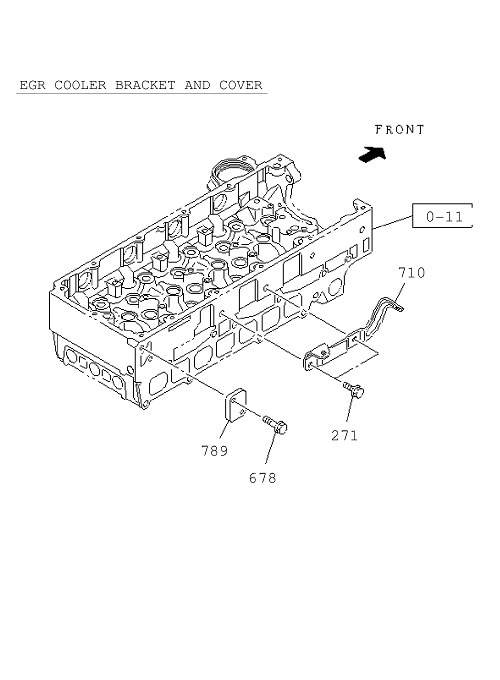

| 710 | I8-98230 108-0 | BRACKET; EGR COOLER | 1 | 1704- | A | |||
| 73 | I8-98324 179-0 | CLIP; VAC HOSE | 2 | 1704- | A | (E) | ||
| 73 | I8-97019 084-0 | CLIP; VAC HOSE | 1 | 1704- | A | (C) ID=7.5 & 7.5 | ||
| 16 | I0-49140 822-0 | STUD; EGR VLV | 2 | 1704- | A | 01 . 073 M8X22 L=4 0 | ||

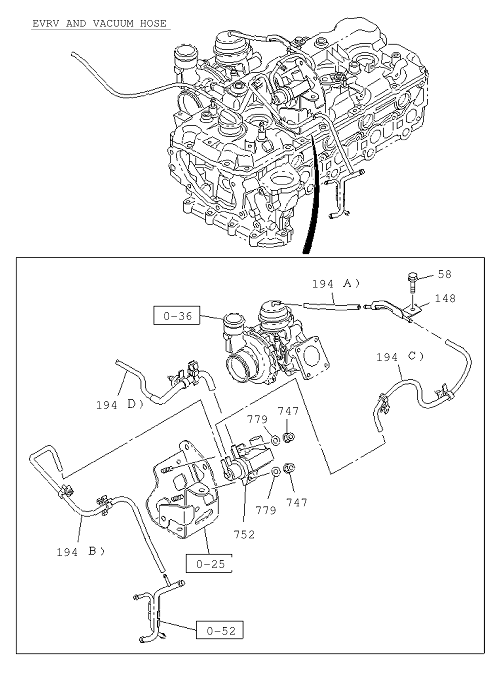

| 194 | I8-98239 038-1 | HOSE; VAC | 1 | 1704- | A | (D) | ||
| 271 | I0-28151 020-0 | BOLT; BRKT | 2 | 1704- | A | 03 .417 M10X2 0 FLANGE | ||
| 747 | I0-91180 106-0 | NUT; VAC REG VALVE | 2 | 1704- | A | 01 . 062 M6 FLANGE | ||
| 73 | I1-09709 182-0 | CLIP; VAC HOSE | 1 | 1704- | A | 00.854 (A) ID=11.8 & 7.5 | ||
| 148 | I8-98132 082-0 | PIPE; VAC | 1 | 1704- | A | |||
| 12 | I0-91180 208-0 | NUT; EGR VLV | 2 | 1704- | A | 01.540 M8 FLANGE | ||
| 2 | I0-58330 820-0 | BOLT; EGR VLV | 2 | 1704- | A | 01 . 758 (B) M8X2 0 HEX SOCKET | ||
| 655 | I8-98132 053-0 | PIPE; EGR VLV | 1 | 1704- | A | |||
| 194 | I8-98239 037-0 | HOSE; VAC | 1 | 1704- | A | (C) | ||
| 789 | I8-98228 434-0 | COVER; COOLER,EGR | 1 | 1704- | A | |||
| 752 | I8-98239 935-0 | VALVE; EVRV | 1 | 1704- | A | |||
| 194 | I0-14040 110-0 | HOSE; VAC | 1 | 1704- | A | (A) | ||
| 194 | I8-98228 439-0 | HOSE; VAC | 1 | 1704- | A | (B) | ||
| 58 | I0-28050 816-0 | BOLT; PIPE | 1 | 1704- | A | 02 .343 M8X16 FLANGE |
