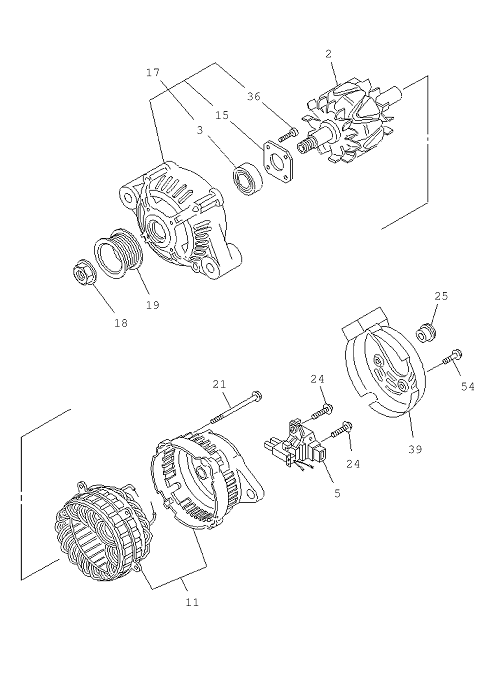

0-66 | GENERATOR
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 24 | I8-94455 161-0 | SCREW; RECTIFIER,GEN | 3 | 1705- | ||||
| 18 | I8-94123 043-0 | NUT; PULLEY,GEN | 1 | 1705- | .2777777777778 | |||
| 54 | I8-98231 359-0 | BOLT; RECTIFIER,GEN | 3 | |||||
| 11 | I8-98231 362-0 | COVER; RR,GEN | 1 | |||||
| 24 | I8-94455 161-0 | SCREW; RECTIFIER,GEN | 3 | |||||
| 39 | I8-98231 363-0 | COVER; END,RR COVER,GEN | 1 | 1705- | ||||
| 11 | I8-98231 362-0 | COVER; RR,GEN | 1 | 1705- | ||||
| 36 | I8-97142 562-0 | SCREW; FRT COVER | 4 | |||||
| 39 | I8-98231 363-0 | COVER; END,RR COVER,GEN | 1 | |||||
| 25 | I8-98231 365-0 | BUSHING; INSULATION TERMINAL | 1 | |||||
| 15 | I8-94406 982-0 | RETAINER; ROTOR,GEN | 1 | 2307 | ||||
| 17 | I8-98231 353-1 | COVER ASM; FRT,GEN | 1 | 1705- | ||||
| 54 | I8-98231 359-0 | BOLT; RECTIFIER,GEN | 3 | 1705- | ||||
| 15 | I8-94406 982-0 | RETAINER; ROTOR,GEN | 1 | 1705- | 2307 | |||
| 21 | I8-98231 358-0 | BOLT; THROUGH,GEN | 4 | |||||
| 25 | I8-98232 107-0 | BUSHING; INSULATION TERMINAL | 1 | 1705- | ||||
| 21 | I8-98231 358-0 | BOLT; THROUGH,GEN | 4 | 1705- | ||||
| 17 | I8-98231 353-1 | COVER ASM; FRT,GEN | 1 | |||||
| 5 | I8-97378 926-0 | HOLDER; BRUSH,GEN | 1 | 1705- | ||||
| 36 | I8-97142 562-0 | SCREW; FRT COVER | 4 | 1705- | ||||
| 2 | I8-98231 360-0 | ROTOR; GEN | 1 | 1705- | ||||
| 19 | I8-98231 352-0 | PULLEY; GEN | 1 | |||||
| 3 | I8-98231 355-0 | BEARING; ROTOR,GEN | 1 | 1705- | ||||
| 19 | I8-98231 352-0 | PULLEY; GEN | 1 | 1705- | ||||
| 2 | I8-98231 360-0 | ROTOR; GEN | 1 | |||||
| 18 | I8-94123 043-0 | NUT; PULLEY,GEN | 1 | .2777777777778 | ||||
| 3 | I8-98231 355-0 | BEARING; ROTOR,GEN | 1 | |||||
| 5 | I8-97378 926-0 | HOLDER; BRUSH,GEN | 1 |
