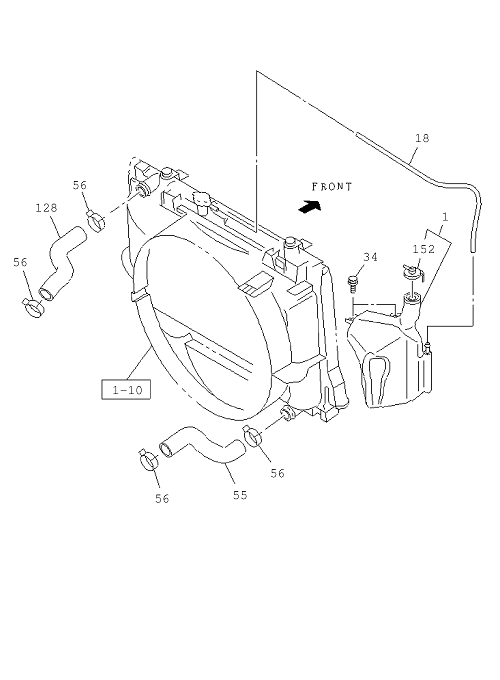

1-11 | RADIATOR HOSE AND SUB TANK
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 128 | I8-98090 629-2 | HOSE; WATER,RAD INL | 1 | 1704- | A | |||
| 34 | I8-98056 282-0 | BOLT; RESERVE TANK | 2 | 1704- | A | 09 . 744 M6X2 0 W/WASHER | ||
| 55 | I8-98222 236-0 | HOSE; WATER,RAD OUTLET | 1 | 1704- | A | |||
| 128 | I6-98090 629-0 | HOSE; WATER RAD INL | 1 | 1704- | A | (IADG) | ||
| 18 | I8-98102 344-2 | HOSE; RAD TO SURGE TANK | 1 | 1704- | A | ID=7 OD=12 L=580 | ||
| 56 | I8-97313 472-0 | CLIP; WATER HOSE,RAD | 4 | 1704- | A | ID=4 0.5 | ||
| 2 | I8-98189 898-0 | CAP; SURGE TANK | 1 | 1704- | A | |||
| 1 | I8-98095 701-2 | TANK; SURGE,RAD | 1 | 1704- | A |
