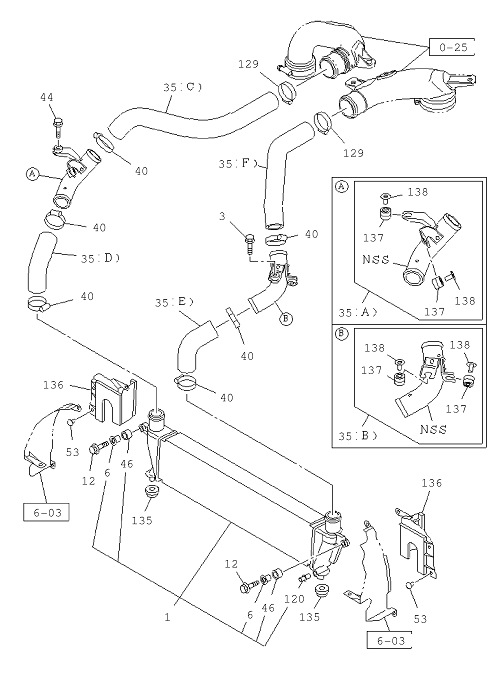

1-35 | CHARGE AIR COOLER
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 136 | I8-98166 398-0 | SEAL; CHARGE AIR COOLER | 1 | 1704- | A | |||
| 129 | I8-98133 396-0 | CLAMP; HOSE | 2 | 1704- | A | 03.162 ID=45-65 | ||
| 40 | I8-98133 396-0 | CLIP; RUBBER HOSE | 2 | 1704- | A | ID=45-65 | ||
| 118 | I8-98189 894-0 | COCK; DRAIN | 1 | 1704- | A | |||
| 12 | I8-98136 077-0 | BOLT; CHARGE AIR COOLER | 2 | 1704- | A | M8X32.5 W/PL WASHER | ||
| 138 | I8-98137 143-0 | COLLAR; RUBBER,PIPE | 2 | 1704- | A | |||
| 40 | I8-98133 396-0 | CLIP; RUBBER HOSE | 4 | 1704- | A | ID=45-65 | ||
| 53 | I8-94215 211-0 | CLIP; AIR DUCT | 6 | 1704- | A | 08.154 OD=22 L=10 . 7 | ||
| 137 | I8-98137 144-0 | RUBBER; PIPE | 2 | 1704- | A | |||
| 137 | I8-98137 144-0 | RUBBER; PIPE | 2 | 1704- | A | |||
| 1 | I8-98090 627-4 | COOLER; CHARGE AIR | 1 | 1704- | A | |||
| 44 | I8-98048 997-0 | BOLT; PIPE | 2 | 1704- | A | 16.063 M6X33 W/PL WASHER | ||
| 35 | I8-98065 696-2 | HOSE; CONNECTING | 1 | 1704- | A | (E) | ||
| 136 | I8-98166 396-0 | SEAL; CHARGE AIR COOLER | 1 | 1704- | A | |||
| 35 | I8-98065 553-1 | HOSE; CONNECTING | 1 | 1704- | A | (A) | ||
| 35 | I8-98065 695-2 | HOSE; CONNECTING | 1 | 1704- | A | (C) | ||
| 6 | I8-97942 932-0 | COLLAR; MTG,CHARGE AIR COOLER | 2 | 1704- | A | 3405 | ||
| 35 | I8-98350 057-0 | HOSE; CONNECTING | 1 | 1704- | A | (D) | ||
| 35 | I8-98065 698-2 | HOSE; CONNECTING | 1 | 1704- | A | (F) | ||
| 135 | I8-97249 541-1 | RUBBER; CUSHION | 2 | 1704- | A | 1270 | ||
| 46 | I8-97942 930-0 | RUBBER; MTG,CHARGE AIR COOLER | 2 | 1704- | A | 3406 | ||
| 138 | I8-98137 143-0 | COLLAR; RUBBER,PIPE | 2 | 1704- | A | |||
| 35 | I8-98065 554-1 | HOSE; CONNECTING | 1 | 1704- | A | (B) | ||
| 3 | I8-98048 997-0 | BOLT; CHARGE AIR COOLER | 2 | 1704- | A | 16.063 M6X33 W/PL WASHER |
