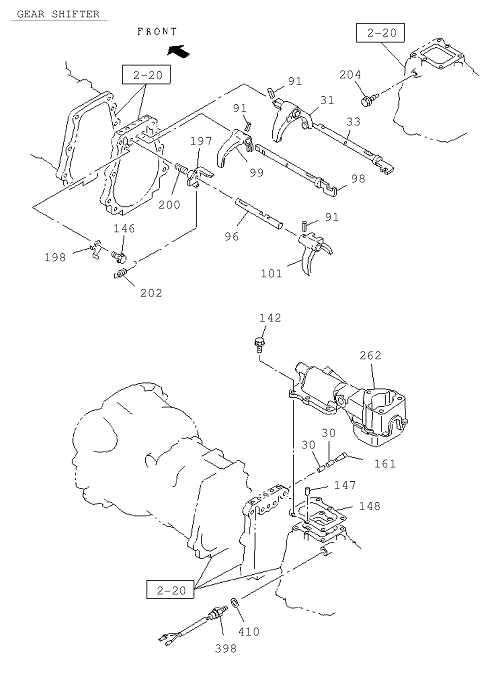

2-30 | GEAR SHIFTER AND QUADRAN BOX
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

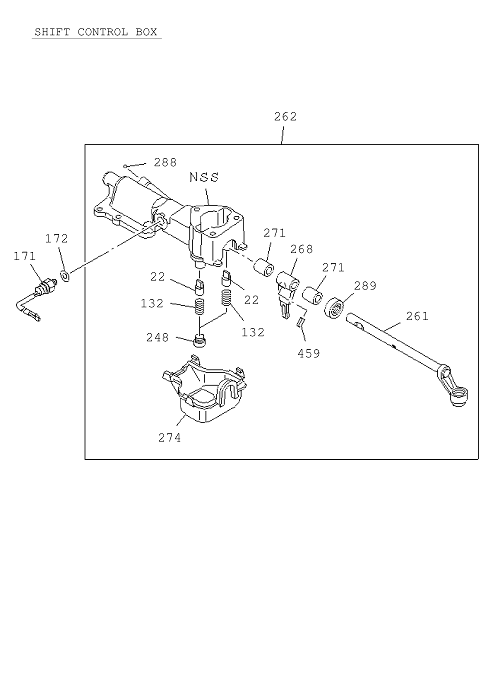

| 262 | I8-98219 761-0 | BOX ASM; SHIFT CONT | 1 | 1704- | A | |||
| 146 | I0-28050 820-0 | BOLT; REV INHIBITOR | 1 | 1704- | A | 04 .338 M8X20 FLANGE | ||
| 289 | I8-98017 744-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 1704- | A | |||
| 268 | I8-97184 895-0 | LEVER; CONT,INTERNAL | 1 | 1704- | A | |||
| 22 | I8-97181 326-0 | CAP; RETURN SPR,SHIFT BLOCK | 2 | 1704- | A | |||
| 31 | I8-94421 912-2 | ARM; SHIFT,LOW & 2ND | 1 | 1704- | A | |||
| 99 | I8-94421 911-2 | ARM; SHIFT,4TH & 3RD | 1 | 1704- | A | |||
| 197 | I8-94448 753-0 | INHIBITOR; REV SHIFT | 1 | 1704- | A | |||
| 148 | I8-97083 599-0 | GASKET; QUAD BOX | 1 | 1704- | A | |||
| 33 | I8-97019 061-2 | ROD; SHIFT,LOW & 2ND | 1 | 1704- | A | |||
| 200 | I8-94448 807-0 | SPRING; REV INHIBITOR,COMP | 1 | 1704- | A | |||
| 274 | I8-97181 324-1 | COVER; SHAFT,QUAD BOX | 1 | 1704- | A | |||
| 398 | I8-98103 750-0 | SWITCH; REV LAMP | 1 | 1704- | A | |||
| 172 | I8-94462 114-0 | GASKET; NEUTRAL SW | 1 | 1704- | A | 04 . 075 ID=14.2 | ||
| 271 | I8-98017 908-0 | BUSHING; QUAD BOX | 2 | 1704- | A | ID=14 L=12 | ||
| 410 | I9-09571 414-0 | GASKET; REV SW | 1 | 1704- | A | 08 . 955 ID=14.2 OD=20 | ||
| 132 | I8-97181 395-0 | SPRING; SELECT STOP | 2 | 1704- | A | |||
| 98 | I8-97019 060-3 | ROD; SHIFT,TOP & 3RD | 1 | 1704- | A | |||
| 147 | I9-08160 612-0 | PIN; KNOCK | 2 | 1704- | A | 04 . 510 OD=6 L=12 | ||
| 248 | I8-98210 983-0 | RETAINER; CONT BOX | 2 | 1704- | A | |||
| 101 | I8-97232 894-0 | ARM; SHIFT,REV & 5TH | 1 | 1704- | A | |||
| 30 | I5-33534 002-1 | PIN; INTER LK | 2 | 1704- | A | OD=5.5 L=10 | ||
| 198 | I8-94448 199-0 | BRACKET; REV INHIBITOR | 1 | 1704- | A | |||
| 288 | I9-00097 517-0 | PLUG; AIR BREATHER | 1 | 1704- | A | |||
| 459 | I8-97184 905-0 | PIN; SPR,ROD TO ARM | 1 | 1704- | A | OD=5 | ||
| 161 | I8-94239 543-1 | PLUG; INTER LK HOLE | 1 | 1704- | A | |||
| 91 | I8-94171 541-0 | PIN; SPR,SHIFT ARM | 3 | 1704- | A | 04 .303 D=4.2 L=25 | ||
| 261 | I8-97257 909-0 | ROD; GEAR CONT | 1 | 1704- | A | |||
| 142 | I8-97365 376-0 | BOLT; QUAD BOX | 4 | 1704- | A | 04 .356 M8X22 FLANGE | ||
| 171 | I8-98103 743-0 | SWITCH; NEUTRAL | 1 | 1704- | A | |||
| 204 | I8-98035 673-0 | STOPPER; REV INHIBITOR | 1 | 1704- | A | |||
| 96 | I8-94440 079-1 | ROD; SHIFT,5TH | 1 | 1704- | A | |||
| 202 | I8-97017 500-0 | SPRING; REV INHIBITOR,EXT | 1 | 1704- | A |
