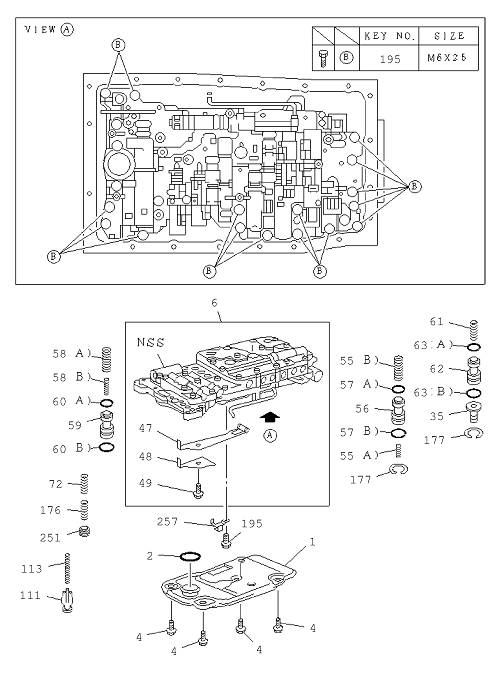

2-44 | AUTO TRANS CONTROL VALVE; LOWER BODY
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 56 | I8-98189 735-0 | PISTON; ACCUMLATOR | 1 | 1704- | B | |||
| 35 | I8-98189 477-0 | SPRING; LWR VLV BODY | 1 | 1704- | B | |||
| 1 | I8-98189 731-0 | STRAINER ASM; OIL,A/T | 1 | 1704- | B | |||
| 113 | I8-94479 930-0 | SPRING; CHECK BALL | 1 | 1704- | B | |||
| 2 | I8-98189 732-0 | GASKET; OIL STRAINER,A/T | 1 | 1704- | B | |||
| 195 | I8-94473 624-0 | BOLT; CLAMP | 16 | 1704- | B | M6X25 | ||
| 49 | I8-98189 500-0 | BOLT; DETENT SPR PLATE,A/T | 1 | 1704- | B | M6X14 | ||
| 48 | I8-98189 499-0 | PLATE; DETENT SPR,A/T | 1 | 1704- | B | |||
| 177 | I8-97025 821-0 | RING; SNAP | 2 | 1704- | B | ID=19 | ||
| 6 | I8-98189 497-0 | BODY ASM; VLV LWR,A/T | 1 | 1704- | B | |||
| 111 | I8-94479 931-0 | BODY; CHECK BALL | 1 | 1704- | B | |||
| 57 | I8-97184 889-0 | GASKET; 2ND SPD PISTON,A/T | 1 | 1704- | B | 04.167 (A) ID=24 | ||
| 63 | I8-98189 736-0 | GASKET; FWD CLU,A/T | 1 | 1704- | B | (B) ID=29 | ||
| 257 | I8-98189 740-0 | CLAMP; HARNESS | 1 | 1704- | B | |||
| 47 | I8-98189 498-0 | SPRING; DETENT,A/T | 1 | 1704- | B | |||
| 176 | I8-98189 482-0 | SPRING; ACCUM INNER | 1 | 1704- | B | |||
| 4 | I8-94479 927-0 | BOLT; OIL STRAINER,A/T | 4 | 1704- | B | 04 .265 M6X12 | ||
| 63 | I8-97184 885-0 | GASKET; FWD CLU,A/T | 1 | 1704- | B | 04 .241 (A) ID=20 | ||
| 58 | I8-97184 330-0 | SPRING; DIRECT CLU (C-2 ACCUM),A | 1 | 1704- | B | (A) | ||
| 57 | I8-98189 737-0 | GASKET; 2ND SPD PISTON,A/T | 1 | 1704- | B | (B) ID=34 | ||
| 62 | I8-98189 733-0 | PISTON; FWD CLU,A/T | 1 | 1704- | B | |||
| 251 | I8-98189 739-0 | VALVE; ACCUMULATOR | 1 | 1704- | B | |||
| 72 | I8-98189 483-0 | SPRING; ACCUMLATOR PISTON | 1 | 1704- | B | |||
| 55 | I8-98189 481-0 | SPRING; ACCUMLATOR PISTON | 1 | 1704- | B | (B) | ||
| 60 | I8-97184 886-0 | GASKET; DIRECT CLU PISTON,A/T | 1 | 1704- | B | 04 .241 (A) ID=27 | ||
| 61 | I8-98189 478-0 | SPRING; FWD CLU,(C-1 ACUUM),A/T | 1 | 1704- | B | |||
| 59 | I8-98189 734-0 | PISTON; DIRECT CLU,A/T | 1 | 1704- | B | |||
| 60 | I8-98189 737-0 | GASKET; DIRECT CLU PISTON,A/T | 1 | 1704- | B | 04 .241 (B) ID=34 | ||
| 55 | I8-98189 480-0 | SPRING; ACCUMLATOR PISTON | 1 | 1704- | B | (A) | ||
| 58 | I8-98189 479-0 | SPRING; DIRECT CLU (C-2 ACCUM),A | 1 | 1704- | B | (B) |
