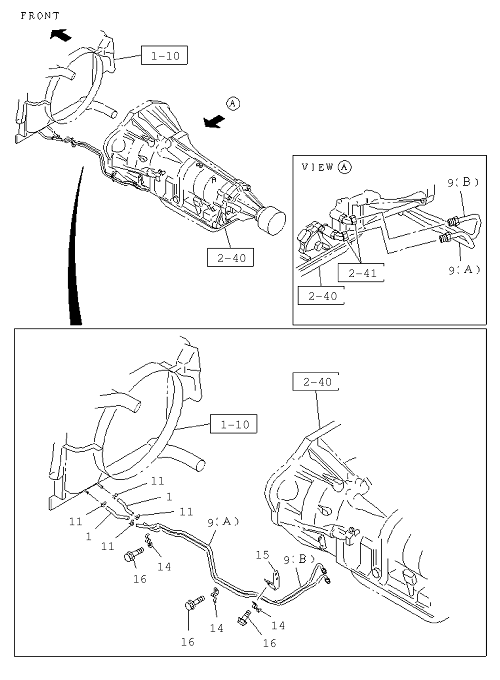

2-53 | TRANSMISSION OIL COOLER SYSTEM
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I0-02259 300-0 | HOSE; ATF | 2 | 1704- | B | L=180 SERVICED BY L=3000 | ||
| 16 | I0-28050 816-0 | BOLT; CLIP,ENG SIDE | 3 | 1704- | B | 02.343 M8X16 FLANGE | ||
| 9 | I8-98100 272-2 | PIPE; ATF,INL,A/T | 1 | 1704- | B | (A) INLET | ||
| 11 | I8-98008 165-0 | CLIP; PIPE | 4 | 1704- | B | |||
| 14 | I8-98008 163-0 | CLIP; PIPE TO ENG SIDE | 3 | 1704- | B | |||
| 15 | I8-98100 277-0 | BRACKET; ATF PIPE | 1 | 1704- | B | |||
| 9 | I8-98100 274-2 | PIPE; ATF,INL,A/T | 1 | 1704- | B | (B) RETURN |
