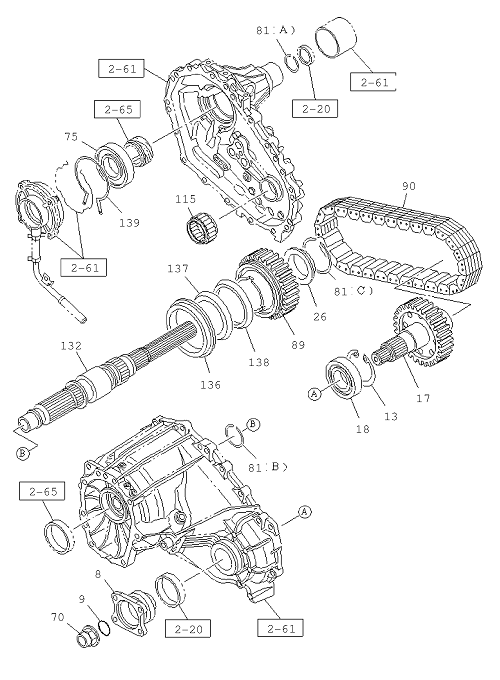

2-66 | MANUAL TRANSFER GEAR; OUTPUT
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 8 | I8-97319 825-2 | FLANGE; OUTPUT | 1 | 1704- | B | |||
| 26 | I8-97239 774-0 | WASHER; THRUST | 1 | 1704- | B | |||
| 81 | I8-97305 407-0 | RING; SNAP | 1 | 1704- | B | (C) T=2.15 RED | ||
| 18 | I8-94422 172-A | BEARING; BALL,OUTPUT,FRT | 1 | 1704- | B | (IADG) NSK | ||
| 136 | I8-94363 054-1 | BLOCK RING; 2-4 | 1 | 1704- | B | 04 .383 Z=48 | ||
| 81 | I8-97305 405-0 | RING; SNAP | 1 | 1704- | B | (B) T=1.4 | ||
| 81 | I8-97305 410-0 | RING; SNAP | 1 | 1704- | B | (C) T=2.00 WHITE | ||
| 18 | I8-94422 172-A | BEARING; BALL,OUTPUT,FRT | 1 | 1704- | B | (IADG) NSK | ||
| 70 | I8-97358 603-0 | NUT; RR OUTPUT SHAFT,TRANSFER | 1 | 1704- | B | M3 6 FLANGE | ||
| 17 | I8-97231 853-0 | SHAFT; OUTPUT | 1 | 1704- | B | |||
| 81 | I8-97305 409-0 | RING; SNAP | 1 | 1704- | B | (C) T=2.05 BLUE | ||
| 81 | I8-97305 404-1 | RING; SNAP | 1 | 1704- | B | (A) T=1.9 | ||
| 90 | I8-98275 645-0 | CHAIN; DRIVE | 1 | 1704- | B | |||
| 89 | I8-98013 525-0 | SPROCKET; DRIVE | 1 | 1704- | B | Z=48 | ||
| 132 | I8-98013 925-1 | SHAFT; MAIN,TRANSFER | 1 | 1704- | B | Z=34-36-26-27 | ||
| 81 | I8-97305 408-0 | RING; SNAP | 1 | 1704- | B | (C) T=2.10 NON COLOR | ||
| 75 | I8-97234 737-A | BEARING; BALL,RR OUTPUT | 1 | 1704- | B | (IADG) | ||
| 9 | I8-94483 035-0 | GASKET; SHAFT | 1 | 1704- | B | 04.552 ID=2 9.7 OD=3 6 . 1 | ||
| 115 | I8-97234 747-0 | BEARING; NEEDLE | 1 | 1704- | B | |||
| 137 | I8-94363 055-1 | RING; OUTSIDE,2-4 | 1 | 1704- | B | 04 .383 OD=90.0 | ||
| 139 | I8-97305 012-0 | RING; RETAINING,RR OUTPUT | 1 | 1704- | B | ID=76 | ||
| 138 | I8-94363 056-0 | RING; INSIDE,2-4 | 1 | 1704- | B | 04 .383 OD=95.8 | ||
| 75 | I8-97234 737-A | BEARING; BALL,RR OUTPUT | 1 | 1704- | B | (IADG) | ||
| 115 | I6-97234 747-0 | BEARING; NEEDLE | 1 | 1704- | B | (IADG) | ||
| 13 | I8-97305 402-0 | RING; SNAP,OUTPUT,FRT | 1 | 1704- | B | ID=67 |
