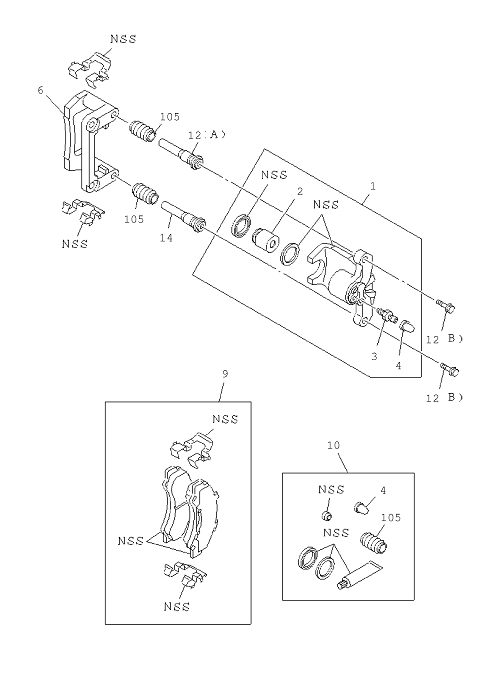

3-06 | REAR DISC BRAKE CALIPER
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 14 | I8-98078 175-0 | PIN; GUIDE,CALIPER | 2 | 1704- | A | |||
| 1 | I8-98232 526-0 | CALIPER; RR DISC BRK | 1 | 1704- | A | |||
| 9 | I8-98232 543-0 | PAD KIT; CALIPER,RR | 1 | 1704- | A | WO/GREASE | ||
| 12 | I8-98078 176-0 | PIN; RET,CALIPER,RR DISC BRK | 2 | 1704- | A | (A) | ||
| 105 | I8-98078 193-0 | BOOT; PIN | 4 | 1704- | A | |||
| 10 | I8-98232 545-0 | REPAIR KIT; DISC BRK,RR | 1 | 1704- | A | W/GREASE | ||
| 12 | I8-98078 192-0 | PIN; RET,CALIPER,RR DISC BRK | 4 | 1704- | A | (B) | ||
| 6 | I8-98232 532-0 | BRACKET; SUPPORT,RR DISC BRK | 2 | 1704- | A | |||
| 1 | I8-98232 525-0 | CALIPER; RR DISC BRK | 1 | 1704- | A | |||
| 4 | I8-98050 479-0 | CAP; BLEEDER S CREW,CALIPER,RR | 2 | 1704- | A | .6291666666667 | ||
| 2 | I8-98232 529-0 | PISTON; CALIPER,RR | 2 | 1704- | A | |||
| 3 | I8-98050 476-0 | SCREW; BLEEDER,CALIPER,RR | 2 | 1704- | A | .6291666666667 |
