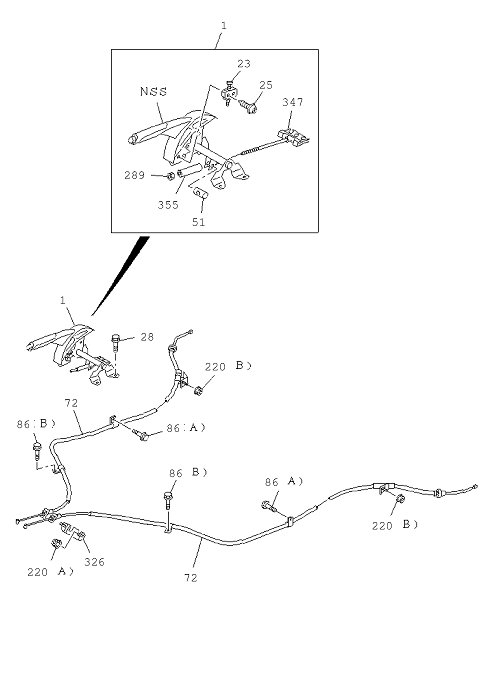

3-11 | PARKING BRAKE CONTROL
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 86 | I0-28650 630-0 | BOLT | 2 | 1704- | AB | 03.680 (B) M6X3 0 FLANGE | ||
| 28 | I0-28650 820-0 | BOLT; HAND BRK LEVER | 4 | 1704- | AB | 01.531 M8X20 FLANGE | ||
| 86 | I0-28650 620-0 | BOLT | 2 | 1704- | AB | 03.162 (A) M6X20 FLANGE | ||
| 25 | I8-97103 556-0 | SCREW; SW,PARKING BRK | 1 | 1704- | AB | |||
| 72 | I8-98198 317-0 | CABLE; PARKING BRK | 1 | 1704- | A | (A) | ||
| 347 | I8-97947 495-0 | EQUALIZER; HAND BRK | 1 | 1704- | AB | |||
| 72 | I8-98198 316-0 | CABLE; PARKING BRK | 1 | 1704- | A | (A) | ||
| 51 | I8-97947 496-0 | PIN; JOINT,RELAY LEVER | 1 | 1704- | AB | |||
| 23 | I8-97947 494-0 | SWITCH; PARKING BRK | 1 | 1704- | AB | |||
| 1 | I8-98349 961-0 | STEM ASM; PARKING BRK | 1 | 1704- | A | (A) | ||
| 1 | I8-98061 827-0 | STEM ASM; PARKING BRK | 1 | 1704- | B | (B) | ||
| 289 | I8-97355 929-0 | NUT; PARKING BRK | 1 | 1704- | AB | 4785 | ||
| 326 | I8-98221 384-1 | RETAINER; PARK CABLE | 1 | 1704- | AB | |||
| 220 | I0-91180 106-0 | NUT; CLIP,PARKING CONT CABLE | 2 | 1704- | A | 01 . 062 (B) M6 FLANGE | ||
| 355 | I8-97947 497-0 | SPACER; HAND BRK LEVER | 1 | 1704- | AB | |||
| 220 | I0-91180 106-0 | NUT; CLIP,PARKING CONT CABLE | 2 | 1704- | AB | 01 . 062 (B) M6 FLANGE | ||
| 72 | I8-98198 318-0 | CABLE; PARKING BRK | 1 | 1704- | B | (B) | ||
| 220 | I0-91180 108-0 | NUT; CLIP,PARKING CONT CABLE | 2 | 1704- | AB | 01 . 062 (A) M8 FLANGE | ||
| 72 | I8-98198 319-0 | CABLE; PARKING BRK | 1 | 1704- | B | (B) |
