3-50 | BRAKE PIPING, OIL, MASTRE CYLINDER
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

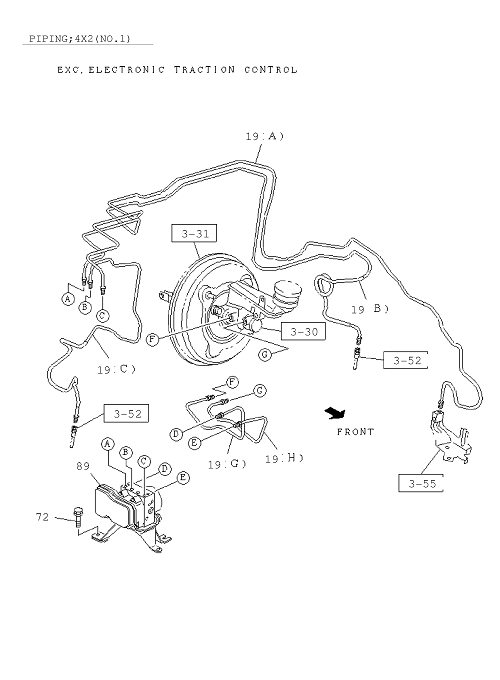

| 19 | I8-98099 744-2 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | A | EXC. ELECTRONIC TRACTION (H) | ||
| 129 | I0-28650 616-0 | BOLT; BRKT | 6 | 1704- | A | 02 . 343 M6X16 FLANGE | ||
| 184 | I0-28650 616-0 | BOLT; CLIP | 2 | 1704- | A | 02 . 343 (A) M6X16 FLANGE | ||

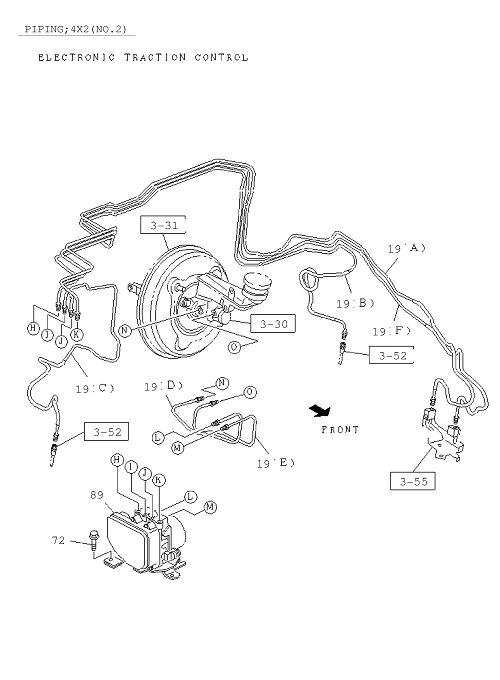

| 19 | I8-98344 725-1 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | A | ELECTRONIC TRACTION CONTR (O) | ||
| 19 | I8-98309 311-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | A | ELECTRONIC TRACTION CONTR (N) | ||
| 89 | I8-98374 172-0 | HYDRAULIC UNIT; ANTI LOCK BRK | 1 | 1704- | A | ELECTRONIC TRACTION CONTR (B) | ||
| 19 | I8-98099 732-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | A | EXC. ELECTRONIC TRACTION (G) | ||
| 184 | I0-28050 612-0 | BOLT; CLIP | 2 | 1704- | A | 03.162 (B) M6X12 FLANGE | ||
| 19 | I8-98309 308-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | A | ELECTRONIC TRACTION CONTR (K) | ||
| 13 | I0-29260 845-0 | BOLT; VLV TO BRKT | 2 | 1704- | B | M8X4 5 FLANGE | ||
| 19 | I8-98309 291-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | A | ELECTRONIC TRACTION CONTR (J) | ||

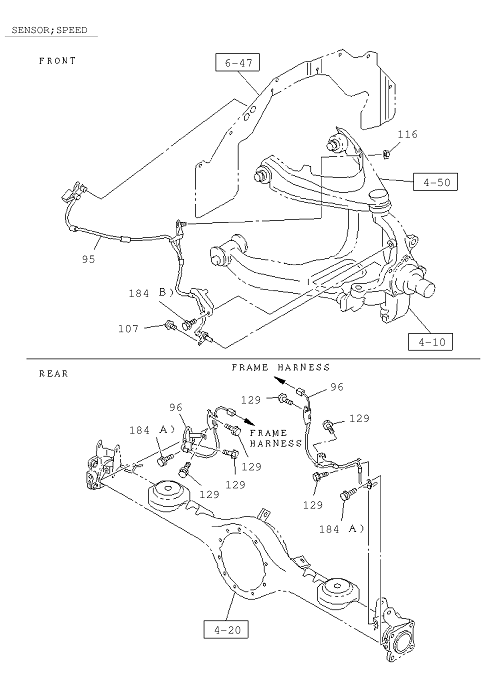

| 95 | I8-98292 433-0 | SENSOR; SPD,FRT WHEEL | 1 | 1704- | A | |||
| 96 | I8-98349 579-0 | SENSOR; SPD,RR WHEEL | 1 | 1704- | A | |||
| 19 | I8-98221 721-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | B | (D) | ||
| 19 | I8-98159 938-1 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | A | EXC. ELECTRONIC TRACTION l T ^ | ||
| 89 | I8-98285 186-0 | HYDRAULIC UNIT; ANTI LOCK BRK | 1 | 1704- | A | EXC. ELECTRONIC TRACTION (A) | ||

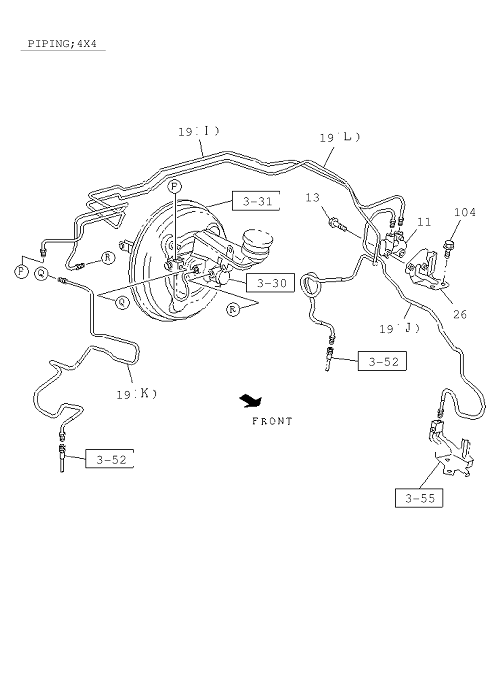

| 26 | I8-98101 970-1 | BRACKET; PROPORTIONING VLV | 1 | 1704- | B | |||
| 19 | I8-98099 721-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | B | (B) | ||
| 19 | I8-98309 309-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | A | ELECTRONIC TRACTION CONTR (M) | ||
| 95 | I8-98292 432-0 | SENSOR; SPD,FRT WHEEL | 1 | 1704- | A | |||
| 116 | I0-91180 108-0 | NUT | 2 | 1704- | A | 01. 062 M8 FLANGE | ||
| 96 | I8-98349 580-0 | SENSOR; SPD,RR WHEEL | 1 | 1704- | A | |||
| 104 | I0-28650 616-0 | BOLT; BRKT TO BODY | 2 | 1704- | B | 02 . 343 M6X16 FLANGE | ||
| 19 | I8-98099 727-1 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | B | (C) | ||
| 11 | I8-97235 339-2 | VALVE; BRK CONT | 1 | 1704- | B | |||
| 107 | I0-28050 612-0 | BOLT; WHEEL SPD SENSOR | 2 | 1704- | A | 03.162 M6X12 FLANGE | ||
| 19 | I8-98099 718-4 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | B | ( I ) | ||
| 72 | I0-28650 616-0 | BOLT; BRKT TO BODY | 3 | 1704- | A | 02 . 343 M6X16 FLANGE | ||
| 19 | I8-98099 730-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | A | EXC. ELECTRONIC TRACTION (E) | ||
| 19 | I8-98099 739-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | A | ELECTRONIC TRACTION CONTR (L) | ||
| 19 | I8-98099 731-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1704- | A | EXC. ELECTRONIC TRACTION (F) |
