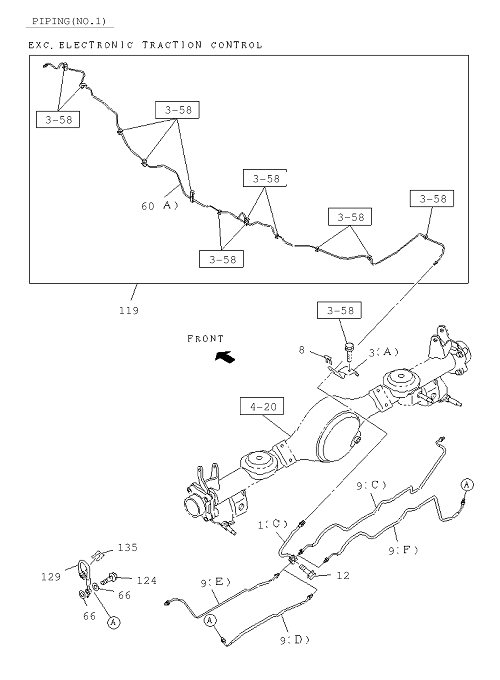

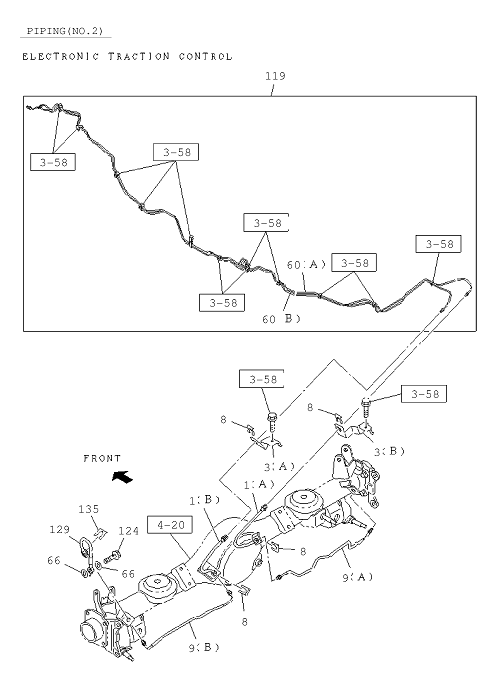

3-55 | BRAKE PIPING; OIL REAR
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 12 | I0-28650 830-0 | BOLT; FLEX HOSE TO RR AXLE | 1 | 1704- | B | 03 .403 M8X3 0 FLANGE | ||
| 135 | I8-97360 054-0 | CLIP; FLEX HOSE | 2 | 1704- | A | |||
| 129 | I8-98198 323-0 | HOSE; FLEX,RR DISC | 2 | 1704- | A | |||
| 3 | I8-98198 325-0 | BRACKET; FLEX HOSE,RR BRK | 1 | 1704- | A | ELECTRONIC TRACTION CONTROL< (B) | ||
| 8 | I8-97360 054-0 | CLIP; RR BRK | 4 | 1704- | A | ELECTRONIC TRACTION CONTROL< | ||
| 1 | I8-98198 320-0 | HOSE; FLEX,RR BRK | 1 | 1704- | B | (C) | ||
| 1 | I8-98198 321-0 | HOSE; FLEX,RR BRK | 1 | 1704- | A | ELECTRONIC TRACTION CONTROL< (A) | ||
| 60 | I8-98197 852-0 | PIPE ASM; BRK | 1 | 1704- | AB | (A) | ||
| 9 | I8-98191 436-0 | PIPE; BRK,RR AXLE | 1 | 1704- | A | EXC. ELECTRONIC TRACTION CON (D) | ||
| 9 | I8-98191 434-0 | PIPE; BRK,RR AXLE | 1 | 1704- | A | ELECTRONIC TRACTION CONTROL< (B) | ||

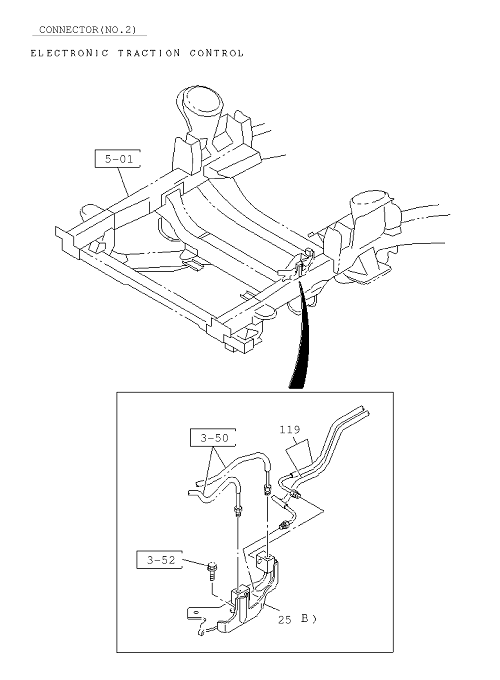

| 25 | I8-98099 785-1 | CONNECTOR | 1 | 1704- | A | ELECTRONIC TRACTION CONTROL< (B) | ||
| 66 | I9-09571 410-0 | GASKET; BRK HOSE | 4 | 1704- | A | 08 . 955 ID=10.2 OD=16.0 | ||
| 1 | I8-98198 320-0 | HOSE; FLEX,RR BRK | 1 | 1704- | A | EXC. ELECTRONIC TRACTION CON (C) | ||
| 8 | I8-97360 054-0 | CLIP; RR BRK | 1 | 1704- | B | |||
| 124 | I8-98014 005-0 | BOLT; EYE,FLEX HOSE,RR BRK | 2 | 1704- | A | 04.681 M10X2 2 | ||
| 12 | I0-28650 830-0 | BOLT; FLEX HOSE TO RR AXLE | 1 | 1704- | A | EXC. ELECTRONIC TRACTION CONT 03.403 M8X3 0 FLANGE | ||
| 25 | I8-98099 784-1 | CONNECTOR | 1 | 1704- | A | EXC. ELECTRONIC TRACTION CON (A) | ||
| 9 | I8-98191 437-0 | PIPE; BRK,RR AXLE | 1 | 1704- | B | (F) | ||
| 25 | I8-98099 784-1 | CONNECTOR | 1 | 1704- | B | (A) | ||
| 3 | I8-98198 326-0 | BRACKET; FLEX HOSE,RR BRK | 1 | 1704- | AB | (A) | ||
| 8 | I8-97360 054-0 | CLIP; RR BRK | 1 | 1704- | A | EXC. ELECTRONIC TRACTION CON | ||
| 60 | I8-98197 851-0 | PIPE ASM; BRK | 1 | 1704- | A | ELECTRONIC TRACTION CONTROL< (B) | ||
| 119 | I8-98197 849-0 | PIPE; BRK,2WAY TO RR | 1 | 1704- | B | (A) | ||
| 9 | I8-98191 433-0 | PIPE; BRK,RR AXLE | 1 | 1704- | A | ELECTRONIC TRACTION CONTROL< (A) | ||
| 1 | I8-98198 322-0 | HOSE; FLEX,RR BRK | 1 | 1704- | A | ELECTRONIC TRACTION CONTROL< (B) | ||
| 119 | I8-98197 850-0 | PIPE; BRK,2WAY TO RR | 1 | 1704- | A | ELECTRONIC TRACTION CONTROL< (B) | ||
| 119 | I8-98197 849-0 | PIPE; BRK,2WAY TO RR | 1 | 1704- | A | EXC. ELECTRONIC TRACTION CON (A) | ||
| 9 | I8-98191 438-0 | PIPE; BRK,RR AXLE | 1 | 1704- | B | (E) | ||
| 9 | I8-98191 435-0 | PIPE; BRK,RR AXLE | 1 | 1704- | A | EXC. ELECTRONIC TRACTION CON (C) |
