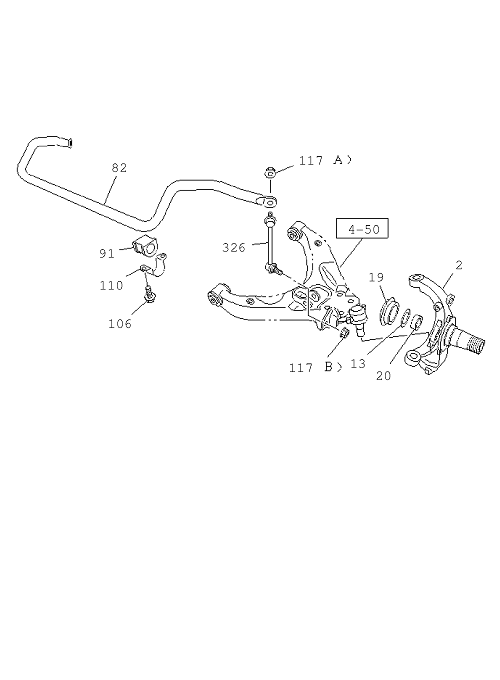

4-10 | FONT AXLE
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-98303 899-0 | KNUCKLE; FRT AXLE | 1 | 1704- | A | |||
| 326 | I8-97944 568-0 | LINK ASM; STABILIZER | 1 | 1704- | AB | |||
| 326 | I6-97944 569-0 | LINK ASM STABILIZER | 1 | 1704- | AB | (IADG) | ||
| 13 | I8-94407 718-0 | WASHER; THRUST,KNUCKLE | 2 | 1704- | B | ID=34 W/OIL GROOVE | ||
| 106 | I0-28660 825-0 | BOLT; CAP FIX | 4 | 1704- | AB | 02 .277 M8X25 FLANGE | ||
| 117 | I8-98162 763-0 | NUT; STAB BAR BUSHING | 2 | 1704- | AB | (A) | ||
| 110 | I8-97947 044-0 | CLAMP; STAB TO ROD | 2 | 1704- | AB | |||
| 19 | I8-98036 595-0 | SEAL; OIL,KNUCKLE | 2 | 1704- | B | |||
| 326 | I8-97944 569-0 | LINK ASM; STABILIZER | 1 | 1704- | AB | |||
| 2 | I8-98303 904-0 | KNUCKLE; FRT AXLE | 1 | 1704- | B | |||
| 326 | I6-97944 568-0 | LINK ASM STABILIZER | 1 | 1704- | AB | (IADG) | ||
| 20 | I8-94407 708-A | BEARING KNUCKLE | 2 | 1704- | B | (IADG) | ||
| 326 | I6-97944 569-0 | LINK ASM STABILIZER | 1 | 1704- | AB | (IADG) | ||
| 326 | I6-97944 568-0 | LINK ASM STABILIZER | 1 | 1704- | AB | (IADG) | ||
| 20 | I8-94407 708-A | BEARING; KNUCKLE | 2 | 1704- | B | (IADG) | ||
| 2 | I8-98303 903-0 | KNUCKLE; FRT AXLE | 1 | 1704- | A | |||
| 117 | I8-98177 957-1 | NUT; STAB BAR BUSHING | 2 | 1704- | AB | (B) | ||
| 91 | I8-97947 946-1 | BUSHING; RUBBER,STAB BAR | 2 | 1704- | AB | |||
| 2 | I8-98303 900-0 | KNUCKLE; FRT AXLE | 1 | 1704- | B | |||
| 82 | I8-97947 947-0 | BAR; STAB,FRT SUSP | 1 | 1704- | AB |
