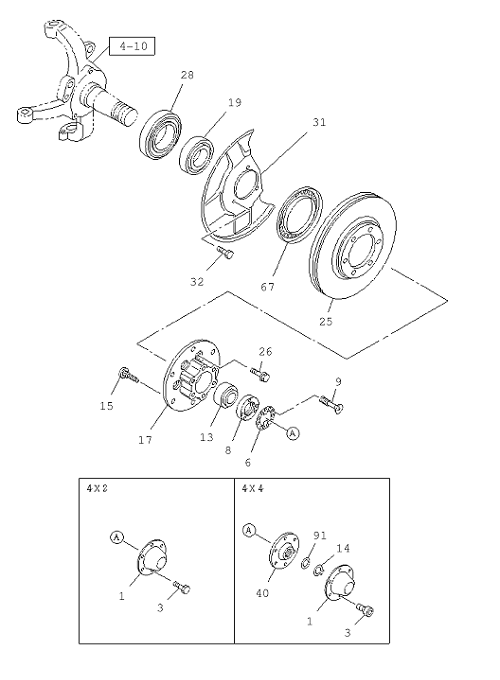

4-11 | FRONT HUB AND DRUM OR ROTOR
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 32 | I8-98006 352-0 | BOLT; DUST COVER TO KNUCKLE | 6 | 1704- | AB | M8X10 W/LK WASHER | ||
| 6 | I8-94442 398-0 | WASHER; LK,FRT HUB | 2 | 1704- | AB | T=1.8 OD=6 5 | ||
| 31 | I8-98062 190-0 | COVER; DUST,FRT BRAKE | 1 | 1704- | A | |||
| 40 | I8-98197 869-0 | FLANGE; FRT WHEEL HUB | 2 | 1704- | B | |||
| 91 | I8-94178 929-0 | SPACER; HUB BRG | AR | 1704- | B | 06 . 323 T=0.20 | ||
| 91 | I8-94178 930-0 | SPACER; HUB BRG | AR | 1704- | B | 06.323 T=0 . 30 | ||
| 28 | I6-98036 594-0 | SEAL OIL FR HUB | 2 | 1704- | AB | (IADG) | ||
| 1 | I8-97944 565-0 | CAP; HUB,FRT AXLE | 2 | 1704- | AB | |||
| 26 | I8-98006 065-0 | BOLT; BRK,DISC TO HUB | 12 | 1704- | AB | M12X31.5 FLANGE | ||
| 3 | I0-20951 020-0 | BOLT; HUB CAP,FRT WHEEL | 12 | 1704- | A | 06.174 (A) M10X20 | ||
| 28 | I8-98036 594-0 | SEAL; OIL,FRT HUB | 2 | 1704- | AB | |||
| 17 | I8-98054 665-0 | HUB; FRT AXLE | 2 | 1704- | AB | |||
| 14 | I9-09180 028-0 | RING; SPR,FRT WHEEL | 2 | 1704- | B | 08.934 ID=25.9 | ||
| 91 | I8-94178 932-0 | SPACER; HUB BRG | AR | 1704- | B | 06 . 323 T=1.00 | ||
| 31 | I8-98062 188-0 | COVER; DUST,FRT BRAKE | 1 | 1704- | B | |||
| 13 | I8-94227 041-A | BEARING; HUB OUTER, FRT AXLE | 2 | 1704- | AB | (IADG) 06.311 NSK | ||
| 31 | I8-98062 191-0 | COVER; DUST,FRT BRAKE | 1 | 1704- | A | |||
| 19 | I8-94258 819-A | BEARING; HUB INNER, FRT AXLE | 2 | 1704- | AB | (IADG) 06.314 NSK | ||
| 31 | I8-98062 189-0 | COVER; DUST,FRT BRAKE | 1 | 1704- | B | |||
| 3 | I8-98117 920-0 | BOLT; HUB CAP,FRT WHEEL | 12 | 1704- | B | (B) M10X33 | ||
| 9 | I8-98008 301-0 | SCREW; ADJ,NUT | 6 | 1704- | AB | M4X8 CK-HEAD | ||
| 91 | I8-94178 931-0 | SPACER; HUB BRG | AR | 1704- | B | 06 . 323 T=0.50 | ||
| 15 | I8-97944 564-1 | PIN; WHEEL,FRT AXLE | 12 | 1704- | AB | M12X37 . 5 | ||
| 8 | I8-94442 399-1 | NUT; ADJ,FRT HUB | 2 | 1704- | AB | ID=40 OD=6 5 T= 8 | ||
| 17 | I6-98054 665-0 | HUB FR AXLE ,D-MAX | 2 | 1704- | AB | (IADG) | ||
| 19 | I8-94258 819-A | BEARING; HUB INNER,FRT AXLE | 2 | 1704- | AB | (IADG) 06.314 NSK | ||
| 13 | I8-94227 041-A | BEARING; HUB OUTER,FRT AXLE | 2 | 1704- | AB | (IADG) 06.311 NSK | ||
| 67 | I8-97238 280-0 | ROTOR; SENSOR | 2 | 1704- | A | |||
| 25 | I8-97948 806-1 | ROTOR; DISC BRK,FRT | 2 | 1704- | AB |
