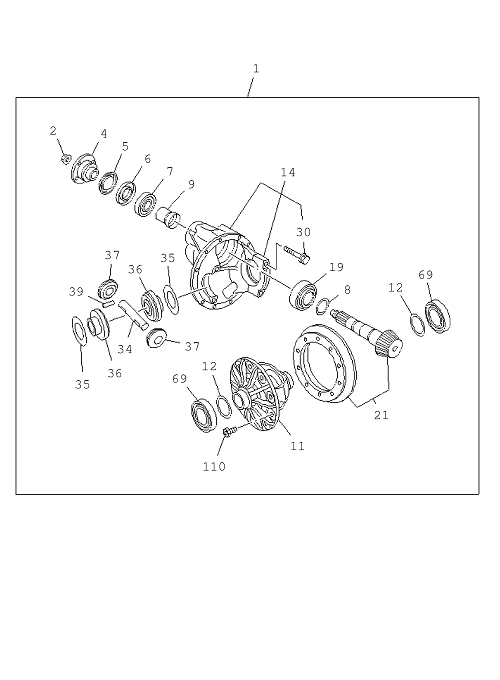

| 8 |
I9-41519 166-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2 .44 |
| 19 |
I9-00093 621-A |
|
BEARING; FINAL PINION |
1 |
1704- |
|
B |
(IADG) NSK |
| 7 |
I8-94472 099-A |
|
BEARING F/PINION,PT |
1 |
1704- |
|
B |
(IADG) 05.484 NSK |
| 35 |
I5-41562 005-1 |
|
WASHER; THRUST,SIDE GEAR |
2 |
1704- |
|
B |
T=1.00 |
| 7 |
I8-94472 099-A |
|
BEARING F/PINION,PT |
1 |
1704- |
|
B |
(IADG) 05.484 NSK |
| 21 |
I8-98104 945-1 |
|
GEAR SET; FINAL DRIVE,FRT |
1 |
1704- |
|
B |
41/10 |
| 8 |
I9-41519 161-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2.34 |
| 12 |
I9-41519 109-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1704- |
|
B |
T=0 . 24 |
| 39 |
I9-09878 096-0 |
|
PIN; LK,CROSS PIN |
1 |
1704- |
|
B |
OD= 5 L=3 5 |
| 7 |
I8-94472 100-1 |
|
BEARING; PINION,OUTER |
1 |
1704- |
|
B |
05.484 JTEKT |
| 8 |
I9-41519 171-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2.54 |
| 9 |
I8-94472 118-0 |
|
COLLAR; DIST,PINION |
1 |
1704- |
|
B |
|
| 8 |
I9-41519 153-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2.18 |
| 12 |
I8-97130 387-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1704- |
|
B |
T=0.50 |
| 11 |
I8-97038 515-1 |
|
CAGE; FINAL PINION |
1 |
1704- |
|
B |
|
| 8 |
I9-41519 169-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2.50 |
| 8 |
I9-41519 154-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2.20 |
| 12 |
I8-97130 386-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1704- |
|
B |
T=0 . 10 |
| 4 |
I8-94318 527-6 |
|
COUPLING; FINAL DRIVE PINION |
1 |
1704- |
|
B |
|
| 8 |
I9-41519 168-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2 .48 |
| 19 |
I9-00093 621-A |
|
BEARING; FINAL PINION |
1 |
1704- |
|
B |
(IADG) NSK |
| 8 |
I9-41519 158-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2 .28 |
| 8 |
I9-41519 157-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2 .26 |
| 69 |
I9-00093 074-A |
|
BEARING; DIFF SIDE |
2 |
1704- |
|
B |
(IADG) 05.536 NSK |
| 35 |
I5-41562 006-1 |
|
WASHER; THRUST,SIDE GEAR |
2 |
1704- |
|
B |
T=1 . 05 |
| 36 |
I8-97079 519-2 |
|
GEAR; SIDE,DIFF |
2 |
1704- |
|
B |
Z = 17 |
| 37 |
I8-97079 518-0 |
|
GEAR; PINION DIFF |
2 |
1704- |
|
B |
Z = 10 |
| 8 |
I9-41519 172-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2.56 |
| 7 |
I8-94472 099-A |
|
BEARING; PINION,OUTER |
1 |
1704- |
|
B |
(IADG) 05.484 NSK |
| 34 |
I9-41521 044-1 |
|
PIN; CROSS,DIFF PINION |
1 |
1704- |
|
B |
5517 |
| 12 |
I9-41519 111-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1704- |
|
B |
T=0.15 |
| 8 |
I9-41519 156-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2 .24 |
| 8 |
I9-41519 160-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2 .32 |
| 19 |
I9-00093 621-A |
|
BEARING; PINION,INNER |
1 |
1704- |
|
B |
(IADG) NSK |
| 8 |
I9-41519 167-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2 .46 |
| 8 |
I9-41519 162-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2.36 |
| 69 |
I9-00093 074-A |
|
BEARING; DIFF CAGE |
2 |
1704- |
|
B |
(IADG) 05.536 NSK |
| 8 |
I9-41519 159-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2.30 |
| 35 |
I5-41562 007-1 |
|
WASHER; THRUST,SIDE GEAR |
2 |
1704- |
|
B |
T=1 . 10 |
| 7 |
I8-94472 099-A |
|
BEARING F/PINION,PT |
1 |
1704- |
|
B |
(IADG) 05.484 NSK |
| 5 |
I8-94318 409-1 |
|
COVER; DUST,PINION,FINAL DRIVE |
1 |
1704- |
|
B |
|
| 2 |
I8-94376 262-0 |
|
NUT; FINAL DRIVE PINION |
1 |
1704- |
|
B |
M18 LOCK NUT |
| 30 |
I8-94376 322-0 |
|
BOLT; DIFF CAGE SETTING |
4 |
1704- |
|
B |
05.387 M12X62 |
| 8 |
I9-41519 165-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2.42 |
| 14 |
I8-98104 910-2 |
|
CARRIER ASM; FINAL DRIVE,FRT AXL |
1 |
1704- |
|
B |
|
| 6 |
I8-94318 520-2 |
|
SEAL; OIL,FINAL PINION |
1 |
1704- |
|
B |
|
| 8 |
I9-41519 163-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2.38 |
| 1 |
I8-98104 903-0 |
|
DRIVE ASM; FINAL,FRT |
1 |
1704- |
|
B |
41/10 |
| 8 |
I9-41519 164-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2.40 |
| 8 |
I9-41519 170-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2.52 |
| 8 |
I9-41519 155-1 |
|
SHIM; PINION,FINAL DRIVE |
AR |
1704- |
|
B |
T=2 .22 |
| 110 |
I8-97038 065-0 |
|
BOLT; DIFF BOX |
10 |
1704- |
|
B |
05.531 M10X17 |
| 69 |
I9-00093 074-A |
|
BEARING; DIFF CAGE |
2 |
1704- |
|
B |
(IADG) 05.536 NSK |
