PORTAL SPAREPART

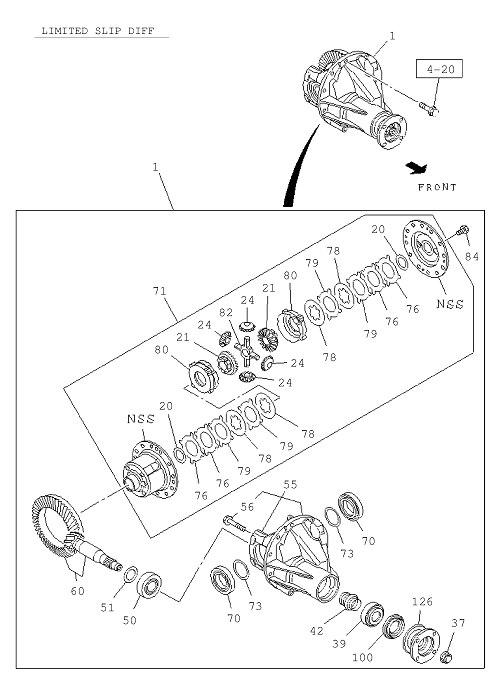

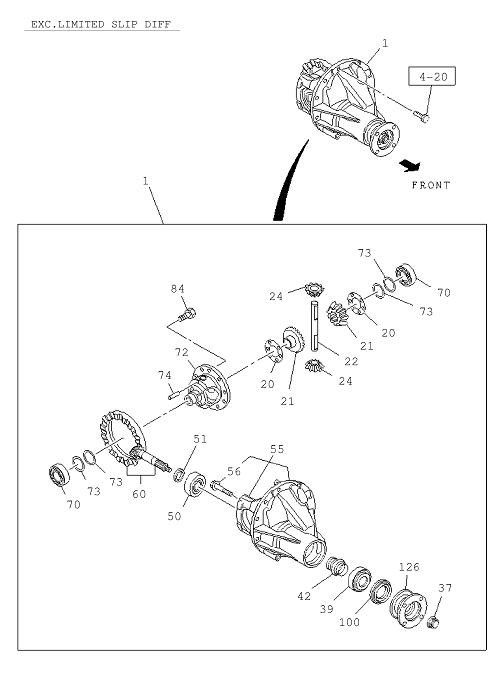

4-25 | REAR FINAL DRIVE

Partial Engine Partial Engine

MUX

MU-X 2017

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
20 I5-41562 007-1 WASHER; THRUST,SIDE GEAR 2 1704- AB EXC. LIMITED SLIP DIFF<G80> T=1 . 10
71 I8-98167 619-0 CAGE ASM; DIFF,FINAL DRIVE 1 1704- AB LIMITED SLIP DIFF<G80>
24 I8-97200 285-1 GEAR; PINION,DIFF 4 1704- AB LIMITED SLIP DIFF<G80>
42 I8-97035 399-0 COLLAR; DIST,COLLAPSIBLE 1 1704- AB L=58
39 I9-00093 078-A BEARING; FINAL PINION 1 1704- AB (IADG) NSK
24 I8-98186 829-0 GEAR; PINION,DIFF 2 1704- AB EXC. LIMITED SLIP DIFF<G80> Z = 10
73 I8-94435 353-0 SHIM; DIFF SIDE BRG AR 1704- AB T=0 . 50
126 I8-98166 552-1 COUPLING; DRIVING PINION 1 1704- AB
51 I8-94435 369-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2 .20
100 I6-97328 648-0 SEAL; OIL FINAL PINION 1 1704- AB (IADG) NOK
80 I8-94453 931-0 RING; PRESSURE 2 1704- AB LIMITED SLIP DIFF<G80>
39 I9-00093 078-A BEARING; FINAL PINION 1 1704- AB (IADG) NSK
20 I5-41562 007-1 WASHER; THRUST,SIDE GEAR 2 1704- AB EXC. LIMITED SLIP DIFF<G80> T=1.20
70 I8-94435 355-A BEARING; DIFF CAGE 2 1704- AB (IADG) NSK
51 I8-94435 363-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2.08
100 I6-97328 648-0 SEAL; OIL FINAL PINION 1 1704- AB (IADG) NOK
51 I8-94435 359-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2.00
78 I8-94453 937-0 DISC; FRICTION 4 1704- AB LIMITED SLIP DIFF<G80>
76 I8-97096 209-0 DISC; BEVEL 4 1704- AB LIMITED SLIP DIFF<G80>
21 I8-98186 828-1 GEAR; SIDE,DIFF 2 1704- AB EXC. LIMITED SLIP DIFF<G80> Z = 18
51 I8-94435 366-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2.14
70 I8-94435 355-A BEARING; DIFF CAGE 2 1704- AB (IADG) NSK
20 I9-41562 602-0 WASHER; THRUST,SIDE GEAR 2 1704- AB EXC. LIMITED SLIP DIFF<G80> T=1 . 00
74 I9-09878 096-0 PIN; LK,CROSS PIN 1 1704- AB EXC. LIMITED SLIP DIFF<G80> OD= 5 L=3 5
51 I8-94435 362-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2.06
51 I8-94435 357-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=1.96
73 I8-94435 350-0 SHIM; DIFF SIDE BRG AR 1704- AB T=0.18
55 I8-97240 889-2 CARRIER; DIFF 1 1704- AB
56 I8-98176 233-0 BOLT; BRG CAP 4 1704- AB M12X75 FLANGE
73 I8-94435 349-0 SHIM; DIFF SIDE BRG AR 1704- AB T=0 . 15
20 I8-94435 343-0 WASHER; THRUST,SIDE GEAR 2 1704- AB EXC. LIMITED SLIP DIFF<G80> T=0.80
51 I8-94435 374-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2 .30
50 I8-98357 664-0 BEARING; FINAL PINION 1 1704- AB JTEKT
51 I8-94435 358-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=1.98
39 I9-00093 078-A BEARING; FINAL PINION 1 1704- AB (IADG) NSK
79 I8-94365 189-0 PLATE; FRICTION 4 1704- AB LIMITED SLIP DIFF<G80> T=1.85
51 I8-94435 364-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2.10
1 I8-98167 626-0 DRIVE ASM; FINAL,RR 1 1704- B LIMITED SLIP DIFF<G80> 41/10
37 I8-94376 261-1 NUT; DRIVING PINION 1 1704- AB M24 FLANGE
84 I8-97038 064-0 BOLT; FINAL DRIVE GEAR 12 1704- AB M10X18.5
60 I8-98014 980-2 GEAR SET; FINAL DRIVE,RR 1 1704- A 43/11
73 I8-94435 352-0 SHIM; DIFF SIDE BRG AR 1704- AB T=0 . 30
21 I8-97200 286-0 GEAR; SIDE,DIFF 2 1704- AB LIMITED SLIP DIFF<G80>
51 I8-94435 371-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2 .24
51 I8-94435 356-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=1.94
20 I8-94453 935-0 WASHER; THRUST,SIDE GEAR 2 1704- AB LIMITED SLIP DIFF<G80> T=1 . 50
51 I8-94435 370-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2.22
1 I8-98190 117-0 DRIVE ASM; FINAL,RR 1 1704- B EXC. LIMITED SLIP DIFF<G80> 41/10
1 I8-98167 625-0 DRIVE ASM; FINAL,RR 1 1704- A LIMITED SLIP DIFF<G80> EXC. ELECTRONIC TRACTION CONTRO 43/11
51 I8-94435 368-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2.18
51 I8-94435 372-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2 .26
20 I5-41562 007-1 WASHER; THRUST,SIDE GEAR 2 1704- AB EXC. LIMITED SLIP DIFF<G80> T=1 . 30
22 I8-94435 308-1 SPIDER; DIFF PINION 1 1704- AB EXC. LIMITED SLIP DIFF<G80>
60 I8-98014 984-2 GEAR SET; FINAL DRIVE,RR 1 1704- B 41/10
51 I8-94435 376-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2 .34
51 I8-94435 360-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2.02
51 I8-94435 377-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2 .36
20 I8-97066 412-0 WASHER; THRUST,SIDE GEAR 2 1704- AB LIMITED SLIP DIFF<G80> T=1.80
79 I8-94453 936-0 PLATE; FRICTION 4 1704- AB LIMITED SLIP DIFF<G80> T=1.75
73 I8-94435 351-0 SHIM; DIFF SIDE BRG AR 1704- AB T=0 . 25
39 I9-00093 078-A BEARING; FINAL PINION 1 1704- AB (IADG) NSK
20 I8-94365 188-0 WASHER; THRUST,SIDE GEAR 2 1704- AB LIMITED SLIP DIFF<G80> T=1.70
20 I8-94365 187-0 WASHER; THRUST,SIDE GEAR 2 1704- AB LIMITED SLIP DIFF<G80> T=1.60
51 I8-94435 367-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2.16
72 I8-94325 448-0 CAGE; DIFF 1 1704- AB EXC. LIMITED SLIP DIFF<G80>
51 I8-94435 373-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2 .28
82 I8-94453 932-0 SPIDER; DIFF PINION 1 1704- AB LIMITED SLIP DIFF<G80>
20 I9-41562 602-0 WASHER; THRUST,SIDE GEAR 2 1704- AB EXC. LIMITED SLIP DIFF<G80> T=0 . 90
73 I8-94435 348-0 SHIM; DIFF SIDE BRG AR 1704- AB T=0.12
100 I8-97328 648-0 SEAL; OIL,FINAL PINION 1 1704- AB NOK
1 I8-98190 116-0 DRIVE ASM; FINAL,RR 1 1704- A EXC. LIMITED SLIP DIFF<G80> 43/11
70 I8-94435 355-A BEARING; DIFF CAGE 2 1704- AB (IADG) JTEKT
51 I8-94435 361-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2.04
51 I8-94435 365-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2.12
51 I8-94435 375-0 SHIM; PINION,FINAL DRIVE AR 1704- AB T=2 .32
50 I8-98362 581-0 BEARING; FINAL PINION 1 1704- AB NSK
