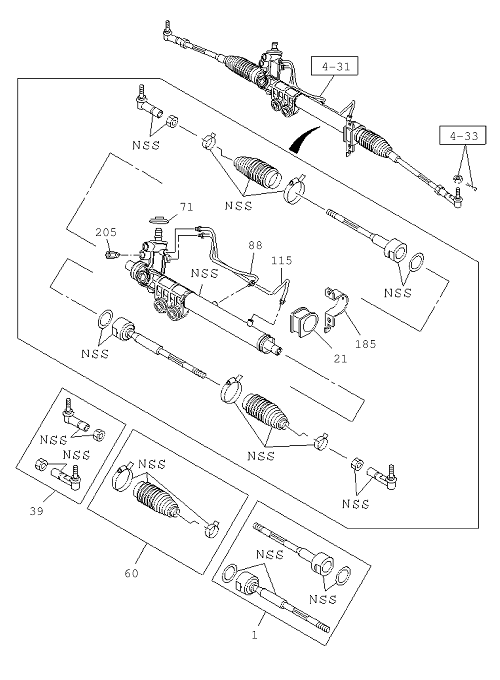

4-40 | STEERING UNIT
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 88 | I8-98164 970-0 | PIPE; HSG TO VLV | 1 | |||||
| 39 | I6-98056 551-0 | ROD END ASM;OUTER,D-MAX | 2 | 0 | (IADG) | |||
| 21 | I8-97945 426-0 | RUBBER; MTG,PINION SIDE | 1 | |||||
| 71 | I8-98164 972-0 | COVER; DUST,STRG UNIT | 1 | |||||
| 115 | I8-98164 969-0 | PIPE; HSG TO VLV | 1 | |||||
| 185 | I8-98164 968-0 | BRACKET; P/S | 1 | |||||
| 1 | I6-98164 967-0 | REPAIRKIT STRG UNIT,1 YEAR | 1 | 0 | (IADG) | |||
| 60 | I8-97945 423-0 | BOOT KIT; STRG HSG | 2 | |||||
| 1 | I8-98164 967-0 | REPAIR KIT; STRG UNIT,1 YEAR | 2 | |||||
| 39 | I8-98056 551-0 | ROD END ASM; OUTER | 2 | |||||
| 205 | I8-98231 309-0 | VALVE ASM; CHECK | 1 |
