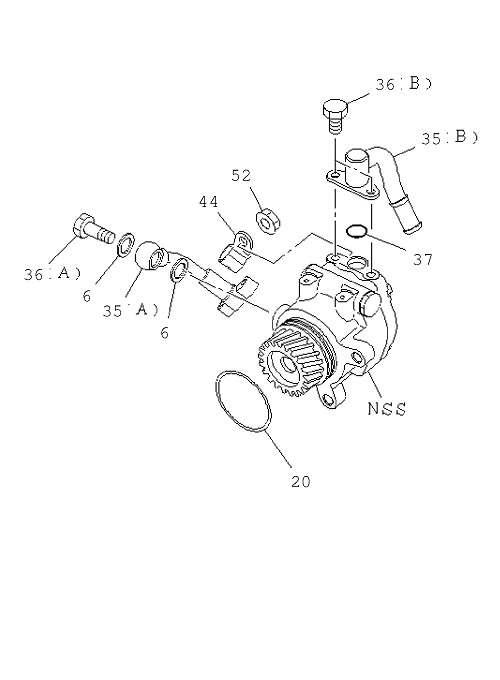

4-42 | POWER STEERING OIL PUMP
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 36 | I8-98166 386-0 | BOLT; CONN,PIPE | 2 | B | ||||
| 35 | I8-98166 383-0 | PIPE; HOSE CONN,OIL PUMP | 1 | (B) | ||||
| 20 | I8-98165 868-0 | GASKET; FRT,OIL PUMP | 1 | |||||
| 52 | I8-98165 887-0 | NUT; OIL PUMP | 1 | |||||
| 6 | I8-98165 870-0 | WASHER; PL,OIL PUMP | 2 | |||||
| 35 | I8-98165 869-0 | PIPE; HOSE CONN,OIL PUMP | 1 | (A) | ||||
| 36 | I8-98165 884-0 | BOLT; CONN,PIPE | 1 | |||||
| 44 | I8-98165 885-0 | BRACKET; OIL PUMP,P/S & EDS | 1 | |||||
| 37 | I8-98166 384-0 | GASKET; PIPE CONN,OIL PUMP | 1 |
