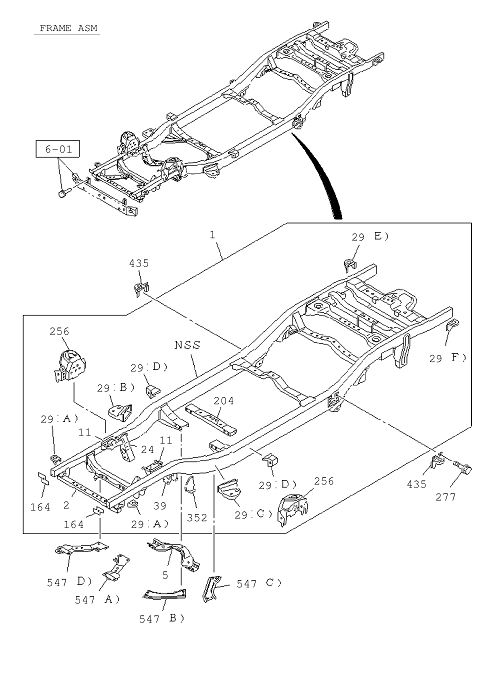

5-01 | FRAME AND OTHER PARTS
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-98106 701-1 | MEMBER; CROSS,1ST | 1 | 1704- | AB | |||
| 485 | I7-05110 010-A | NUT; TRANS MTG MBR,FRAME | 4 | 1704- | AB | 04.085 M10 FLANGE | ||
| 29 | I8-98107 534-0 | BRACKET; CAB MTG | 2 | 1704- | AB | (D) | ||
| 204 | I8-98204 866-1 | MEMBER; CROSS,TRANS MTG | 1 | 1704- | B | |||
| 11 | I8-98106 796-2 | BRACKET; ENG MTG | 1 | 1704- | AB | |||
| 11 | I8-98106 794-2 | BRACKET; ENG MTG | 1 | 1704- | AB | |||
| 547 | I8-98173 914-0 | BRACE; C/MBR | 1 | 1704- | A | (C) | ||
| 29 | I8-98106 784-3 | BRACKET; CAB MTG | 1 | 1704- | AB | (B) | ||
| 5 | I8-98229 450-0 | MEMBER; CROSS,SUSPENSION | 1 | 1704- | B | |||
| 29 | I8-98217 264-0 | BRACKET; CAB MTG | 1 | 1704- | AB | (F) | ||
| 497 | I0-28651 230-0 | BOLT; C/MBR | 8 | 1704- | AB | 07.395 (D) M12X30 FLANGE | ||
| 1 | I8-98274 954-0 | FRAME ASM | 1 | 1704- | B | |||
| 547 | I8-98177 568-3 | BRACE; C/MBR | 1 | 1704- | A | (D) | ||
| 497 | I8-97945 706-0 | BOLT; C/MBR | 2 | 1704- | A | EXC. SKID PLATE<7WE> 01.267 (A) M10X28 W/LK&PL WASHER | ||
| 547 | I8-98173 911-0 | BRACE; C/MBR | 1 | 1704- | B | (B) | ||
| 256 | I8-98106 803-5 | BRACKET; S/ABS | 1 | 1704- | AB | |||
| 29 | I8-98217 263-0 | BRACKET; CAB MTG | 1 | 1704- | AB | (E) | ||
| 547 | I8-98229 465-0 | BRACE; C/MBR | 1 | 1704- | B | (D) | ||
| 547 | I8-98173 912-0 | BRACE; C/MBR | 1 | 1704- | B | (C) | ||
| 256 | I8-98106 801-6 | BRACKET; S/ABS | 1 | 1704- | AB | |||
| 204 | I8-98106 760-5 | MEMBER; CROSS,TRANS MTG | 1 | 1704- | A | |||
| 5 | I8-98173 915-1 | MEMBER; CROSS,SUSPENSION | 1 | 1704- | A | |||
| 435 | I8-98205 085-0 | BRACKET; CAB MTG | 2 | 1704- | AB | |||
| 39 | I8-98106 809-1 | BRACKET; FRT SPR,RR | 1 | 1704- | AB | |||
| 352 | I8-98106 835-3 | BRACKET; BUMPER RUBBER | 1 | 1704- | AB | |||
| 24 | I8-98106 807-1 | BRACKET; FRT SPR,FRT | 1 | 1704- | AB | |||
| 497 | I0-28066 012-0 | BOLT; C/MBR | 4 | 1704- | AB | 02 .277 (C) M10X12 0 FLANGE | ||
| 547 | I8-98177 569-1 | BRACE; C/MBR | 1 | 1704- | A | (A) | ||
| 164 | I8-98106 815-0 | PLATE; FRT | 1 | 1704- | AB | |||
| 1 | I8-98274 953-0 | FRAME ASM | 1 | 1704- | A | |||
| 547 | I8-98229 466-0 | BRACE; C/MBR | 1 | 1704- | B | (A) | ||
| 497 | I0-28661 035-0 | BOLT; C/MBR | 6 | 1704- | AB | 03 . 023 (B) M10X3 5 FLANGE | ||
| 29 | I8-97942 341-3 | BRACKET; CAB MTG | 2 | 1704- | AB | (A) | ||
| 547 | I8-98173 913-0 | BRACE; C/MBR | 1 | 1704- | A | (B) | ||
| 277 | I8-98196 741-0 | BOLT; CAB MTG BRKT | 12 | 1704- | AB | |||
| 29 | I8-98106 791-3 | BRACKET; CAB MTG | 1 | 1704- | AB | (C) | ||
| 164 | I8-98106 814-0 | PLATE; FRT | 1 | 1704- | AB | |||
| 352 | I8-98106 836-3 | BRACKET; BUMPER RUBBER | 1 | 1704- | AB |
