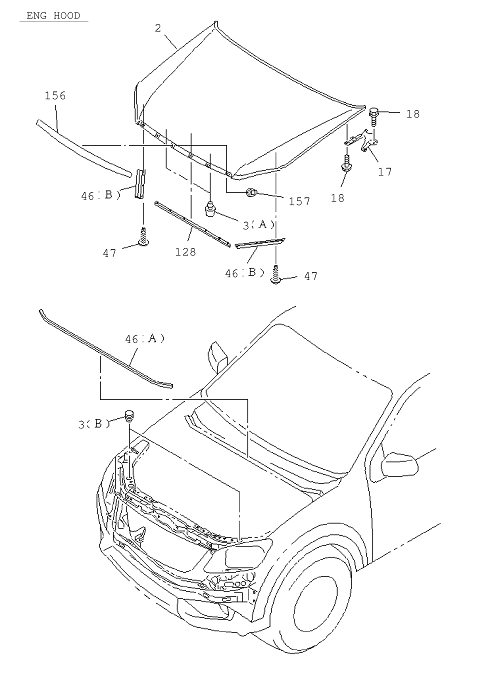

6-10 | ENGINE HOOD AND LOCK
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 31 | I8-98243 803-1 | LOCK; ENG HOOD | 1 | 1704- | A | REMOTE CONT DOOR LOCK W/AN | ||
| 46 | I8-98065 805-1 | SEAL; ENG HOOD | 1 | 1704- | AB | |||
| 17 | I8-98104 100-2 | HINGE; ENG HOOD | 1 | 1704- | AB | |||
| 24 | I8-97182 405-0 | CLIP; CONT CABLE | 3 | 1704- | AB | |||
| 49 | I8-98167 449-0 | SCREW; LEVER,ENG HOOD OPENER | 2 | 1704- | AB | M5X16 TAPPING | ||
| 31 | I8-98243 805-1 | LOCK; ENG HOOD | 1 | 1704- | AB | EXC. REMOTE CONT DOOR LOCK KY> | ||
| 3 | I8-98312 732-0 | BUFFER; ENG HOOD,FRT | 2 | 1704- | AB | (C) | ||
| 130 | I0-28650 616-0 | BOLT; SUPPORT ROD,HOOD | 1 | 1704- | AB | 02 .343 M6X16 FLANGE | ||
| 128 | I8-98102 230-0 | SEAL; PLATFORM | 1 | 1704- | AB | |||
| 30 | I8-97301 356-0 | CLIP; SUPPORT ROD,HOOD | 1 | 1704- | AB | |||
| 50 | I8-98101 948-1 | ROD; SUPPORT,ENG HOOD | 1 | 1704- | AB | |||
| 43 | I8-98165 341-0 | STAY; ENG HOOD,FRT END | 1 | 1704- | AB | |||
| 44 | I8-97370 668-0 | BOLT; STAY,HOOD | 4 | 1704- | AB | M6X2 0 W/PL WASHER | ||

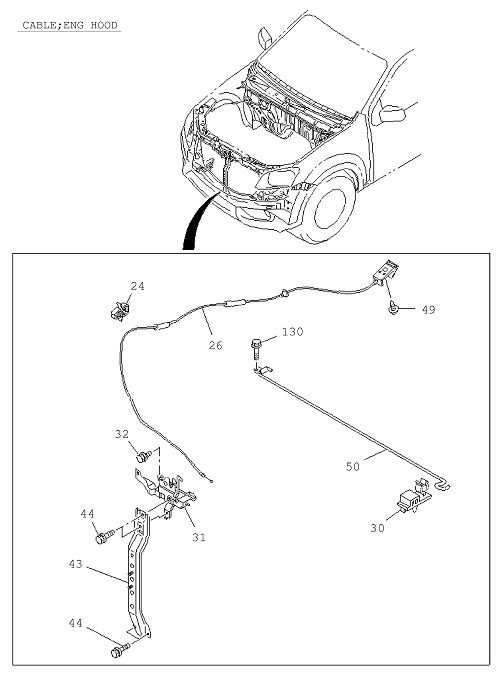

| 26 | I8-98071 759-1 | CABLE; ENG HOOD CONT | 1 | 1704- | AB | |||
| 17 | I8-98104 099-2 | HINGE; ENG HOOD | 1 | 1704- | AB | |||
| 2 | I8-98272 738-2 | PANEL; ENG HOOD | 1 | 1704- | AB | |||
| 3 | I8-98195 454-0 | BUFFER; ENG HOOD,FRT | 2 | 1704- | AB | (B) | ||
| 48 | I8-98204 979-0 | LEVER; ENG HOOD | 1 | 1704- | AB | |||
| 18 | I8-98056 122-0 | BOLT; HINGE | 8 | 1704- | AB | M8X16 | ||
| 3 | I8-97948 266-0 | BUFFER; ENG HOOD,FRT | 2 | 1704- | AB | (A) | ||
| 32 | I8-97370 668-0 | BOLT; HOOD LK | 2 | 1704- | AB | M6X2 0 W/PL WASHER |
