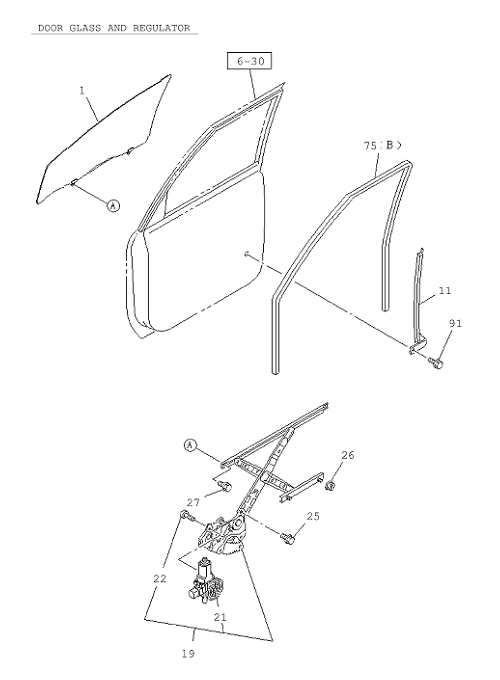

6-31 | FRONT DOOR GLASS AND REGULATOR
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 21 | I8-98160 724-0 | MOTOR; POWER WINDOW REG,FRT DOOR | 1 | 1704- | AB | |||
| 19 | I8-98093 555-1 | REGULATOR; WINDOW,FRT DOOR | 1 | 1704- | A | DRIVER POWER WINDOW W/ BZ> | ||
| 1 | I8-98073 843-A | GLASS; FRT DOOR | 1 | 1704- | AB | (IADG) | ||
| 11 | I8-98100 792-5 | RAIL; RR GUIDE,FRT DOOR | 1 | 1704- | B | |||
| 1 | I8-98073 844-A | GLASS; FRT DOOR | 1 | 1704- | AB | (IADG) | ||
| 1 | I8-98073 844-A | GLASS; FRT DOOR | 1 | 1704- | AB | (IADG) | ||
| 91 | I8-98048 996-0 | BOLT; GUIDE RAIL TO DOOR | 2 | 1704- | AB | 10.765 M6X8 FLANGE | ||
| 21 | I8-98160 723-0 | MOTOR; POWER WINDOW REG,FRT DOOR | 1 | 1704- | AB | DRIVER POWER WINDOW W/ | ||
| 26 | I8-98049 362-0 | NUT; FLANGE,WINDOW REG | 4 | 1704- | AB | 16 .320 M6 FLANGE | ||
| 25 | I8-98188 381-1 | BOLT; WINDOW REG | 6 | 1704- | AB | M6X10 FLANGE | ||
| 132 | I8-94279 922-0 | CLIP; SEAL,DOOR | 14 | 1704- | B | 16067 | ||
| 27 | I8-98188 381-1 | BOLT; GLASS FIX | 4 | 1704- | AB | M6X10 FLANGE | ||

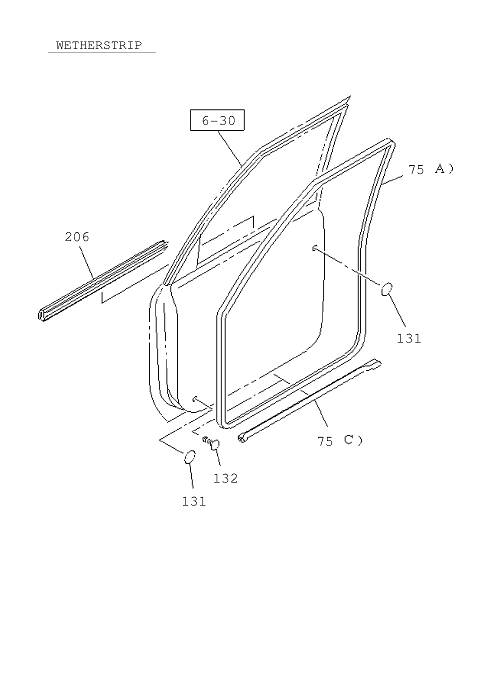

| 206 | I8-98052 197-2 | WEATHERSTRIP; FRT DOOR GLASS | 1 | 1704- | AB | |||
| 206 | I8-98052 198-2 | WEATHERSTRIP; FRT DOOR GLASS | 1 | 1704- | AB | |||
| 19 | I8-98093 554-1 | REGULATOR; WINDOW,FRT DOOR | 1 | 1704- | AB | |||
| 75 | I8-98350 019-0 | WEATHERSTRIP; FRT DOOR | 1 | 1704- | AB | (A) | ||
| 1 | I8-98073 844-A | GLASS; FRT DOOR | 1 | 1704- | AB | (IADG) | ||
| 22 | I8-98195 236-0 | SCREW; POWER WINDOW MOTOR | 3 | 1704- | AB | |||
| 75 | I8-98052 200-9 | WEATHERSTRIP; FRT DOOR | 1 | 1704- | AB | (B) | ||
| 1 | I8-98073 843-A | GLASS; FRT DOOR | 1 | 1704- | AB | (IADG) | ||
| 1 | I8-98073 843-A | GLASS; FRT DOOR | 1 | 1704- | AB | (IADG) | ||
| 11 | I8-98100 792-5 | RAIL; RR GUIDE,FRT DOOR | 1 | 1704- | A | EXC. PASSIVE ENTRY AND | ||
| 75 | I8-98052 199-9 | WEATHERSTRIP; FRT DOOR | 1 | 1704- | AB | (B) | ||
| 22 | I8-98195 236-0 | SCREW; POWER WINDOW MOTOR | 3 | 1704- | AB | |||
| 75 | I8-98165 107-0 | WEATHERSTRIP; FRT DOOR | 1 | 1704- | A | (C) | ||
| 11 | I8-98100 794-6 | RAIL; RR GUIDE,FRT DOOR | 1 | 1704- | A | PASSIVE ENTRY AND STAR | ||
| 21 | I8-98160 725-0 | MOTOR; POWER WINDOW REG,FRT DOOR | 1 | 1704- | A | DRIVER POWER WINDOW W/ BZ> | ||
| 75 | I8-98350 018-0 | WEATHERSTRIP; FRT DOOR | 1 | 1704- | AB | (A) | ||
| 75 | I8-98165 108-0 | WEATHERSTRIP; FRT DOOR | 1 | 1704- | A | (C) | ||
| 11 | I8-98100 793-5 | RAIL; RR GUIDE,FRT DOOR | 1 | 1704- | AB | |||
| 131 | I1-76798 029-0 | SEAL; FRT DOOR | 4 | 1704- | AB | 16.165 OD=2 5 BLACK | ||
| 19 | I8-98093 553-1 | REGULATOR; WINDOW,FRT DOOR | 1 | 1704- | AB | DRIVER POWER WINDOW W/ |
