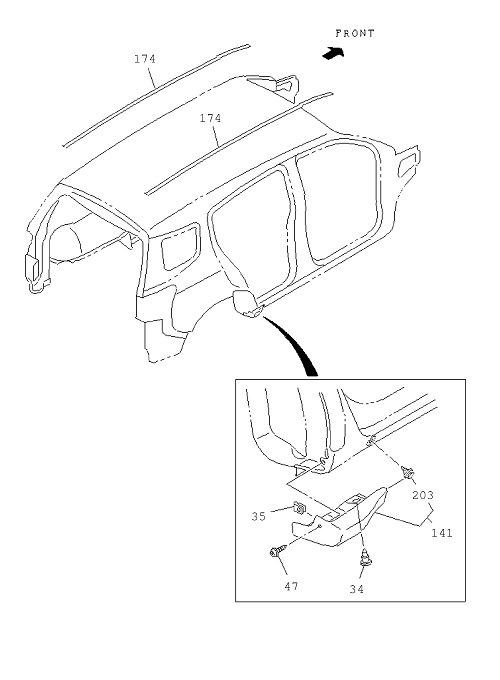

6-45 | MOLDING AND STRIPE
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 35 | I8-97125 519-0 | NUT; EXPANSION,ROCKER MOLDING | 2 | 1704- | AB | .4409722222222 | ||
| 47 | I8-98167 444-0 | SCREW; ROCKER MOLDING | 2 | 1704- | AB | 07.874 M6X2 0 TAPPING W/PL WASHER | ||
| 141 | I8-98260 807-0 | COVER; ROCKER,RR | 1 | 1704- | B | |||
| 141 | I8-98260 807-0 | COVER; ROCKER,RR | 1 | 1704- | A | PRIMER | ||
| 203 | I8-97359 942-0 | FASTENER; COVER | 4 | 1704- | AB | 7829 | ||
| 174 | I8-98189 367-0 | MOLDING; ROOF | 1 | 1704- | B | |||
| 174 | I8-98189 366-0 | MOLDING; ROOF | 1 | 1704- | A | EXC. ROOF RAIL< 7LC> | ||
| 174 | I8-98189 367-0 | MOLDING; ROOF | 1 | 1704- | A | EXC. ROOF RAIL< 7LC> | ||
| 34 | I8-97301 188-0 | CLIP; ROCKER MOLDING | 2 | 1704- | AB | .8694444444444 | ||
| 174 | I8-98189 366-0 | MOLDING; ROOF | 1 | 1704- | B | |||
| 141 | I8-98260 806-0 | COVER; ROCKER,RR | 1 | 1704- | B | |||
| 141 | I8-98260 806-0 | COVER; ROCKER,RR | 1 | 1704- | A | PRIMER |
