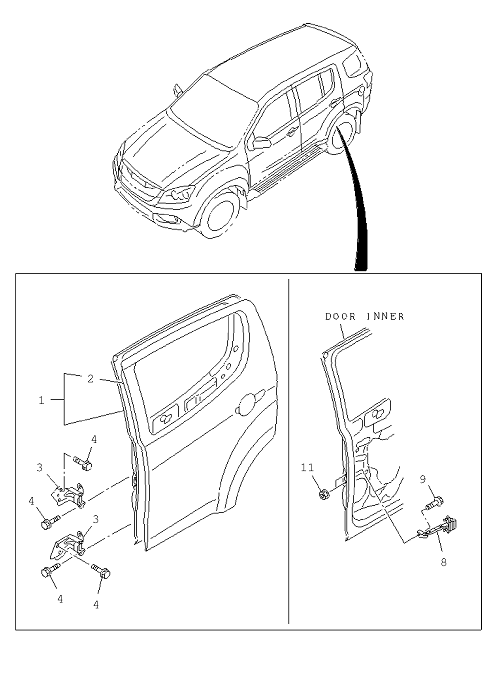

6-50 | REAR DOOR AND HINGE
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-98105 281-1 | HINGE; RR DOOR | 2 | 1704- | AB | LWR RH & UPR LH | ||
| 2 | I8-98206 072-1 | PANEL; RR DOOR OUTER | 1 | 1704- | AB | |||
| 11 | I8-98049 362-0 | NUT | 4 | 1704- | AB | M6 FLANGE | ||
| 1 | I8-98208 994-1 | DOOR ASM; REAR | 1 | 1704- | AB | |||
| 4 | I8-98005 842-0 | BOLT; HINGE | 16 | 1704- | AB | 09.171 M8X23 FLANGE | ||
| 2 | I8-98206 073-1 | PANEL; RR DOOR OUTER | 1 | 1704- | AB | |||
| 3 | I8-98105 280-1 | HINGE; RR DOOR | 2 | 1704- | AB | UPR RH & LWR LH | ||
| 1 | I8-98208 993-1 | DOOR ASM; REAR | 1 | 1704- | AB | |||
| 9 | I8-98166 694-0 | BOLT; CHECK ARM | 2 | 1704- | AB | 16 . 320 M8X23 | ||
| 8 | I8-98227 238-1 | ARM; CHECK,RR DOOR | 2 | 1704- | AB |
