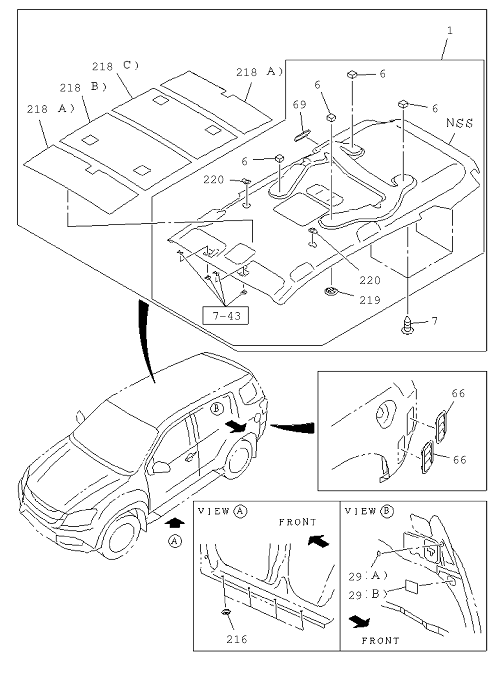

6-66 | HEAD LINING AND TRIM
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97427 815-2 | LINING; HD | A | 1704- | 1 | AIR BAG DR | ||
| 1 | I8-97466 028-0 | LINING; HD | A | 1704- | 1 | AIR BAG DR | ||
| 219 | I8-97425 070-0 | GRILLE; RR COOLER | B | 1704- | 4 | REAR COOLE | ||
| 29 | I8-98244 527-0 | DEADENER; ROOF PANEL | AB | 1704- | 2 | (B) | ||
| 6 | I8-98244 491-0 | SPACER; HD LINING | A | 1704- | 4 | 6 - SPEAKE | ||
| 1 | I8-97424 373-6 | LINING; HD | B | 1704- | 1 | EXC. REAR | ||
| 7 | I8-97416 696-0 | RETAINER; HEADLINING RAIL | AB | 1704- | 4 | GRAY | ||
| 1 | I8-97424 374-5 | LINING; HD | A | 1704- | 1 | AIR BAG DR | ||
| 29 | I8-98253 367-0 | DEADENER; ROOF PANEL | AB | 1704- | 1 | (D) | ||
| 218 | I8-98228 817-3 | INSULATOR; ROOF | AB | 1704- | 2 | (A) | ||
| 29 | I8-98253 366-0 | DEADENER; ROOF PANEL | AB | 1704- | 2 | (C) | ||
| 1 | I8-97466 027-0 | LINING; HD | A | 1704- | 1 | AIR BAG DR | ||
| 218 | I8-98228 819-3 | INSULATOR; ROOF | AB | 1704- | 1 | (C) | ||
| 218 | I8-98228 818-3 | INSULATOR; ROOF | AB | 1704- | 1 | (B) | ||
| 1 | I8-97466 024-0 | LINING; HD | A | 1704- | 1 | AIR BAG DR | ||
| 69 | I8-98226 169-0 | SEAL; AIR OUTLET DUCT | A | 1704- | 1 | 6 - SPEAKE | ||
| 1 | I8-97427 814-2 | LINING; HD | A | 1704- | 1 | AIR BAG DR | ||
| 216 | I8-97365 823-0 | GROMMET; HOLE | AB | 1704- | 8 | 16 . 575 O | ||
| 66 | I8-98190 079-2 | GRILLE; AIR OUTLET | AB | 1704- | 2 | |||
| 6 | I8-98244 491-0 | SPACER; HD LINING | B | 1704- | 4 | REAR COOLE | ||
| 69 | I8-98226 169-0 | SEAL; AIR OUTLET DUCT | B | 1704- | 1 | REAR COOLE | ||
| 1 | I8-97424 378-6 | LINING; HD | B | 1704- | 1 | REAR COOLE | ||
| 1 | I8-97466 023-0 | LINING; HD | A | 1704- | 1 | AIR BAG DR | ||
| 219 | I8-97425 070-0 | GRILLE; RR COOLER | A | 1704- | 4 | 6 - SPEAKE | ||
| 29 | I8-98244 526-0 | DEADENER; ROOF PANEL | AB | 1704- | 2 | (A) | ||
| 1 | I8-97424 375-5 | LINING; HD | A | 1704- | 1 | AIR BAG DR |
