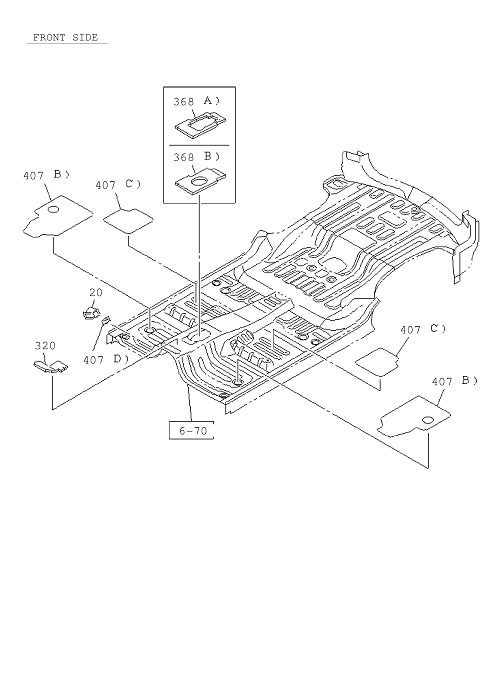

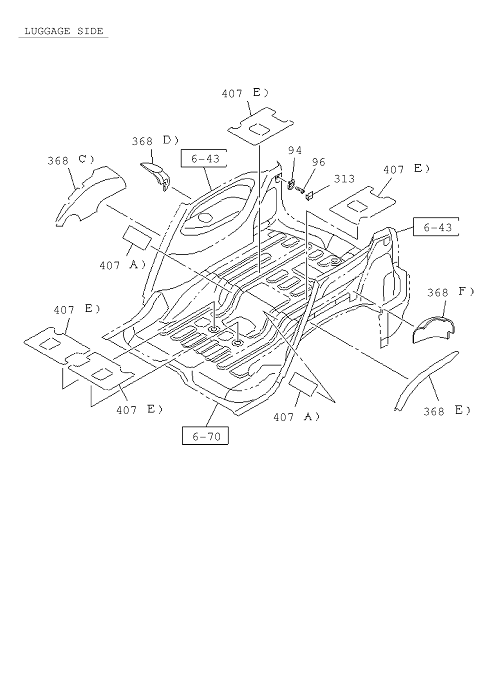

6-76 | FLOOR EQUIPMENT AND SEALING
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 368 | I8-98236 190-0 | INSULATOR; FLOOR,RR | 1 | 1704- | AB | (C) | ||
| 320 | I8-98166 704-0 | INSULATOR; FLOOR,FRT | 1 | 1704- | AB | |||
| 313 | I8-97424 485-1 | COVER; ROPE HOOK | 2 | 1704- | AB | BLACK | ||
| 407 | I8-98199 856-0 | DEADENER; FLOOR PANEL | 4 | 1704- | AB | (B) | ||
| 407 | I8-98338 648-0 | DEADENER; FLOOR PANEL | 1 | 1704- | AB | (D) | ||
| 96 | I8-98228 484-0 | BOLT; ROPE HOOK FIX | 2 | 1704- | AB | |||
| 20 | I8-98064 439-2 | REST; FOOT | 1 | 1704- | AB | |||
| 407 | I8-98165 147-0 | DEADENER; FLOOR PANEL | 1 | 1704- | AB | (E) | ||
| 368 | I8-98236 193-0 | INSULATOR; FLOOR,RR | 1 | 1704- | AB | (F) | ||
| 368 | I8-98236 192-0 | INSULATOR; FLOOR,RR | 1 | 1704- | AB | (E) | ||
| 368 | I8-98166 706-0 | INSULATOR; FLOOR,RR | 1 | 1704- | B | M/T MUA 5 SPEED 5H(MWQ) (B) | ||
| 94 | I8-98240 171-0 | HOOK ASM; ROPE | 2 | 1704- | AB | |||
| 368 | I8-98236 191-0 | INSULATOR; FLOOR,RR | 1 | 1704- | AB | (D) | ||
| 407 | I8-98244 858-0 | DEADENER; FLOOR PANEL | 2 | 1704- | AB | (C) | ||
| 368 | I8-98166 707-0 | INSULATOR; FLOOR,RR | 1 | 1704- | A | A/T 5 SPEED-AISIN(MA1) (A) | ||
| 407 | I8-98155 918-0 | DEADENER; FLOOR PANEL | 2 | 1704- | AB | (A) | ||
| 407 | I8-98338 647-0 | DEADENER; FLOOR PANEL | 1 | 1704- | AB | (D) |
