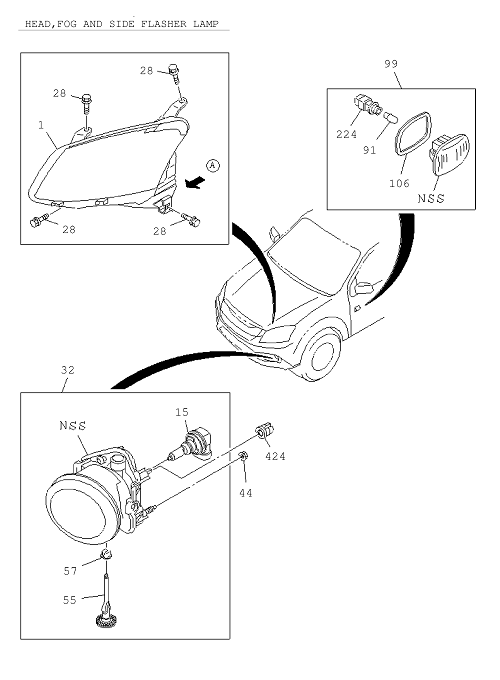

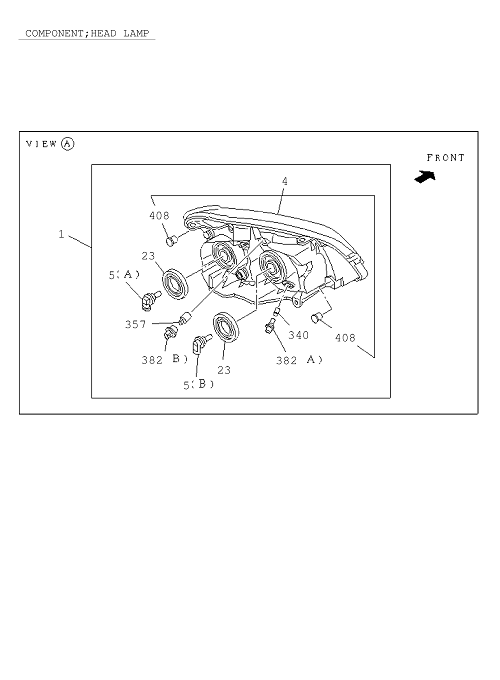

8-01 | LAMP; FRONT AND FRONT SIDE
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 408 | I8-98300 478-0 | CAP; BREATHER,HEADLAMP | 2 | 1704- | AB | |||
| 32 | I8-98249 455-0 | LAMP ASM; FOG | 1 | 1704- | A | FOG LAMP<T9 6> | ||
| 28 | I8-98062 140-0 | BOLT; HEADLAMP | 8 | 1704- | AB | M6X18 TAPPING W/LK&PL WASHER | ||
| 357 | I8-98160 206-0 | BULB; TURN SIGNAL | 1 | 1704- | AB | 02.727 12V 21W | ||
| 382 | I8-98160 270-0 | PLUG; SOCKET,HEADLAMP | 1 | 1704- | AB | |||
| 55 | I8-98241 840-0 | SCREW; ADJ,FOG LAMP | 2 | 1704- | A | FOG LAMP<T9 6> | ||
| 139 | I8-98357 959-0 | COVER; HEADLAMP | 1 | 1704- | AB | |||
| 408 | I8-98300 478-0 | CAP; BREATHER,HEADLAMP | 2 | 1704- | AB | |||
| 106 | I8-97333 420-0 | GASKET; SIDE TURN SIGNAL | 2 | 1704- | B | |||
| 57 | I8-98017 835-0 | NUT; UNIT TO SCREW,FOG LAMP | 2 | 1704- | A | FOG LAMP<T9 6> | ||
| 139 | I8-98357 959-0 | COVER; HEADLAMP | 1 | 1704- | AB | |||
| 382 | I8-98160 270-0 | PLUG; SOCKET,HEADLAMP | 1 | 1704- | AB | |||
| 15 | I8-98241 838-0 | BULB; FOG LAMP | 2 | 1704- | A | FOG LAMP<T9 6> 12V 19W | ||
| 43 | I8-98061 682-0 | BOLT; FOG LAMP | 4 | 1704- | A | FOG LAMP<T9 6> 16 .650 M6X18 W/LK&PL WASHER | ||
| 99 | I8-98084 153-0 | LAMP; SIDE FLASHER | 2 | 1704- | B | |||
| 357 | I8-98160 206-0 | BULB; TURN SIGNAL | 1 | 1704- | AB | 02.727 12V 21W | ||
| 91 | I8-97310 952-0 | BULB; SIDE TURN SIGNAL | 2 | 1704- | B | 12V 5W | ||
| 224 | I8-97310 953-0 | SOCKET; SIDE FLASHER LAMP | 2 | 1704- | B | |||
| 32 | I8-98249 454-0 | LAMP ASM; FOG | 1 | 1704- | A | FOG LAMP<T9 6> | ||
| 1 | I8-98298 903-1 | LAMP ASM; HEAD | 1 | 1704- | AB | |||
| 4 | I8-98357 953-1 | HEADLAMP UNIT | 1 | 1704- | AB | |||
| 4 | I8-98357 952-1 | HEADLAMP UNIT | 1 | 1704- | AB | |||
| 1 | I8-98298 904-1 | LAMP ASM; HEAD | 1 | 1704- | AB |
