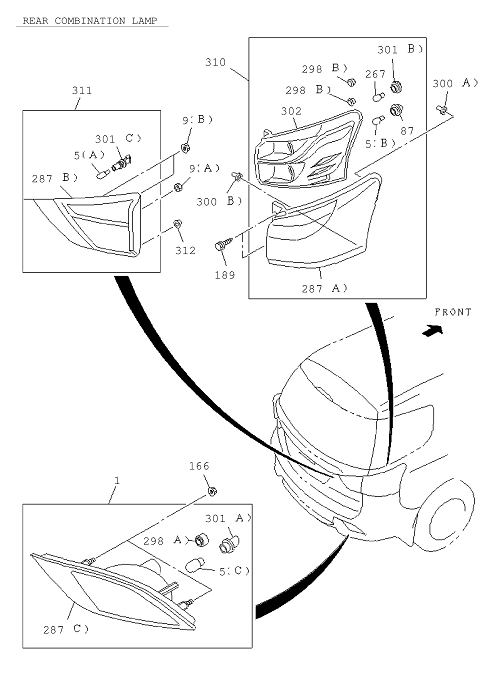

8-03 | LAMP; REAR AND REAR SIDE
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 302 | I8-98001 518-0 | FILTER; BREATHER,RR COMB LAMP | 4 | 1704- | AB | |||
| 309 | I8-98223 657-0 | STAY; STOP LAMP | 3 | 1704- | AB | |||
| 311 | I8-98298 909-1 | LAMP ASM; RR COMB,GATE SIDE | 1 | 1704- | AB | |||
| 267 | I8-97179 967-0 | BULB; TURN SIGNAL | 2 | 1704- | AB | 12V 21W | ||
| 81 | I8-98223 658-0 | GASKET; STOP LAMP | 1 | 1704- | AB | |||
| 90 | I8-98203 808-1 | COVER; STOP LAMP | 1 | 1704- | AB | |||
| 287 | I8-98357 093-1 | LAMP UNIT; RR COMB | 1 | 1704- | AB | (A) | ||

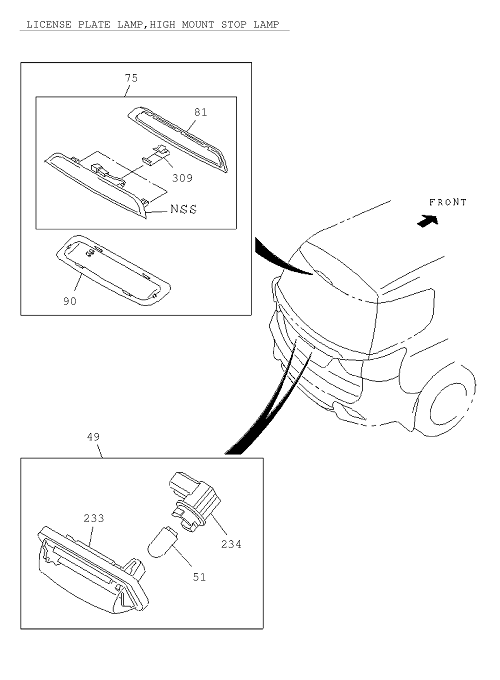

| 75 | I8-98187 249-3 | LAMP ASM; STOP,HIGHMOUNTED | 1 | 1704- | AB | |||
| 233 | I8-98251 881-0 | LAMP UNIT; LICENSE PLATE | 2 | 1704- | AB | |||
| 287 | I8-98218 505-0 | LAMP UNIT; RR COMB | 1 | 1704- | AB | (B) | ||
| 312 | I8-98014 041-0 | CLIP; RR COMB LAMP | 2 | 1704- | AB | 16494 | ||
| 234 | I8-98251 882-0 | SOCKET ASM; LICENSE PLATE LAMP | 2 | 1704- | AB | |||
| 267 | I6-97179 967-1 | BULB; HEADLAMP | 1 | 1704- | AB | (IADG) 12V 21W | ||
| 5 | I8-98357 088-0 | BULB; RR COMB LAMP | 2 | 1704- | AB | (A) 12V 21W | ||
| 300 | I8-97175 217-0 | HOLDER; LAMP | 2 | 1704- | AB | 02.664 (A) | ||
| 49 | I8-98248 476-0 | LAMP; LICENSE PLATE | 2 | 1704- | AB | |||
| 51 | I8-97310 952-0 | BULB; LICENSE PLATE LAMP | 2 | 1704- | AB | 12V 5W | ||
| 298 | I8-98186 378-0 | CAP; BREATHER,RR COMB LAMP | 2 | 1704- | AB | (A) | ||
| 301 | I8-97184 970-0 | SOCKET ASM; RR COMB | 2 | 1704- | AB | 02.596 (A) | ||
| 300 | I8-98014 041-0 | HOLDER; LAMP | 2 | 1704- | AB | (B) | ||
| 9 | I8-98049 850-0 | NUT; LAMP,RR COMB | 2 | 1704- | AB | 08.155 (A) M6 CAP NUT | ||
| 301 | I8-98206 114-0 | SOCKET ASM; RR COMB | 2 | 1704- | AB | 02 .575 (B) | ||
| 310 | I8-98298 908-1 | LAMP ASM; RR COMB,BODY SIDE | 1 | 1704- | AB | |||
| 287 | I8-98218 506-0 | LAMP UNIT; RR COMB | 1 | 1704- | AB | (B) | ||
| 189 | I8-98061 682-0 | BOLT; FIX | 4 | 1704- | AB | 16.650 M6X18 W/LK&PL WASHER | ||
| 166 | I8-98055 704-0 | NUT; BACKUP LAMP | 4 | 1704- | AB | 08.915 M6 FLANGE | ||
| 311 | I8-98298 910-1 | LAMP ASM; RR COMB,GATE SIDE | 1 | 1704- | AB | |||
| 298 | I8-98001 464-0 | CAP; BREATHER,RR COMB LAMP | 4 | 1704- | AB | (B) | ||
| 1 | I8-98187 247-1 | LAMP ASM; RR COMB | 1 | 1704- | AB | |||
| 9 | I8-98055 704-0 | NUT; LAMP,RR COMB | 4 | 1704- | AB | 08.915 (B) M6 FLANGE | ||
| 5 | I6-94372 897-0 | BULB STOP LAMP | 1 | 1704- | AB | (IADG) (B) 12V 18W | ||
| 5 | I8-94372 897-0 | BULB; RR COMB LAMP | 2 | 1704- | AB | (B) 12V 18W | ||
| 287 | I8-98357 092-1 | LAMP UNIT; RR COMB | 1 | 1704- | AB | (A) | ||
| 1 | I8-98187 248-1 | LAMP ASM; RR COMB | 1 | 1704- | AB | |||
| 310 | I8-98298 907-1 | LAMP ASM; RR COMB,BODY SIDE | 1 | 1704- | AB | |||
| 5 | I6-94372 897-0 | BULB STOP LAMP | 1 | 1704- | AB | (IADG) (B) 12V 18W | ||
| 5 | I6-94372 897-0 | BULB STOP LAMP | 1 | 1704- | AB | (IADG) (B) 12V 18W |
