| 174 |
I6-98079 192-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(IADG) (B) 4 0A GREEN |
| 27 |
I6-98054 257-0 |
|
FUSE; FACIA HARNESS |
AR |
1704- |
|
AB |
(IADG) 02 .485 10A RED |

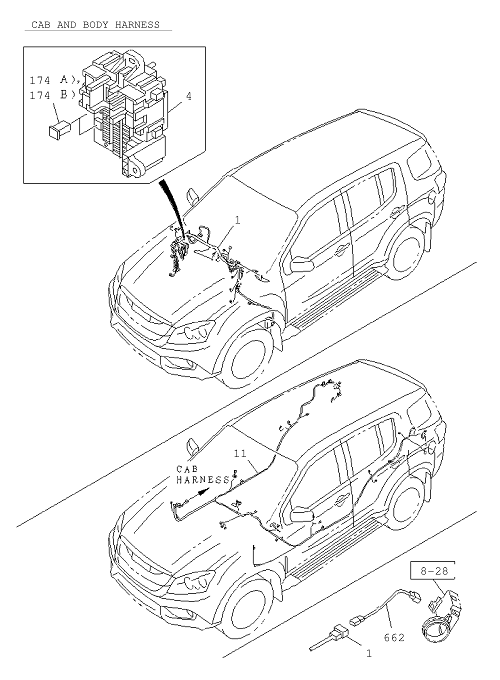

| 1 |
I8-98351 541-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PL IO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANT EXC. ELECTRONIC TRACTION CO SEAT DVD MONITOR< U4 8> |
| 189 |
I8-98350 836-0 |
|
HARNESS; EXT |
1 |
1704- |
|
A |
AM/FM,CLOCK,BLUE TOOTH,CD P IO DELETE(UL5) EXC. PASSIVE ENTRY AND STAR 2ND SEAT DVD MONITOR<U48> |
| 13 |
I8-98340 312-0 |
|
HARNESS; ENG |
1 |
1704- |
|
A |
|
| 763 |
I8-98146 837-0 |
|
RELAY; IG1 |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYST 02.100 12V YAZAKI |
| 100 |
I8-98352 643-0 |
|
HARNESS; RR GATE |
1 |
1704- |
|
A |
(A) |
| 100 |
I8-98352 645-0 |
|
HARNESS; RR GATE |
1 |
1704- |
|
B |
(A) |
| 290 |
I0-91180 106-0 |
|
NUT; BRKT |
1 |
1704- |
|
AB |
01.062 M6 FLANGE |
| 174 |
I8-97219 407-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(B) 6 0A YELLOW |
| 11 |
I8-98350 806-0 |
|
HARNESS; BODY |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( FRONT SEAT BUCKET MANUAL HE EXC. PASSIVE ENTRY AND STAR |
| 1 |
I8-98351 513-2 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYS AUTO COOLER SYSTEM(CJ2) AM/FM,CLOCK,BLUE TOOTH,DVD W ,AM/FM,BLUE TOOTH,CD/DVD W/ PHONE(8QK) REMOTE CONT DOOR LOCK W/ANT EXC. ELECTRONIC TRACTION CO |
| 1 |
I8-98351 503-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2) AM/FM,CLOCK,BLUE TOOTH,DVD W ,AM/FM,BLUE TOOTH,CD/DVD W/ PHONE(8QK) EXC. ELECTRONIC TRACTION CON OTE CONT DOOR LOCK W/ANTI T |

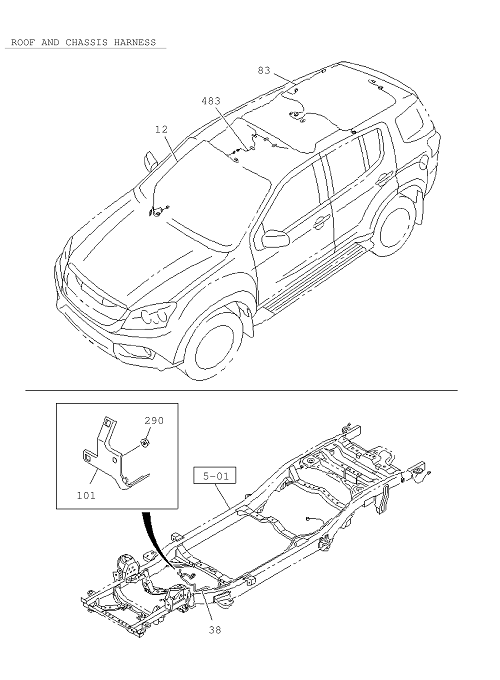

| 12 |
I8-98305 098-0 |
|
HARNESS; ROOF |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER AY0) 6-SPEAKER SYSTEM BASE<UW5> AM/FM,BLUE TOOTH,CD/DVD W/D HONE(8QK) |
| 547 |
I8-98224 083-2 |
|
HARNESS; CABLE,SRS |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER AY0) |

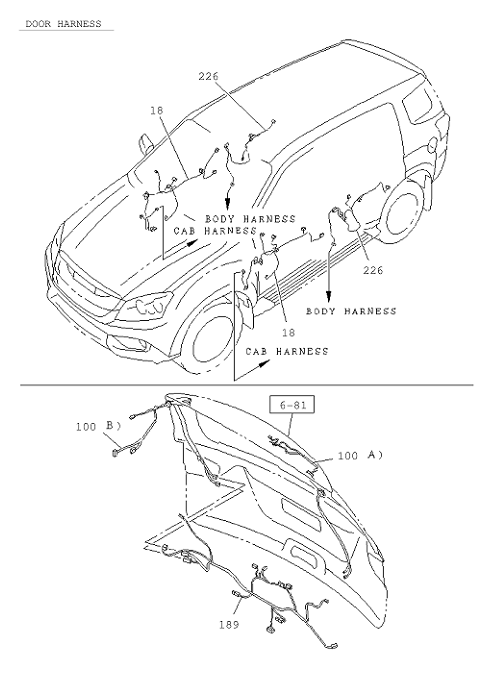

| 226 |
I8-98350 218-2 |
|
HARNESS; RR DOOR |
1 |
1704- |
|
A |
AUTO DOOR LOCK<AU4 > REMOTE CONT DOOR LOCK W/ANT |
| 11 |
I8-98350 805-0 |
|
HARNESS; BODY |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( FRONT SEAT BUCKET POWER ASS EXC. PASSIVE ENTRY AND STAR |
| 27 |
I6-98054 258-0 |
|
FUSE; FACIA HARNESS |
AR |
1704- |
|
AB |
(IADG) 02 .485 15A BLUE |
| 18 |
I8-98159 486-4 |
|
HARNESS; DOOR |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( AUTO DOOR LOCK<AU4> DOOR MIRROR POWER FOLDING C NAL<DE3>,DOOR MIRROR POWER URN SIGNAL<DF9 > REMOTE CONT DOOR LOCK W/ANT |

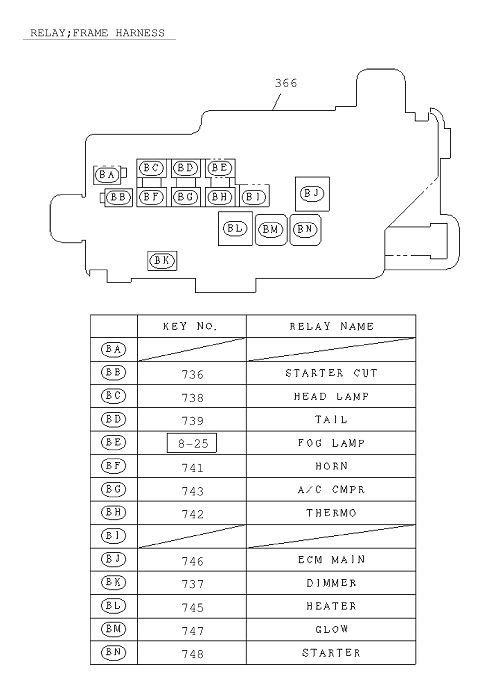

| 366 |
I8-98351 230-2 |
|
HARNESS; CABLE,ENG ROOM |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER AY0) EXC. PASSIVE ENTRY AND STAR ELECTRONIC TRACTION CONTROL |
| 18 |
I8-98230 581-1 |
|
HARNESS; DOOR |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4 > AIR BAG DRIVER & PASSENGER AY0) DOOR MIRROR POWER FOLDING C NAL<DE3>,DOOR MIRROR POWER URN SIGNAL<DF9 > EXC. REMOTE CONT DOOR LOCK W KY> |
| 226 |
I8-98350 219-2 |
|
HARNESS; RR DOOR |
1 |
1704- |
|
A |
AUTO DOOR LOCK<AU4 > EXC. PASSIVE ENTRY AND STAR REMOTE CONT DOOR LOCK W/ANT |
| 100 |
I8-98352 641-0 |
|
HARNESS; RR GATE |
1 |
1704- |
|
B |
EXC. REAR COOLER WO/HEATER< (B) |
| 771 |
I8-97309 292-0 |
|
RELAY: ESC |
1 |
1704- |
|
AB |
02 .485 12V YAZAKI |

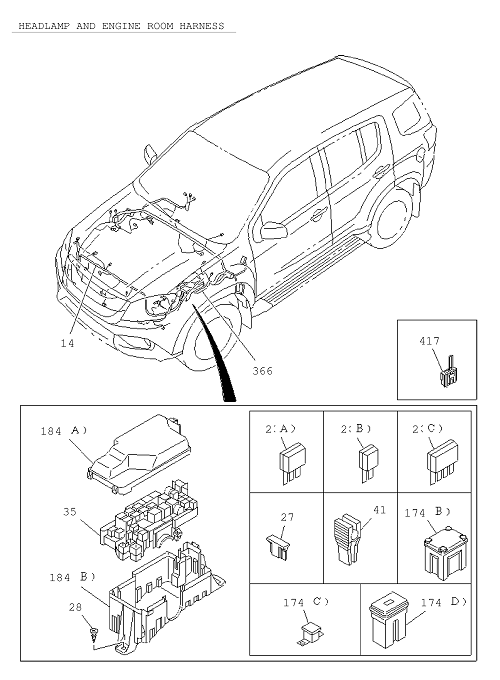

| 14 |
I8-98350 720-0 |
|
HARNESS; HEADLAMP |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK W/ANT |
| 83 |
I8-98198 188-2 |
|
HARNESS; AIR CONDITIONER |
1 |
1704- |
|
B |
REAR COOLER WO/HEATER<C6 9> |
| 741 |
I8-98005 407-0 |
|
RELAY; HORN |
1 |
1704- |
|
AB |
09.778 12V YAZAKI |
| 18 |
I8-98209 213-3 |
|
HARNESS; DOOR |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYS AUTO DOOR LOCK<AU4 > AIR BAG DRIVER & PASSENGER AY0) DOOR MIRROR POWER FOLDING C NAL<DE3>,DOOR MIRROR POWER URN SIGNAL<DF9 > REMOTE CONT DOOR LOCK W/ANT |
| 174 |
I6-98079 192-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(IADG) (B) 4 0A GREEN |
| 189 |
I8-98350 834-0 |
|
HARNESS; EXT |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYST AM/FM,CLOCK,BLUE TOOTH,CD P IO DELETE(UL5) EXC. 2ND SEAT DVD MONITOR<U |
| 12 |
I8-98305 096-0 |
|
HARNESS; ROOF |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER AY0) 8-SPEAKER SYSTEM CUSTOM<U87 AM/FM,BLUE TOOTH,CD/DVD W/D HONE(8QK) |
| 736 |
I8-97309 292-0 |
|
RELAY; STARTER CUT |
1 |
1704- |
|
AB |
02 .485 12V YAZAKI |
| 366 |
I8-98351 227-2 |
|
HARNESS; CABLE,ENG ROOM |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( ELECTRONIC TRACTION CONTROL EXC. PASSIVE ENTRY AND START |
| 174 |
I6-98079 191-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(IADG) (B) 3 0A PINK |
| 100 |
I8-98352 642-0 |
|
HARNESS; RR GATE |
1 |
1704- |
|
A |
(B) |
| 189 |
I8-98350 835-0 |
|
HARNESS; EXT |
1 |
1704- |
|
A |
AM/FM,CLOCK,BLUE TOOTH,DVD ,AM/FM,BLUE TOOTH,CD/DVD W/ PHONE(8QK) EXC. PASSIVE ENTRY AND STAR 2ND SEAT DVD MONITOR<U48> |
| 28 |
I8-97249 192-0 |
|
SCREW; FUSE BOX |
2 |
1704- |
|
AB |
|
| 749 |
I8-98005 407-0 |
|
RELAY; POWER WINDOW |
1 |
1704- |
|
AB |
09.778 12V YAZAKI |
| 687 |
I8-98211 400-2 |
|
HARNESS; VIDEO DISC PLYR |
1 |
1704- |
|
A |
2ND SEAT DVD MONITOR<U4 8 > |
| 366 |
I8-98351 223-2 |
|
HARNESS; CABLE,ENG ROOM |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( PASSIVE ENTRY AND START SYS ELECTRONIC TRACTION CONTROL |
| 12 |
I8-98305 103-0 |
|
HARNESS; ROOF |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( AM/FM,CLOCK,BLUE TOOTH,CD PL IO DELETE(UL5),AM/FM,CLOCK, W/DISPLAY(UVA) 8-SPEAKER SYSTEM CUSTOM<U87 |
| 189 |
I8-98350 833-0 |
|
HARNESS; EXT |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYST AM/FM,CLOCK,BLUE TOOTH,DVD ,AM/FM,BLUE TOOTH,CD/DVD W/ PHONE(8QK) EXC. 2ND SEAT DVD MONITOR<U |
| 743 |
I8-98005 407-0 |
|
RELAY; A/C COMPRESSOR |
1 |
1704- |
|
AB |
09. 778 12V YAZAKI |
| 745 |
I8-98146 834-0 |
|
RELAY; HEATER |
1 |
1704- |
|
AB |
03.670 12V YAZAKI |
| 1 |
I8-98351 490-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2) ELECTRONIC TRACTION CONTROL AM/FM,CLOCK,BLUE TOOTH,DVD ,AM/FM,BLUE TOOTH,CD/DVD W/ PHONE(8QK) REMOTE CONT DOOR LOCK W/ANT EXC. 2ND SEAT DVD MONITOR<U |
| 226 |
I8-98350 221-2 |
|
HARNESS; RR DOOR |
1 |
1704- |
|
B |
|
| 1 |
I8-98351 547-2 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYS COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PL IO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANT EXC. ELECTRONIC TRACTION CO SEAT DVD MONITOR< U4 8> |
| 189 |
I8-98350 835-0 |
|
HARNESS; EXT |
1 |
1704- |
|
A |
RADIO DELETE(UL5),AM/FM,CLO DVD W/DISPLAY(UVA),AM/FM,BL D W/DISPLAY,SMART PHONE(8QK 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START |
| 27 |
I8-98054 257-0 |
|
FUSE UNIT |
AR |
1704- |
|
AB |
02 .485 10A RED |
| 174 |
I8-98197 288-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(D) 6 0A YELLOW |
| 12 |
I8-98229 296-3 |
|
HARNESS; ROOF |
1 |
1704- |
|
B |
|
| 27 |
I8-98054 259-0 |
|
FUSE UNIT |
AR |
1704- |
|
AB |
02 .485 2 0A YELLOW |
| 2 |
I8-94422 640-1 |
|
DIODE; CABLE HARNESS |
AR |
1704- |
|
AB |
(B) BLACK 3P-1.5A |
| 762 |
I8-97309 292-0 |
|
RELAY; IG2 |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYST 02 .485 12V YAZAKI |
| 174 |
I6-98079 191-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(IADG) (B) 3 0A PINK |
| 748 |
I8-98146 837-0 |
|
RELAY; STARTER |
1 |
1704- |
|
AB |
02.100 12V YAZAKI |

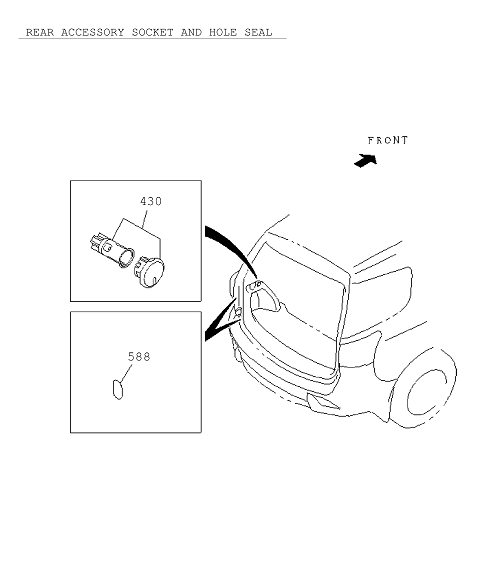

| 588 |
I1-76798 029-0 |
|
SEAL; LOCATION HOLE |
3 |
1704- |
|
A |
EXC. PASSIVE ENTRY AND STAR 16.165 OD=2 5 BLACK |
| 1 |
I8-98351 510-2 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYS AUTO COOLER SYSTEM(CJ2) ELECTRONIC TRACTION CONTROL AM/FM,CLOCK,BLUE TOOTH,DVD ,AM/FM,BLUE TOOTH,CD/DVD W/ PHONE(8QK) REMOTE CONT DOOR LOCK W/ANT EXC. 2ND SEAT DVD MONITOR<U |
| 11 |
I8-98350 824-0 |
|
HARNESS; BODY |
1 |
1704- |
|
B |
EXC. REAR COOLER WO/HEATER< |
| 366 |
I8-98351 231-2 |
|
HARNESS; CABLE,ENG ROOM |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( EXC. PASSIVE ENTRY AND STAR ELECTRONIC TRACTION CONTROL |
| 366 |
I8-98351 228-2 |
|
HARNESS; CABLE,ENG ROOM |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYST AIR BAG DRIVER & PASSENGER AY0) EXC. ELECTRONIC TRACTION CO |
| 1 |
I8-98351 539-2 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYS AUTO COOLER SYSTEM(CJ2) ELECTRONIC TRACTION CONTROL AM/FM,CLOCK,BLUE TOOTH,CD P IO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANT EXC. 2ND SEAT DVD MONITOR<U |
| 366 |
I8-98351 226-2 |
|
HARNESS; CABLE,ENG ROOM |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER AY0) ELECTRONIC TRACTION CONTROL EXC. PASSIVE ENTRY AND STAR |
| 11 |
I8-98350 800-0 |
|
HARNESS; BODY |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYS FRONT SEAT BUCKET MANUAL HE AIR BAG DRIVER & PASSENGER AY0) |
| 764 |
I8-98146 837-0 |
|
RELAY; FRT WIPER |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYST 02.100 12V YAZAKI |
| 100 |
I8-98352 642-0 |
|
HARNESS; RR GATE |
1 |
1704- |
|
B |
REAR COOLER WO/HEATER<C6 9> (B) |
| 14 |
I8-98350 719-0 |
|
HARNESS; HEADLAMP |
1 |
1704- |
|
A |
EXC. REMOTE CONT DOOR LOCK KY> |
| 174 |
I8-98079 189-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(A) 2 0A BLUE |
| 38 |
I8-98350 797-0 |
|
HARNESS; CHAS |
1 |
1704- |
|
A |
|
| 101 |
I8-98102 999-0 |
|
BRACKET; HARNESS CONNECTOR |
1 |
1704- |
|
AB |
|
| 226 |
I8-98350 222-2 |
|
HARNESS; RR DOOR |
1 |
1704- |
|
A |
AUTO DOOR LOCK<AU4 > REMOTE CONT DOOR LOCK W/ANT |
| 27 |
I6-98054 258-0 |
|
FUSE; FACIA HARNESS |
AR |
1704- |
|
AB |
(IADG) 02 .485 15A BLUE |
| 417 |
I8-97362 918-0 |
|
CONNECTOR ASM; ENG HARNESS |
1 |
1704- |
|
A |
COOLER W/FRESH AIR(C65) |
| 174 |
I6-98079 191-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(IADG) (B) 3 0A PINK |
| 11 |
I8-98350 801-0 |
|
HARNESS; BODY |
1 |
1704- |
|
A |
FRONT SEAT BUCKET POWER ASS AIR BAG DRIVER & PASSENGER AY0) EXC. PASSIVE ENTRY AND STAR |
| 1 |
I8-98351 574-1 |
|
HARNESS; CAB |
1 |
1704- |
|
B |
EXC. REAR COOLER WO/HEATER< |
| 662 |
I8-98163 074-0 |
|
HARNESS; IMMOBILIZER |
1 |
1704- |
|
A |
EXC. PASSIVE ENTRY AND STAR |
| 18 |
I8-98159 490-3 |
|
HARNESS; DOOR |
1 |
1704- |
|
B |
|
| 41 |
I8-98054 260-0 |
|
PULLER; FUSE |
1 |
1704- |
|
AB |
|
| 18 |
I8-98159 487-4 |
|
HARNESS; DOOR |
1 |
1704- |
|
A |
AUTO DOOR LOCK<AU4 > AIR BAG DRIVER & PASSENGER AY0) DOOR MIRROR POWER FOLDING C NAL<DE3>,DOOR MIRROR POWER URN SIGNAL<DF9 > EXC. PASSIVE ENTRY AND START REMOTE CONT DOOR LOCK W/ANT |
| 174 |
I8-98079 193-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(B) 5 0A RED |
| 174 |
I6-98079 191-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(IADG) (B) 3 0A PINK |
| 750 |
I8-98005 407-0 |
|
RELAY; RR DEFOGGER |
1 |
1704- |
|
AB |
09.778 12V YAZAKI |
| 12 |
I8-98238 469-3 |
|
HARNESS; ROOF |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER AY0) AM/FM,CLOCK,BLUE TOOTH,CD P IO DELETE(UL5),AM/FM,CLOCK, W/DISPLAY(UVA) 6-SPEAKER SYSTEM BASE<UW5> |
| 1 |
I8-98351 498-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,DVD W ,AM/FM,BLUE TOOTH,CD/DVD W/ PHONE(8QK) EXC. ELECTRONIC TRACTION CO OTE CONT DOOR LOCK W/ANTI T |
| 737 |
I8-97309 292-0 |
|
RELAY; DIMMER |
1 |
1704- |
|
AB |
02 .485 12V YAZAKI |
| 18 |
I8-98200 116-2 |
|
HARNESS; DOOR |
1 |
1704- |
|
A |
AUTO DOOR LOCK<AU4 > AIR BAG DRIVER & PASSENGER AY0) DOOR MIRROR POWER FOLDING C NAL<DE3>,DOOR MIRROR POWER URN SIGNAL<DF9 > REMOTE CONT DOOR LOCK W/ANT |
| 27 |
I6-98054 259-0 |
|
FUSE; FACIA HARNESS |
AR |
1704- |
|
AB |
(IADG) 02 .485 2 0A YELLOW |
| 18 |
I8-98159 506-5 |
|
HARNESS; DOOR |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( AUTO DOOR LOCK<AU4 > DOOR MIRROR POWER FOLDING CH NAL<DE3>,DOOR MIRROR POWER URN SIGNAL<DF9 > EXC. PASSIVE ENTRY AND START REMOTE CONT DOOR LOCK<AP5>, OR LOCK W/ANTI THEFT<7KY> |
| 174 |
I6-98079 193-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(IADG) (B) 5 0A RED |
| 417 |
I8-97362 918-0 |
|
CONNECTOR ASM; ENG HARNESS |
1 |
1704- |
|
B |
|
| 1 |
I8-98351 495-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR(C65) ELECTRONIC TRACTION CONTROL RADIO DELETE(UL5),AM/FM,CLO DVD W/DISPLAY(UVA),AM/FM,BL D W/DISPLAY,SMART PHONE(8QK 2ND SEAT DVD MONITOR<U4 8 > EXC. REMOTE CONT DOOR LOCK W KY> |
| 12 |
I8-98305 097-0 |
|
HARNESS; ROOF |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( 8-SPEAKER SYSTEM CUSTOM<U87 AM/FM,BLUE TOOTH,CD/DVD W/D HONE(8QK) |
| 27 |
I6-98054 257-0 |
|
FUSE; FACIA HARNESS |
AR |
1704- |
|
AB |
(IADG) 02 .485 10A RED |
| 11 |
I8-98350 803-0 |
|
HARNESS; BODY |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( PASSIVE ENTRY AND START SYS FRONT SEAT BUCKET POWER ASS |
| 12 |
I8-98229 297-3 |
|
HARNESS; ROOF |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( AM/FM,CLOCK,BLUE TOOTH,CD PL IO DELETE(UL5),AM/FM,CLOCK, W/DISPLAY(UVA) 6-SPEAKER SYSTEM BASE<UW5> |
| 1 |
I8-98351 500-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2) ELECTRONIC TRACTION CONTROL AM/FM,CLOCK,BLUE TOOTH,DVD ,AM/FM,BLUE TOOTH,CD/DVD W/ PHONE(8QK) EXC. 2ND SEAT DVD MONITOR<U T DOOR LOCK W/ANTI THEFT<7K |
| 1 |
I8-98351 510-2 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYS AUTO COOLER SYSTEM(CJ2) ELECTRONIC TRACTION CONTROL RADIO DELETE(UL5),AM/FM,CLO DVD W/DISPLAY(UVA),AM/FM,BL D W/DISPLAY,SMART PHONE(8QK 2ND SEAT DVD MONITOR<U4 8 > REMOTE CONT DOOR LOCK W/ANT |
| 27 |
I8-98054 258-0 |
|
FUSE UNIT |
AR |
1704- |
|
AB |
02 .485 15A BLUE |
| 27 |
I6-98054 259-0 |
|
FUSE; FACIA HARNESS |
AR |
1704- |
|
AB |
(IADG) 02 .485 2 0A YELLOW |
| 1 |
I8-98351 505-2 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYS COOLER W/FRESH AIR(C65) ELECTRONIC TRACTION CONTROL AM/FM,CLOCK,BLUE TOOTH,DVD ,AM/FM,BLUE TOOTH,CD/DVD W/ PHONE(8QK) REMOTE CONT DOOR LOCK W/ANT EXC. 2ND SEAT DVD MONITOR<U |
| 1 |
I8-98351 485-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR(C65) ELECTRONIC TRACTION CONTROL AM/FM,CLOCK,BLUE TOOTH,DVD ,AM/FM,BLUE TOOTH,CD/DVD W/ PHONE(8QK) REMOTE CONT DOOR LOCK W/ANT EXC. 2ND SEAT DVD MONITOR<U |
| 1 |
I8-98351 495-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR(C65) ELECTRONIC TRACTION CONTROL AM/FM,CLOCK,BLUE TOOTH,DVD ,AM/FM,BLUE TOOTH,CD/DVD W/ PHONE(8QK) EXC. 2ND SEAT DVD MONITOR<U T DOOR LOCK W/ANTI THEFT<7K |
| 746 |
I8-98146 834-0 |
|
RELAY; E CM,MAIN |
1 |
1704- |
|
AB |
03.670 12V YAZAKI |
| 588 |
I1-76798 029-0 |
|
SEAL; LOCATION HOLE |
3 |
1704- |
|
B |
16.165 OD=2 5 BLACK |
| 408 |
I8-98123 115-0 |
|
SOCKET ASM; ACCESSORY |
2 |
1704- |
|
A |
|
| 27 |
I6-98054 257-0 |
|
FUSE; FACIA HARNESS |
AR |
1704- |
|
AB |
(IADG) 02 .485 10A RED |
| 547 |
I8-98258 880-1 |
|
HARNESS; CABLE,SRS |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( |
| 1 |
I8-98351 505-2 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYS COOLER W/FRESH AIR(C65) ELECTRONIC TRACTION CONTROL RADIO DELETE(UL5),AM/FM,CLO DVD W/DISPLAY(UVA),AM/FM,BL D W/DISPLAY,SMART PHONE(8QK 2ND SEAT DVD MONITOR<U4 8 > REMOTE CONT DOOR LOCK W/ANT |
| 189 |
I8-98350 832-0 |
|
HARNESS; EXT |
1 |
1704- |
|
B |
|
| 12 |
I8-98304 000-0 |
|
HARNESS; ROOF |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER AY0) AM/FM,CLOCK,BLUE TOOTH,CD P IO DELETE(UL5),AM/FM,CLOCK, W/DISPLAY(UVA) 8-SPEAKER SYSTEM CUSTOM<U87 |
| 27 |
I8-98281 195-0 |
|
FUSE UNIT |
AR |
1704- |
|
AB |
5A ORANGE |
| 366 |
I8-98351 229-2 |
|
HARNESS; CABLE,ENG ROOM |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( PASSIVE ENTRY AND START SYS EXC. ELECTRONIC TRACTION CO |
| 1 |
I8-98351 490-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2) ELECTRONIC TRACTION CONTROL RADIO DELETE(UL5),AM/FM,CLO DVD W/DISPLAY(UVA),AM/FM,BL D W/DISPLAY,SMART PHONE(8QK 2ND SEAT DVD MONITOR<U4 8 > REMOTE CONT DOOR LOCK W/ANT |
| 1 |
I8-98351 493-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2) AM/FM,CLOCK,BLUE TOOTH,DVD W ,AM/FM,BLUE TOOTH,CD/DVD W/ PHONE(8QK) REMOTE CONT DOOR LOCK W/ANT EXC. ELECTRONIC TRACTION CO |
| 11 |
I8-98350 804-0 |
|
HARNESS; BODY |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( PASSIVE ENTRY AND START SYS FRONT SEAT BUCKET MANUAL HE |
| 1 |
I8-98351 542-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2) AM/FM,CLOCK,BLUE TOOTH,CD PL IO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANT EXC. ELECTRONIC TRACTION CO SEAT DVD MONITOR< U4 8> |
| 18 |
I8-98225 365-1 |
|
HARNESS; DOOR |
1 |
1704- |
|
B |
|
| 758 |
I8-97309 292-0 |
|
RELAY; RR WIPER |
1 |
1704- |
|
AB |
02 .485 12V YAZAKI |
| 18 |
I8-98159 488-4 |
|
HARNESS; DOOR |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( AUTO DOOR LOCK<AU4 > DOOR MIRROR POWER FOLDING CH NAL<DE3>,DOOR MIRROR POWER URN SIGNAL<DF9 > EXC. PASSIVE ENTRY AND START REMOTE CONT DOOR LOCK W/ANT |
| 1 |
I8-98351 531-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2) ELECTRONIC TRACTION CONTROL AM/FM,CLOCK,BLUE TOOTH,CD P IO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANT EXC. 2ND SEAT DVD MONITOR<U |
| 739 |
I8-98005 407-0 |
|
RELAY; TAIL LAMP |
1 |
1704- |
|
AB |
09.778 12V YAZAKI |
| 1 |
I8-98351 544-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PL IO DELETE(UL5) EXC. ELECTRONIC TRACTION CO SEAT DVD MONITOR< U48>,REMO OCK W/ANTI THEFT<7KY> |
| 366 |
I8-98351 222-2 |
|
HARNESS; CABLE,ENG ROOM |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYST AIR BAG DRIVER & PASSENGER AY0) ELECTRONIC TRACTION CONTROL |
| 366 |
I8-98351 209-2 |
|
HARNESS; CABLE,ENG ROOM |
1 |
1704- |
|
B |
|
| 226 |
I8-98350 221-2 |
|
HARNESS; RR DOOR |
1 |
1704- |
|
A |
EXC. REMOTE CONT DOOR LOCK KY> |
| 1 |
I8-98351 488-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,DVD W ,AM/FM,BLUE TOOTH,CD/DVD W/ PHONE(8QK) REMOTE CONT DOOR LOCK W/ANT EXC. ELECTRONIC TRACTION CO |
| 1 |
I8-98351 533-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR(C65) ELECTRONIC TRACTION CONTROL AM/FM,CLOCK,BLUE TOOTH,CD P IO DELETE(UL5) EXC. 2ND SEAT DVD MONITOR<U T DOOR LOCK W/ANTI THEFT<7K |
| 759 |
I8-98005 407-0 |
|
RELAY; RR COOLER |
1 |
1704- |
|
AB |
09.778 12V YAZAKI |
| 12 |
I8-98305 099-0 |
|
HARNESS; ROOF |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( 6-SPEAKER SYSTEM BASE<UW5> AM/FM,BLUE TOOTH,CD/DVD W/D HONE(8QK) |
| 226 |
I8-98350 219-2 |
|
HARNESS; RR DOOR |
1 |
1704- |
|
B |
|
| 174 |
I6-98079 192-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(IADG) (B) 4 0A GREEN |
| 734 |
I8-98005 407-0 |
|
RELAY; ACC SOCKET |
1 |
1704- |
|
AB |
09.778 12V YAZAKI |
| 27 |
I6-98054 258-0 |
|
FUSE; FACIA HARNESS |
AR |
1704- |
|
AB |
(IADG) 02 .485 15A BLUE |
| 174 |
I6-98079 193-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(IADG) (B) 5 0A RED |
| 184 |
I8-98113 099-0 |
|
COVER; RELAY & FUSE BOX |
1 |
1704- |
|
AB |
(B) |
| 35 |
I8-98113 097-0 |
|
BOX; RELAY & FUSE |
1 |
1704- |
|
AB |
|
| 483 |
I8-98290 099-1 |
|
HARNESS; EXT,RADIO |
1 |
1704- |
|
A |
EXC. 6-SPEAKER SYSTEM BASE< |
| 18 |
I8-98209 211-3 |
|
HARNESS; DOOR |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( PASSIVE ENTRY AND START SYST AUTO DOOR LOCK<AU4 > DOOR MIRROR POWER FOLDING C NAL<DE3>,DOOR MIRROR POWER URN SIGNAL<DF9 > REMOTE CONT DOOR LOCK W/ANT |
| 1 |
I8-98351 500-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2) ELECTRONIC TRACTION CONTROL RADIO DELETE(UL5),AM/FM,CLO DVD W/DISPLAY(UVA),AM/FM,BL D W/DISPLAY,SMART PHONE(8QK 2ND SEAT DVD MONITOR<U4 8 > EXC. REMOTE CONT DOOR LOCK W KY> |
| 430 |
I8-98142 409-1 |
|
COVER ASM; SOCKET,ACCESSORY |
1 |
1704- |
|
B |
4115 |
| 189 |
I8-98350 834-0 |
|
HARNESS; EXT |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYST AM/FM,CLOCK,BLUE TOOTH,CD P 2ND SEAT DVD MONITOR<U4 8 > |
| 731 |
I8-98005 407-0 |
|
RELAY; DRL |
1 |
1704- |
|
AB |
09.778 12V YAZAKI |
| 174 |
I6-98079 192-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(IADG) (B) 4 0A GREEN |
| 738 |
I8-98005 407-0 |
|
RELAY; HEADLAMP |
1 |
1704- |
|
AB |
09.778 12V YAZAKI |
| 1 |
I8-98351 548-2 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYS AUTO COOLER SYSTEM(CJ2) AM/FM,CLOCK,BLUE TOOTH,CD PL IO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANT EXC. ELECTRONIC TRACTION CO SEAT DVD MONITOR< U4 8> |
| 4 |
I8-98166 751-0 |
|
BOX ASM; FUSE,HARNESS |
1 |
1704- |
|
AB |
|
| 38 |
I8-98350 793-0 |
|
HARNESS; CHAS |
1 |
1704- |
|
B |
|
| 1 |
I8-98351 537-2 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYS COOLER W/FRESH AIR(C65) ELECTRONIC TRACTION CONTROL AM/FM,CLOCK,BLUE TOOTH,CD P IO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANT EXC. 2ND SEAT DVD MONITOR<U |
| 174 |
I8-98079 192-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(B) 4 0A GREEN |
| 1 |
I8-98351 508-2 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYS COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,DVD W ,AM/FM,BLUE TOOTH,CD/DVD W/ PHONE(8QK) REMOTE CONT DOOR LOCK W/ANT EXC. ELECTRONIC TRACTION CO |
| 1 |
I8-98351 529-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR(C65) ELECTRONIC TRACTION CONTROL AM/FM,CLOCK,BLUE TOOTH,CD P IO DELETE(UL5) REMOTE CONT DOOR LOCK W/ANT EXC. 2ND SEAT DVD MONITOR<U |
| 742 |
I8-98005 407-0 |
|
RELAY; THERMO |
1 |
1704- |
|
AB |
09.778 12V YAZAKI |
| 761 |
I8-97309 292-0 |
|
RELAY; ACC |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYST 02 .485 12V YAZAKI |
| 430 |
I8-98123 123-0 |
|
COVER ASM; SOCKET,ACCESSORY |
1 |
1704- |
|
A |
4115 |
| 11 |
I8-98350 822-0 |
|
HARNESS; BODY |
1 |
1704- |
|
B |
REAR COOLER WO/HEATER< C6 9> |
| 174 |
I1-82516 028-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(C) 120A WHITE |
| 189 |
I8-98350 836-0 |
|
HARNESS; EXT |
1 |
1704- |
|
A |
AM/FM,CLOCK,BLUE TOOTH,CD P 2ND SEAT DVD MONITOR<U4 8 > EXC. PASSIVE ENTRY AND START |
| 1 |
I8-98351 535-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM (CJ2) ELECTRONIC TRACTION CONTROL AM/FM,CLOCK,BLUE TOOTH,CD P IO DELETE(UL5) EXC. 2ND SEAT DVD MONITOR<U T DOOR LOCK W/ANTI THEFT<7K |
| 13 |
I8-98340 309-0 |
|
HARNESS; ENG |
1 |
1704- |
|
B |
|
| 184 |
I8-98113 098-0 |
|
COVER; RELAY & FUSE BOX |
1 |
1704- |
|
AB |
(A) |
| 2 |
I8-94422 639-1 |
|
DIODE; CABLE HARNESS |
AR |
1704- |
|
AB |
(A) BLACK 2P-1.5A |
| 27 |
I6-98054 258-0 |
|
FUSE; FACIA HARNESS |
AR |
1704- |
|
AB |
(IADG) 02 .485 15A BLUE |
| 14 |
I8-98350 717-0 |
|
HARNESS; HEADLAMP |
1 |
1704- |
|
B |
|
| 174 |
I6-98079 193-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(IADG) (B) 5 0A RED |
| 1 |
I8-98351 485-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR(C65) ELECTRONIC TRACTION CONTROL RADIO DELETE(UL5),AM/FM,CLO DVD W/DISPLAY(UVA),AM/FM,BL D W/DISPLAY,SMART PHONE(8QK 2ND SEAT DVD MONITOR<U4 8 > REMOTE CONT DOOR LOCK W/ANT |
| 189 |
I8-98350 833-0 |
|
HARNESS; EXT |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYS RADIO DELETE(UL5),AM/FM,CLO DVD W/DISPLAY(UVA),AM/FM,BL D W/DISPLAY,SMART PHONE(8QK 2ND SEAT DVD MONITOR<U48> |
| 1 |
I8-98351 546-1 |
|
HARNESS; CAB |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2) AM/FM,CLOCK,BLUE TOOTH,CD PL IO DELETE(UL5) EXC. ELECTRONIC TRACTION CO SEAT DVD MONITOR< U48>,REMO OCK W/ANTI THEFT<7KY> |
| 11 |
I8-98350 799-0 |
|
HARNESS; BODY |
1 |
1704- |
|
A |
PASSIVE ENTRY AND START SYST FRONT SEAT BUCKET POWER ASS AIR BAG DRIVER & PASSENGER AY0) |
| 1 |
I8-98351 573-1 |
|
HARNESS; CAB |
1 |
1704- |
|
B |
REAR COOLER WO/HEATER< C6 9> |
| 11 |
I8-98350 812-0 |
|
HARNESS; BODY |
1 |
1704- |
|
A |
FRONT SEAT BUCKET MANUAL HE AIR BAG DRIVER & PASSENGER AY0) EXC. PASSIVE ENTRY AND STAR |
| 18 |
I8-98225 364-1 |
|
HARNESS; DOOR |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4 > DOOR MIRROR POWER FOLDING CH NAL<DE3>,DOOR MIRROR POWER URN SIGNAL<DF9 > EXC. REMOTE CONT DOOR LOCK W KY> |
| 18 |
I8-98225 362-1 |
|
HARNESS; DOOR |
1 |
1704- |
|
A |
AIR BAG DRIVER & PASSENGER( REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4 > DOOR MIRROR POWER FOLDING C NAL<DE3>,DOOR MIRROR POWER URN SIGNAL<DF9 > REMOTE CONT DOOR LOCK W/ANT |
| 662 |
I8-98163 074-0 |
|
HARNESS; IMMOBILIZER |
1 |
1704- |
|
B |
|
| 174 |
I6-98079 193-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(IADG) (B) 5 0A RED |
| 83 |
I8-98198 188-2 |
|
HARNESS; AIR CONDITIONER |
1 |
1704- |
|
A |
|
| 547 |
I8-98258 880-1 |
|
HARNESS; CABLE,SRS |
1 |
1704- |
|
B |
|
| 747 |
I8-98146 837-0 |
|
RELAY; GLOW |
1 |
1704- |
|
AB |
02.100 12V YAZAKI |
| 174 |
I8-98079 191-0 |
|
FUSE; SLOW BLOW |
AR |
1704- |
|
AB |
(B) 3 0A PINK |
| 18 |
I8-98230 580-1 |
|
HARNESS; DOOR |
1 |
1704- |
|
A |
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4 > AIR BAG DRIVER & PASSENGER AY0) DOOR MIRROR POWER FOLDING C NAL<DE3>,DOOR MIRROR POWER URN SIGNAL<DF9 > REMOTE CONT DOOR LOCK W/ANT |
| 27 |
I6-98054 257-0 |
|
FUSE; FACIA HARNESS |
AR |
1704- |
|
AB |
(IADG) 02 .485 10A RED |
