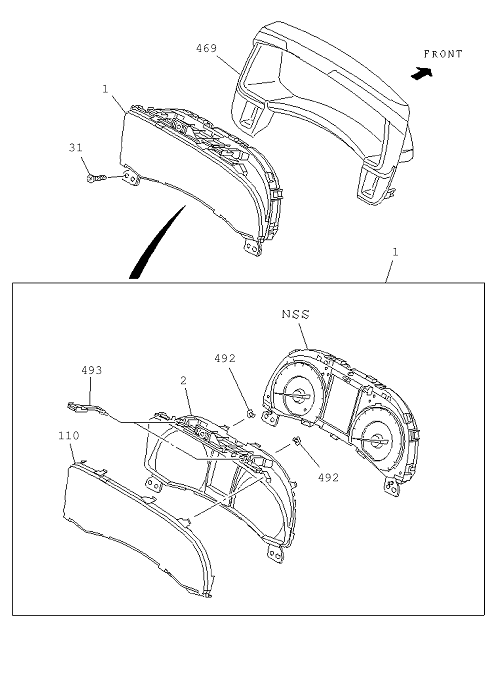

8-21 | METER ASM
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 469 | I8-97416 628-1 | PLATE; INSTRUMENT PANEL | 1 | 1704- | B | BLACK | ||
| 1 | I8-98376 174-0 | METER COMPL; CLUSTER | 1 | 1704- | B | |||
| 110 | I8-98291 002-0 | GLASS; CLUSTER METER | 1 | 1704- | B | |||
| 1 | I8-98376 179-0 | METER COMPL; CLUSTER | 1 | 1704- | A | |||
| 2 | I8-98291 004-0 | PANEL; CLUSTER | 1 | 1704- | B | |||
| 2 | I8-98375 045-0 | PANEL; CLUSTER | 1 | 1704- | A | |||
| 31 | I8-98167 449-0 | SCREW; METER,INST PANEL | 3 | 1704- | AB | 08.083 M5X16 TAPPING | ||
| 110 | I8-98291 003-0 | GLASS; CLUSTER METER | 1 | 1704- | A | |||
| 469 | I8-97461 461-2 | PLATE; INSTRUMENT PANEL | 1 | 1704- | A | BLACK |
