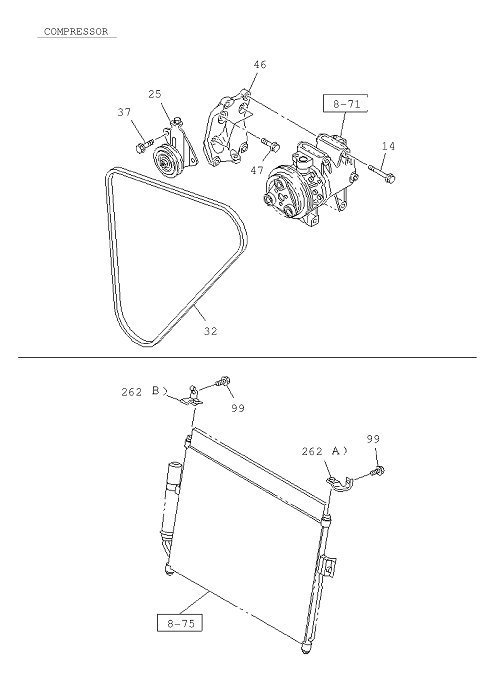

8-50 | AIR CONDITIONING SYSTEM; FRONT
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 34 | I8-98243 990-0 | SHAFT; IDLE PULLEY | 1 | 1704- | AB | |||
| 32 | I8-97985 122-0 | BELT; A/C CMPR | 1 | 1704- | AB | L=144 5 BANDO | ||
| 211 | I8-98173 569-0 | CLIP; HOSE | 1 | 1704- | B | |||
| 47 | I0-28650 825-0 | BOLT; BRKT TO BODY | 4 | 1704- | AB | 06 .216 M8X25 FLANGE | ||
| 14 | I8-94397 027-1 | BOLT; CMPR | 4 | 1704- | AB | 02 .277 M10X95 FLANGE | ||
| 31 | I8-98243 987-0 | BOLT; ADJ,IDLE PULLEY | 1 | 1704- | AB | |||
| 262 | I8-98103 645-0 | BRACKET; CONDENSER | 1 | 1704- | AB | (A) | ||

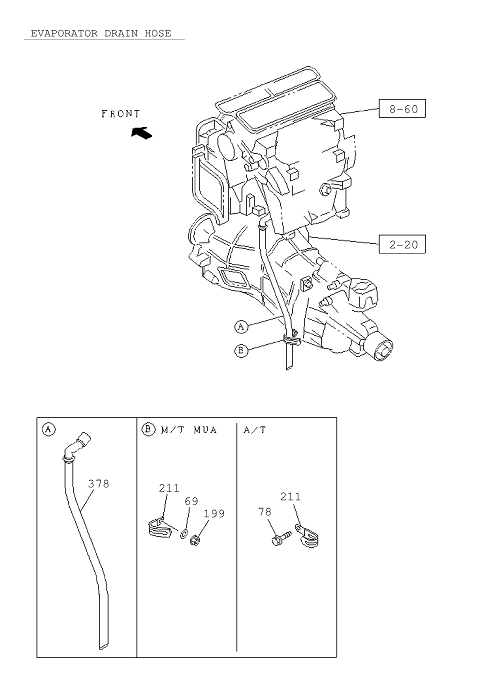

| 378 | I8-98163 367-2 | HOSE; DRAIN,EVAPORATOR | 1 | 1704- | AB | |||
| 69 | I0-91614 610-0 | WASHER; PL,EVAP | 1 | 1704- | B | 00 . 002 ID=10.5 OD=22 | ||
| 211 | I8-97375 643-0 | CLIP; HOSE | 1 | 1704- | A | 02.343 ID=22 L=3 5 | ||
| 199 | I0-91180 110-0 | NUT | 1 | 1704- | B | 03.162 M10 FLANGE | ||
| 33 | I8-97377 331-0 | NUT; IDLER PULLEY | 1 | 1704- | AB | M10 | ||
| 32 | I8-97985 121-A | BELT A/C CMPR, D-MAX | 1 | 1704- | AB | (IADG) L=144 5 MITSUBOSHI | ||
| 29 | I8-97377 334-1 | COVER; DUST,IDLE PULLEY | 1 | 1704- | AB | |||
| 32 | I8-97985 121-A | BELT; A/C CMPR | 1 | 1704- | AB | (IADG) L=144 5 MITSUBOSHI | ||
| 26 | I8-98243 986-0 | BRACKET; IDLE PULLEY,A/C | 1 | 1704- | AB | |||
| 25 | I8-98205 963-0 | PULLEY ASM; IDLER,CMPR | 1 | 1704- | AB | |||
| 30 | I8-98243 991-0 | COLLAR; IDLE PULLEY | 1 | 1704- | AB | |||
| 99 | I0-28650 616-0 | BOLT; BRKT | 2 | 1704- | AB | 02 .343 M6X16 FLANGE | ||
| 27 | I8-97377 328-0 | PULLEY; IDLE,A/C | 1 | 1704- | AB | |||
| 46 | I8-98226 839-0 | BRACKET; CMPR | 1 | 1704- | AB | |||
| 78 | I0-52000 612-0 | BOLT; EVAP,A/C | 1 | 1704- | A | M6X12 W/LK&PL WASHER | ||
| 37 | I0-28050 816-0 | BOLT; PULLEY BRKT | 2 | 1704- | AB | 02 .343 M8X16 FLANGE | ||
| 262 | I8-98103 644-0 | BRACKET; CONDENSER | 1 | 1704- | AB | (B) |
