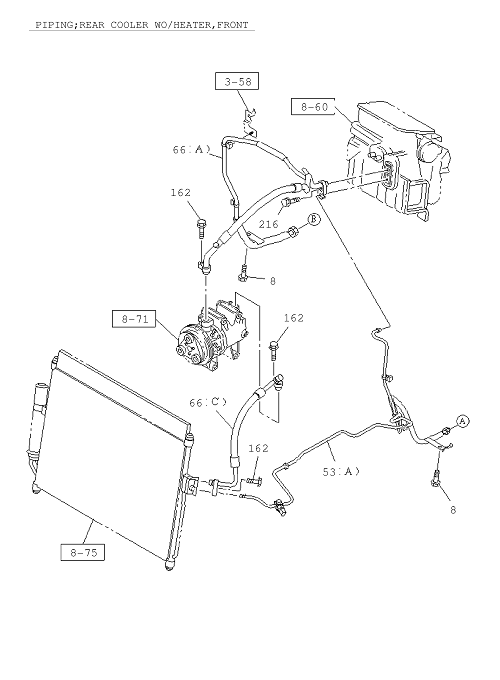

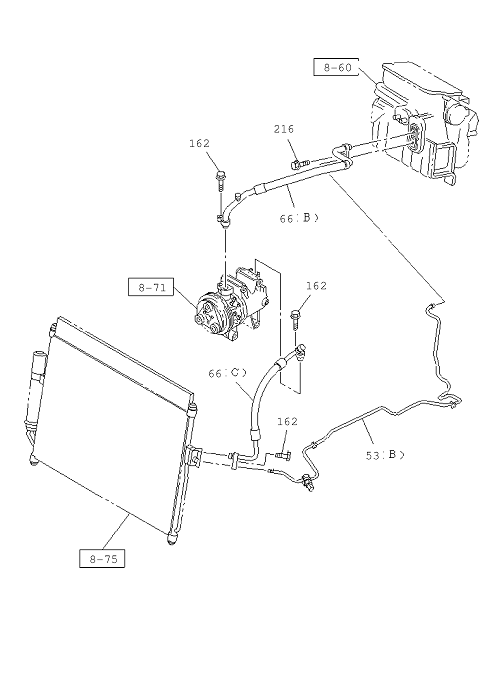

8-52 | PIPING; AIR CONDITIONING
MUX
MU-X 2017
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 122 | I8-98164 690-0 | GASKET | 1 | 1704- | AB | |||
| 8 | I0-28650 620-0 | BOLT; CLIP | 10 | 1704- | A | 03.162 M6X2 0 FLANGE | ||
| 185 | I8-98197 726-1 | PIPE; EVAP TO FLEX HOSE,PRESS LO | 1 | 1704- | A | |||
| 123 | I8-98164 689-0 | GASKET; RECEIVER PIPE | 3 | 1704- | A | |||

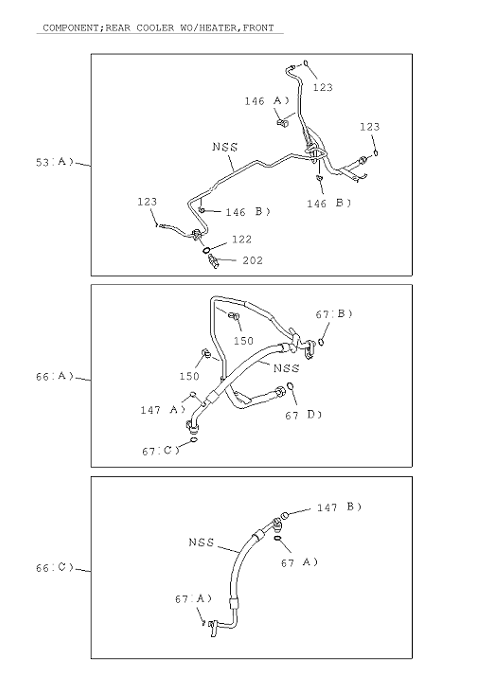

| 146 | I8-97370 357-0 | CLIP; RECEIVER PIPE | 1 | 1704- | B | REAR COOLER WO/HEATER<C69 (A) | ||
| 146 | I8-98193 622-0 | CLIP; RECEIVER PIPE | 2 | 1704- | AB | (B) | ||
| 162 | I0-28650 825-0 | BOLT; FLEX HOSE | 3 | 1704- | AB | 06 .216 M8X2 5 FLANGE | ||
| 8 | I0-28650 620-0 | BOLT; CLIP | 10 | 1704- | B | REAR COOLER WO/HEATER<C69> 03.162 M6X2 0 FLANGE | ||
| 116 | I8-98193 624-0 | GASKET; PIPE | 3 | 1704- | B | REAR COOLER WO/HEATER<C69 09.260 (B) | ||
| 216 | I0-28650 620-0 | BOLT; HOSE FIX | 1 | 1704- | AB | M6X2 0 FLANGE | ||
| 53 | I8-98271 435-0 | PIPE; RECEIVER TANK TO EVAP | 1 | 1704- | A | (C) HIGH PRESSURE | ||
| 67 | I8-98193 624-0 | GASKET; FLEX HOSE | 2 | 1704- | AB | (A) | ||
| 53 | I8-98197 724-1 | PIPE; RECEIVER TANK TO EVAP | 1 | 1704- | B | REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE | ||
| 66 | I8-98197 721-1 | HOSE; FLEX,A/C | 1 | 1704- | B | REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE | ||
| 66 | I8-98197 721-1 | HOSE; FLEX,A/C | 1 | 1704- | A | (A) LOW PRESSURE | ||
| 67 | I8-98164 688-0 | GASKET; FLEX HOSE | 1 | 1704- | AB | (C) | ||
| 185 | I8-98197 725-1 | PIPE; EVAP TO FLEX HOSE,PRESS LO | 1 | 1704- | A | |||
| 116 | I8-97321 351-0 | GASKET; PIPE | 1 | 1704- | A | 09.260 (A) | ||

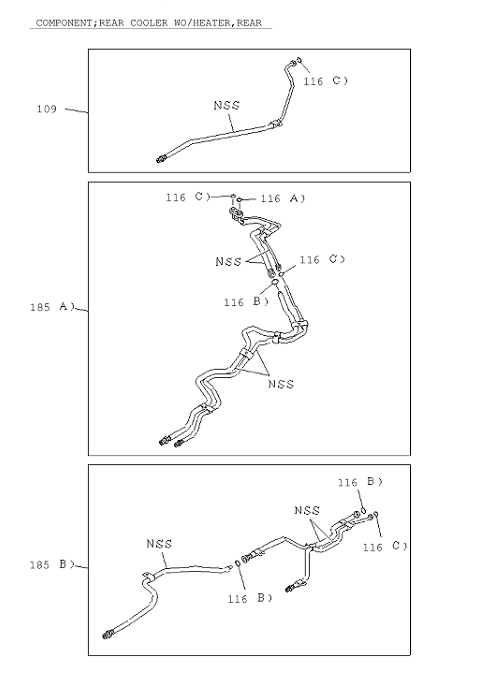

| 185 | I8-98197 726-1 | PIPE; EVAP TO FLEX HOSE,PRESS LO | 1 | 1704- | B | REAR COOLER WO/HEATER<C69 | ||
| 150 | I8-97370 357-0 | CLIP; HOSE | 2 | 1704- | A | 9196 | ||
| 67 | I8-97919 270-0 | GASKET; FLEX HOSE | 1 | 1704- | A | 09.195 (D) SCAL | ||

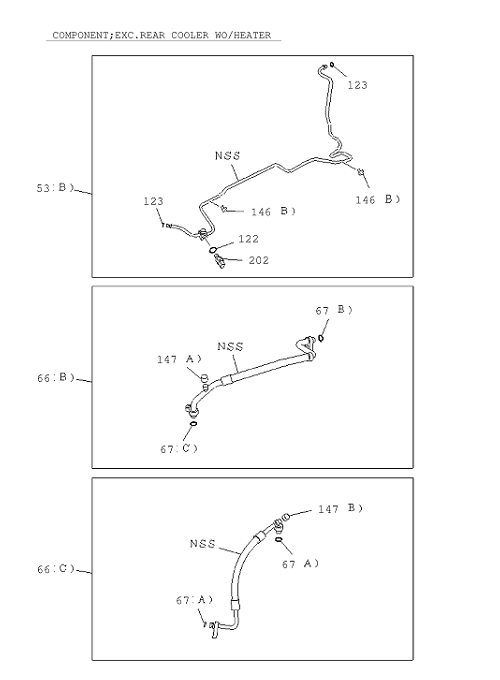

| 53 | I8-98129 150-4 | PIPE; RECEIVER TANK TO EVAP | 1 | 1704- | B | EXC. REAR COOLER WO/HEATE (A) HIGH PRESSURE | ||
| 185 | I8-98197 725-1 | PIPE; EVAP TO FLEX HOSE,PRESS LO | 1 | 1704- | B | REAR COOLER WO/HEATER<C69 | ||
| 66 | I8-98129 345-1 | HOSE; FLEX,A/C | 1 | 1704- | AB | (C) HIGH PRESSURE | ||
| 147 | I8-98193 625-0 | CAP; FLEX HOSE | 1 | 1704- | AB | (B) | ||
| 147 | I8-98193 623-0 | CAP; FLEX HOSE | 1 | 1704- | AB | (A) | ||
| 116 | I8-97919 270-0 | GASKET; PIPE | 4 | 1704- | A | 09.195 (C) SCAL | ||
| 123 | I8-98164 689-0 | GASKET; RECEIVER PIPE | 2 | 1704- | B | EXC. REAR COOLER WO/HEATE | ||
| 116 | I8-97321 351-0 | GASKET; PIPE | 1 | 1704- | B | REAR COOLER WO/HEATER<C69 09.260 (A) | ||

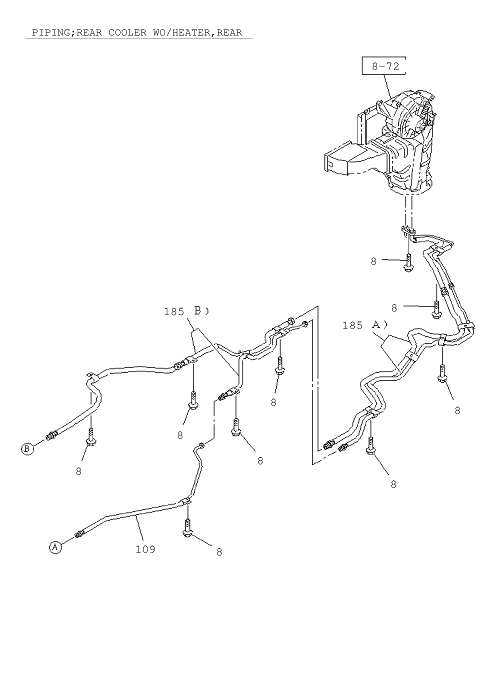

| 109 | I8-98197 727-0 | PIPE; PIPE TO PIPE | 1 | 1704- | A | |||
| 116 | I8-98193 624-0 | GASKET; PIPE | 3 | 1704- | A | 09.260 (B) | ||
| 202 | I8-98164 691-1 | SWITCH; PRESSURE | 1 | 1704- | AB | |||

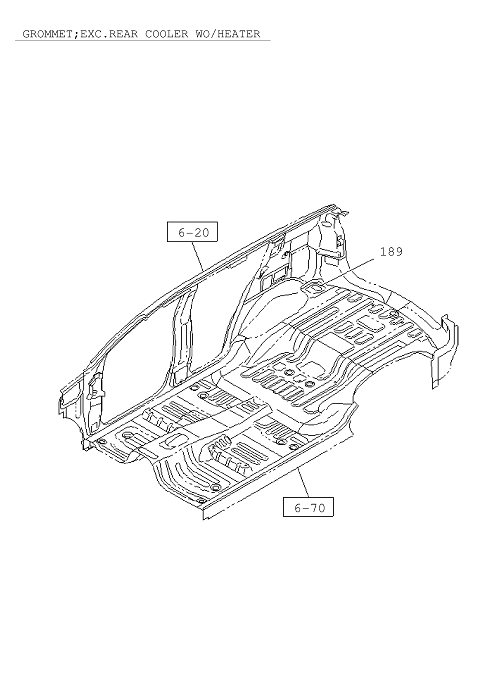

| 189 | I8-98192 298-0 | GROMMET | 1 | 1704- | B | EXC. REAR COOLER WO/HEATE | ||
| 123 | I8-98164 689-0 | GASKET; RECEIVER PIPE | 3 | 1704- | B | REAR COOLER WO/HEATER<C69 | ||
| 67 | I8-98164 687-0 | GASKET; FLEX HOSE | 1 | 1704- | AB | (B) | ||
| 116 | I8-97919 270-0 | GASKET; PIPE | 4 | 1704- | B | REAR COOLER WO/HEATER<C69 09.195 (C) SCAL | ||
| 66 | I8-98102 233-3 | HOSE; FLEX,A/C | 1 | 1704- | B | EXC. REAR COOLER WO/HEATE (B) LOW PRESSURE | ||
| 150 | I8-97370 357-0 | CLIP; HOSE | 2 | 1704- | B | REAR COOLER WO/HEATER<C69 09.196 | ||
| 109 | I8-98197 727-0 | PIPE; PIPE TO PIPE | 1 | 1704- | B | REAR COOLER WO/HEATER<C69 | ||
| 67 | I8-97919 270-0 | GASKET; FLEX HOSE | 1 | 1704- | B | REAR COOLER WO/HEATER<C69 09.195 (D) SCAL |
