0-28 | VENTILATION SYSTEM
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

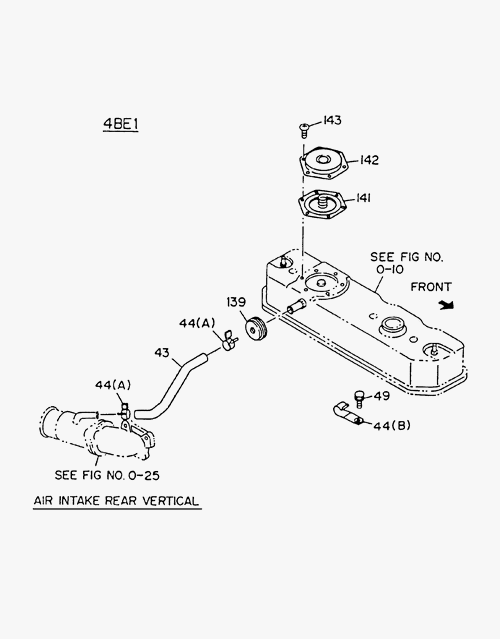

| 44 | I8-98150 355-0 | CLIP HOSE, PCV | 2 | 9312- | 4BE1 | (A) ID=21 ( NKR 58 ) | ||

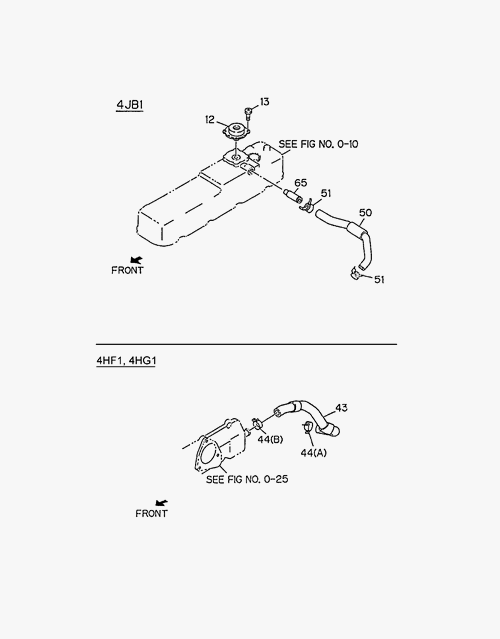

| 12 | I8-97119 887-0 | VENTILATOR AIR | 1 | 9312-0301 | 4JB1 | NHR 55 | ||

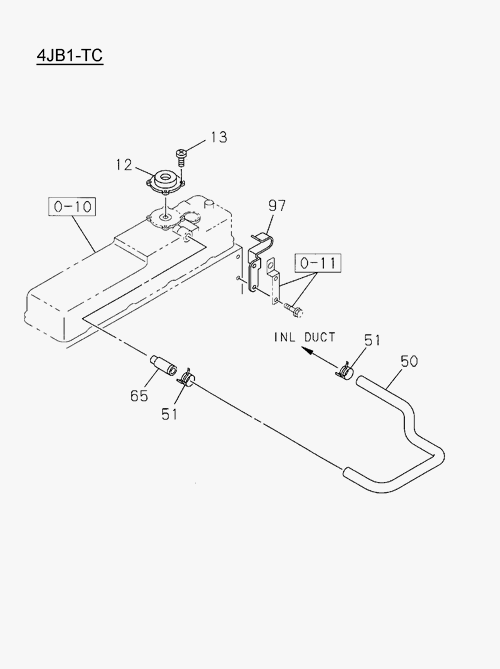

| 51 | I8-98150 355-0 | CLIP HOSE PCV | 2 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 | ||
| 43 | I6-97375 924-0 | HOSE PCV | 1 | 0403- | 4HF1 | (IADG) NKR 66, NKR 66-2, NKR 71 | ||
| 13 | I0-36220 408-0 | SCREW VENTILATOR TO HD COVER | 4 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 43 | I6-97093 534-0 | HOSE PCV | 1 | 9312-9510 | 4HF1 | (IADG) NKR 66 | ||
| 51 | I8-98150 355-0 | CLIP HOSE PCV | 2 | 9312- | 4JB1 | ID=20.4 ( NHR 55 ) | ||
| 12 | I8-97119 887-0 | VENTILATOR AIR | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||

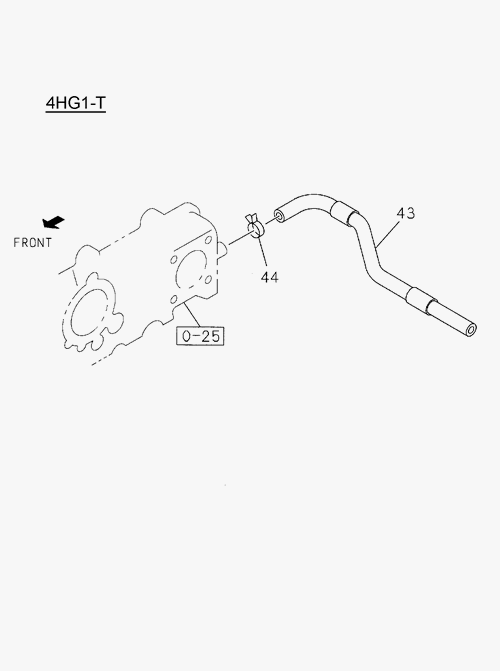

| 44 | I8-98150 355-0 | CLIP HOSE, PCV | 2 | 0702- | 4HG1-T | (A) ID=21 ( NKR71 EURO2 ) | ||
| 97 | I8-97212 350-0 | BRACKET HOSE | 1 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 | ||
| 44 | I8-94322 748-1 | CLIP HOSE, PCV | 1 | 9312- | 4BE1 | (B) ID=21 ( NKR 58 ) | ||
| 50 | I8-97253 667-0 | HOSE PCV | 1 | 9312- | 4JB1 | NHR 58 | ||
| 43 | I8-97093 534-0 | HOSE PCV | 1 | 9312-9510 | 4HF1 | NKR 66 | ||
| 65 | I8-94250 615-1 | PIPE BREATHER | 1 | 9312- | 4JB1 | NHR 55 | ||
| 49 | I0-50540 612-0 | BOLT PCV HOSE CLIP | 1 | 9312- | 4BE1 | ID=8 ( NKR 58 ) | ||
| 12 | I8-97119 887-0 | VENTILATOR AIR | 1 | 0302- | 4JB1 | NHR 55 | ||
| 44 | I8-94466 382-0 | CLIP HOSE, PCV | 1 | 9312- | 4HF1 | (B) ID= 22.7 | ||
| 143 | I8-97024 319-0 | SCREW PCV COVER | 6 | 9312- | 4BE1 | M 5 X 10 PAN - HD | ||
| 43 | I8-97375 134-A | HOSE PCV | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 142 | I1-14362 002-0 | COVER PCV | 1 | 9312- | 4BE1 | NKR 58 | ||
| 141 | I8-94110 111-0 | DIAPHRAGM ASM | 1 | 9312- | 4BE1 | NKR 58 | ||
| 139 | I8-94104 696-0 | SEAL RUBBER, PCV HOSE | 1 | 9312- | 4BE1 | NKR 58 | ||
| 13 | I0-36220 408-0 | SCREW VENTILATOR TO HD COVER | 4 | 9312- | 4JB1 | NHR 55 | ||
| 44 | I8-94342 958-0 | CLIP HOSE, PCV | 1 | 9312-9510 | 4HF1 | (A) ID= 25 ( NKR 66 ) | ||
| 44 | I8-94466 382-0 | CLIP HOSE, PCV | 1 | 0702- | 4HG1-T | (B) ID= 22.7 | ||
| 43 | I8-97139 586-3 | HOSE PCV | 1 | 9607- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 43 | I8-94479 574-0 | HOSE PCV | 1 | 9312- | 4BE1 | AIR INTAKE REAR VERTICAL | ||
| 50 | I8-98178 711-0 | HOSE PCV | 1 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 | ||
| 43 | I8-97139 586-3 | HOSE PCV | 1 | 9511-9606 | 4HF1 | NKR 66 | ||
| 43 | I8-97375 924-0 | HOSE PCV | 1 | 0403- | 4HF1 | NKR 66, NKR 66-2, NKR 71 |
