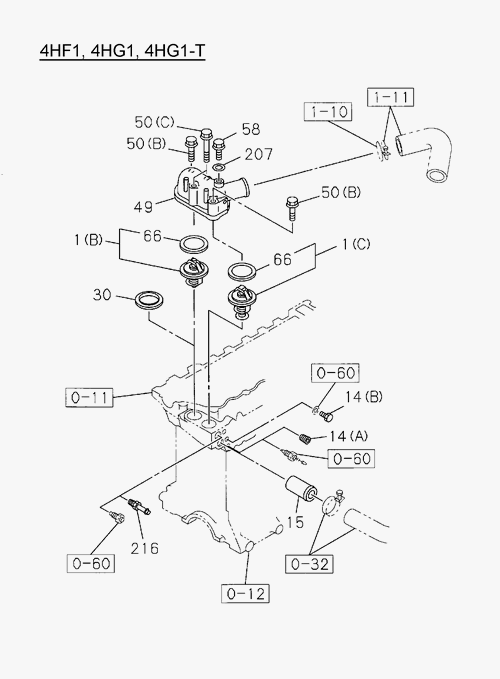

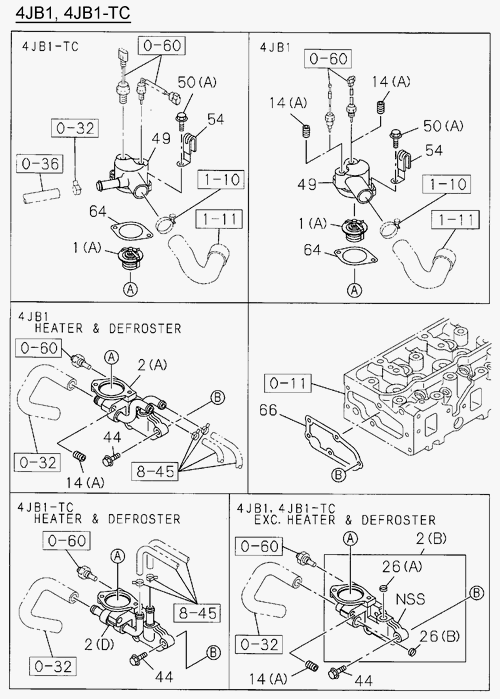

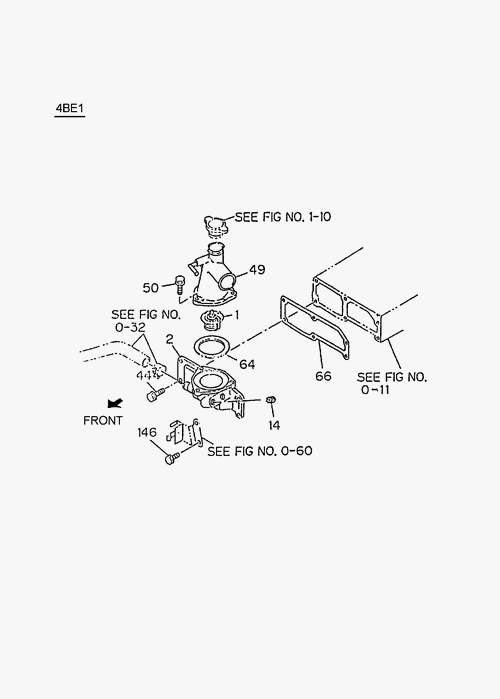

0-31 | TERMOSTAT AND HOUSING
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97300 787-3 | THERMOSTAT | 1 | 9312- | 4HF1 | (B) 85 0 C ( NKR 66 ) | ||
| 15 | I8-94342 574-0 | PIPE; BYPASS | 1 | 9501- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 50 | I0-50740 845-0 | BOLT; OUTLET PIPE | 2 | 9312- | 4JB1 | M 8 X 45 W/SP & PL WASHER | ||
| 66 | I8-98280 281-0 | GASKET; THERMOSTAT HSG | 1 | 9611-9907 | 4HF1 | NKR 66 | ||
| 30 | I8-97373 039-1 | SPACER | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 50 | I1-09044 072-1 | BOLT; OUTLET PIPE | 2 | 9608- | 4HF1 | (B) M8X65 NKR71 EURO 2 | ||
| 1 | I8-97300 789-3 | THERMOSTAT | 1 | 0011- | 4HF1 | (C) 82 0 C ( NKR66, 66-2, 71 ) | ||
| 15 | I8-94342 574-0 | PIPE; BYPASS | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 50 | I0-28650 825-0 | BOLT; OUTLET PIPE | 2 | 9811- | 4HF1 | (B) M8X25 (NKR66, NKR66-2) | ||
| 66 | I8-97216 156-0 | GASKET; THERMOSTAT HSG | 1 | 9903- | 4JB1 | NHR 55 | ||
| 1 | I8-97254 816-1 | THERMOSTAT | 1 | 0702- | 4JB1-TC | 82 0 C ( NHR55/NKR55 E2 ) | ||
| 26 | I5-11219 008-0 | CUP; SEALING, VLV, VENTILATION | 2 | 9312- | 4JB1 | NHR 55 | ||
| 50 | I8-97023 062-0 | BOLT; OUTLET PIPE | 2 | 9312-9607 | 4HF1 | (B) M 8 X 85 ( NKR 66 ) | ||
| 14 | I5-09605 005-0 | PLUG; SW | 1 | 0702- | 4HG1-T | (A) NKR71 EURO 2 | ||
| 49 | I8-97372 769-A | PIPE; WATER OUTLET | 1 | 0408- | 4HF1 | NKR 66-2, NKR 71 | ||
| 44 | I0-50540 830-0 | BOLT; HSG TO HD | 3 | 0702- | 4JB1-TC | M8X30 NHR55,NKR55 EURO 2 | ||
| 15 | I8-94343 211-1 | PIPE; BYPASS | 1 | 9312- | 4JB1 | NHR 55 | ||
| 66 | I8-98280 281-0 | GASKET; THERMOSTAT HSG | 1 | 9312-9610 | 4HF1 | NKR 66 | ||
| 49 | I8-97372 769-A | PIPE; WATER OUTLET | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 44 | I8-94184 573-1 | BOLT; HSG TO HD | 3 | 9312- | 4BE1 | M10X25 W/SP&PL WASHER, (NKR 58) | ||
| 1 | I8-97300 789-3 | THERMOSTAT | 1 | 0702- | 4HG1-T | (C) 82 0 C ( NKR71 EURO 2 ) | ||
| 49 | I8-97147 001-2 | PIPE; WATER OUTLET | 1 | 9603-9607 | 4JB1 | NHR 55 | ||
| 14 | I9-09661 005-0 | PLUG; SW | 1 | 0702- | 4HG1-T | (B) NKR71 EURO 2 | ||
| 50 | I0-50540 825-0 | BOLT; OUTLET PIPE | 3 | 9312- | 4BE1 | M 8 X 25 W/SP & PL WASHER | ||
| 50 | I0-50640 830-0 | BOLT; OUTLET PIPE | 2 | 0702- | 4JB1-TC | (A) M8X30, NHR55,NKR55 EURO 2 | ||
| 1 | I8-97361 770-0 | THERMOSTAT | 1 | 9312- | 4JB1 | 82 0 C ( NHR 55 ) | ||
| 64 | I8-94176 031-0 | GASKET; OUTLAT PIPE TO HSG | 1 | 9312- | 4BE1 | NKR 58 | ||
| 2 | I8-97139 604-3 | HOUSING; THERMOSTAT | 1 | 0702- | 4JB1-TC | (B) NHR55, NKR55 EURO2 | ||
| 49 | I8-97121 586-0 | PIPE; WATER OUTLET | 1 | 9312- | 4HF1 | NKR 66 | ||
| 49 | I8-94254 601-1 | PIPE; WATER OUTLET | 1 | 9608- | 4JB1 | NHR 55 | ||
| 1 | I8-97300 792-2 | THERMOSTAT | 1 | 0011-0209 | 4HF1 | (B) 85 0 C ( NKR 66, NKR 66-2) | ||
| 50 | I0-28650 825-0 | BOLT; OUTLET PIPE | 2 | 0702- | 4HG1-T | (C) M8X25 NKR71 EURO 2 | ||
| 64 | I8-94365 674-2 | GASKET; OUTLAT PIPE TO HSG | 1 | 9312- | 4JB1 | NHR 55 | ||
| 1 | I8-94472 331-1 | THERMOSTAT | 1 | 9312-9410 | 4BE1 | 82 0 C ( NKR 58 ) | ||
| 49 | I8-97372 769-A | PIPE; WATER OUTLET | 1 | 9811-0407 | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 2 | I8-94403 314-2 | HOUSING; THERMOSTAT | 1 | 9312- | 4BE1 | NKR 58 | ||
| 50 | I1-09044 072-1 | BOLT; OUTLET PIPE | 2 | 9608- | 4HF1 | (A) M 8 X 65 FLANGE | ||
| 207 | I1-09630 082-0 | GASKET | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 58 | I8-97021 211-1 | PLUG; WATER OUTLAT PIPE | 2 | 0702- | 4HG1-T | M8X16 ( NKR71 EURO 2 ) | ||
| 216 | I8-97358 699-0 | PIPE ASM; WATER, TURBOCHARGER RET | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 66 | I8-97235 789-1 | GASKET; THERMOSTAT HSG | 1 | 9312- | 4BE1 | NKR 58 | ||
| 66 | I8-98280 281-0 | GASKET; THERMOSTAT HSG | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 2 | I8-97139 604-3 | HOUSING; THERMOSTAT | 1 | 9312- | 4JB1 | NHR 55 | ||
| 50 | I0-28050 870-0 | BOLT; OUTLET PIPE | 2 | 9312- | 4HF1 | (A) M 8 X 70 ( NKR 66 ) | ||
| 54 | I8-94130 076-0 | CLIP; THERMO SWITCH, OUTLAT PIPE | 1 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 | ||
| 1 | I8-97300 792-2 | THERMOSTAT | 1 | 0210- | 4HF1 | (B) 85 0 C ( NKR66, 66-2, 71 ) | ||
| 14 | I5-09605 005-0 | PLUG; SW | 2 | 9312- | 4JB1 | NHR 55 | ||
| 207 | I1-09630 082-0 | GASKET | 1 | 9811- | 4HF1 | ID=8.2 OD = 13.2 | ||
| 146 | I0-50540 816-0 | BOLT | 1 | 9312- | 4BE1 | M8X16 W/SP WASHER | ||
| 44 | I0-50641 030-0 | BOLT; HSG TO HD | 2 | 9312- | 4BE1 | M10X30 W/SP&PL WASHER, (NKR 58) | ||
| 14 | I5-09605 005-0 | PLUG; SW | 1 | 9312- | 4BE1 | NKR 58 | ||
| 1 | I8-94472 331-1 | THERMOSTAT | 1 | 9411- | 4BE1 | 82 0 C ( NKR 58 ) | ||
| 49 | I8-97034 445-0 | PIPE; WATER OUTLET | 1 | 9312-9602 | 4JB1 | NHR 55 | ||
| 58 | I8-97021 211-1 | PLUG; WATER OUTLAT PIPE | 2 | 9608- | 4HF1 | M8X16 (NKR 66, NKR 66-2, NKR 71) | ||
| 44 | I0-50540 830-0 | BOLT; HSG TO HD | 3 | 9312- | 4JB1 | M8X30 W/SP&PL WASHER, (NHR 55) | ||
| 49 | I5-86659 422-0 | PIPE; WATER OUTLET | 1 | 9312- | 4BE1 | NKR 58 | ||
| 14 | I5-09605 005-0 | PLUG; SW | 1 | 9312- | 4BE1 | NKR 58 | ||
| 15 | I8-97064 309-0 | PIPE; BYPASS | 1 | 9312-9412 | 4HF1 | NKR 66 | ||
| 66 | I8-97216 156-0 | GASKET; THERMOSTAT HSG | 1 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 | ||
| 66 | I8-97216 156-0 | GASKET; THERMOSTAT HSG | 1 | 9312-9902 | 4JB1 | NHR 55 | ||
| 54 | I8-94130 076-0 | CLIP; THERMO SWITCH, OUTLAT PIPE | 1 | 9312- | 4JB1 | NHR 55 | ||
| 66 | I8-97231 848-0 | GASKET; THERMOSTAT HSG | 1 | 9908-0010 | 4HF1 | NKR 66 | ||
| 64 | I8-94365 674-2 | GASKET; OUTLAT PIPE TO HSG | 1 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 | ||
| 1 | I8-94482 277-2 | THERMOSTAT | 1 | 0009- | 4JB1 | NHR 55 | ||
| 49 | I8-97204 199-0 | PIPE; WATER OUTLET | 1 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 |
