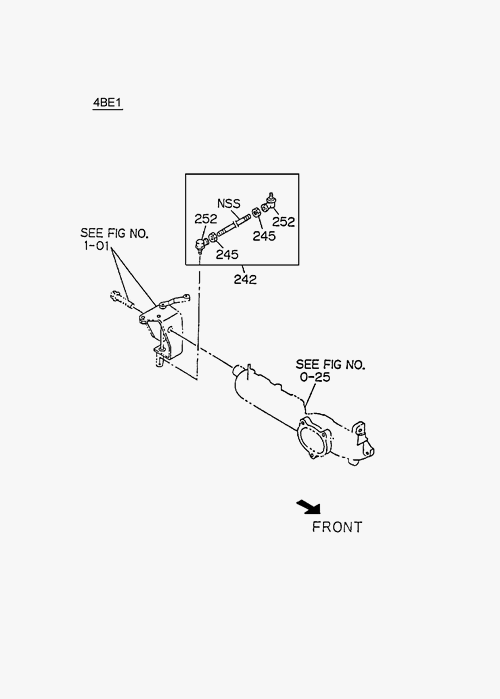

0-35 | ENGINE CONTROL VALVE AND LEVER
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 252 | I1-09760 003-0 | JOINT ASM BALL | 1 | 9312- | 4BE1 | RH THREAD ( NKR 58 ) | ||
| 252 | I1-09760 002-0 | JOINT ASM BALL | 1 | 9312- | 4BE1 | LH THREAD ( NKR 58 ) | ||
| 112 | I9-08112 010-0 | PIN SPLIT, LEVER | 1 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 | ||
| 25 | I8-97317 383-2 | BODY ASM THORTTLE | 1 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 | ||
| 174 | I0-50540 612-0 | BOLT CHAMBER | 2 | 9312- | 4JB1 | M 6 X 12 NHR55 | ||
| 111 | I8-94467 828-0 | WASHER SPLIT, PIN | 1 | 9312- | 4JB1 | NKR 66 | ||
| 245 | I1-09400 075-0 | NUT LINK | 1 | 9312- | 4BE1 | RH THREAD ( NKR 58 ) | ||
| 112 | I8-97079 213-0 | PIN SPLIT, LEVER | 1 | 9312-9510 | 4HF1 | NKR 66 | ||
| 184 | I8-97022 150-1 | PIN LEVER | 1 | 9312- | 4HF1 | NKR 66 | ||
| 112 | I9-08112 010-0 | PIN SPLIT, LEVER | 1 | 9312- | 4JB1 | NHR 55 | ||
| 110 | I8-97317 385-0 | CHAMBER ASM DIAPH | 1 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 | ||
| 174 | I0-50540 612-0 | BOLT CHAMBER | 2 | 0702- | 4JB1-TC | M 6 X 12 NHR/NKR55 E2 | ||
| 174 | I0-50540 612-0 | BOLT CHAMBER | 2 | 9312- | 4HF1 | M 6 X 12 NKR66 | ||
| 110 | I8-97096 809-0 | CHAMBER ASM DIAPH | 1 | 9511- | 4HF1 | NKR 66 | ||
| 25 | I8-97087 753-0 | BODY ASM THORTTLE | 1 | 9312- | 4JB1 | NHR 55 | ||
| 245 | I9-09840 277-0 | NUT LINK | 1 | 9312- | 4BE1 | LH THREAD ( NKR 58 ) | ||
| 21 | I8-97075 902-1 | VALVE ASM THROTTLE | 1 | 9312- | 4HF1 | NKR 66 | ||
| 21 | I8-97309 924-3 | VALVE ASM THROTTLE | 1 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 | ||
| 111 | I8-94467 828-0 | WASHER SPLIT, PIN | 1 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 | ||
| 242 | I8-94152 024-0 | LINK ASM | 1 | 9312- | 4BE1 | NKR 58 | ||
| 110 | I8-97096 809-0 | CHAMBER ASM DIAPH | 1 | 9312-9510 | 4JB1 | NKR 66 | ||
| 25 | I8-97087 753-0 | BODY ASM THORTTLE | 1 | 9312- | 4HF1 | NKR 66 |
